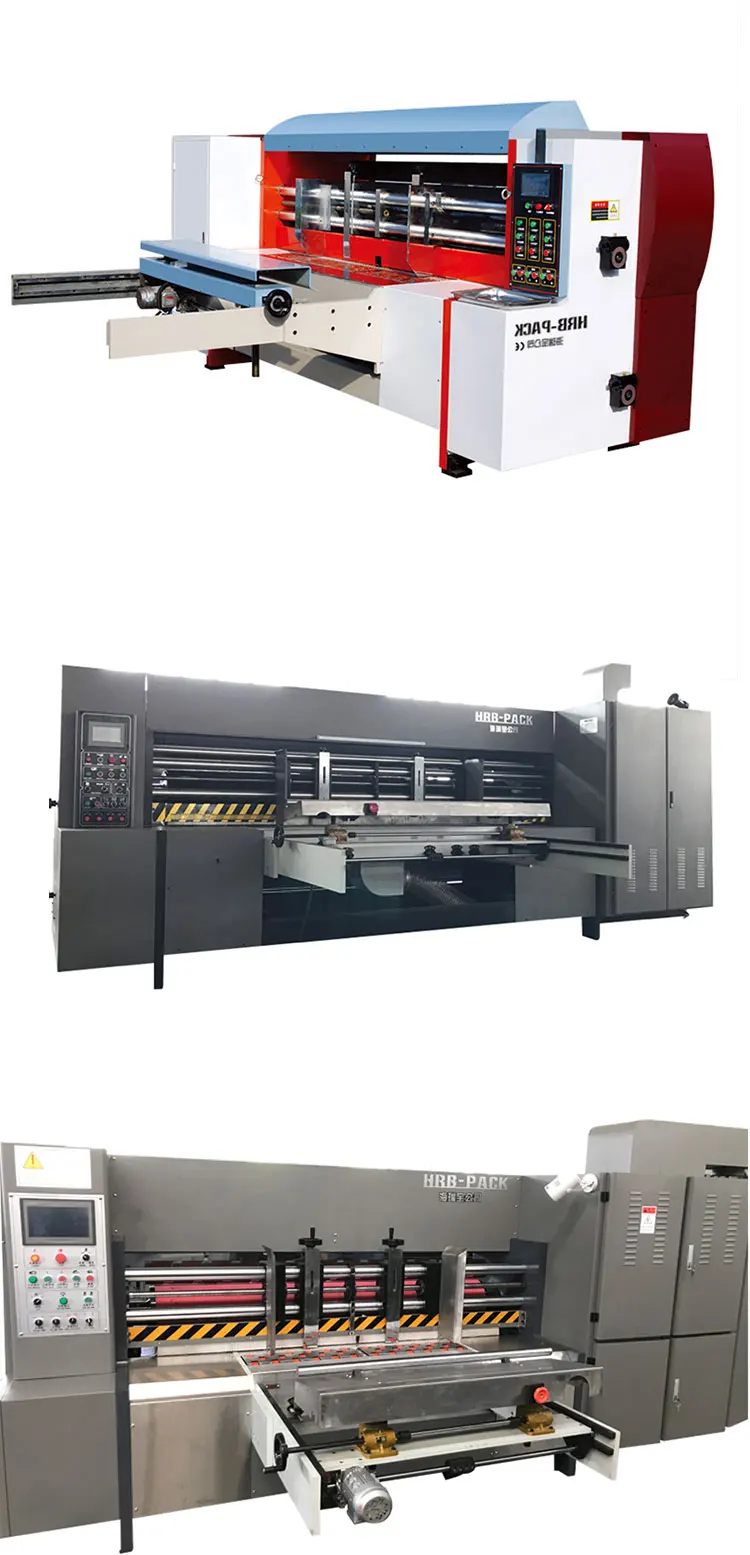

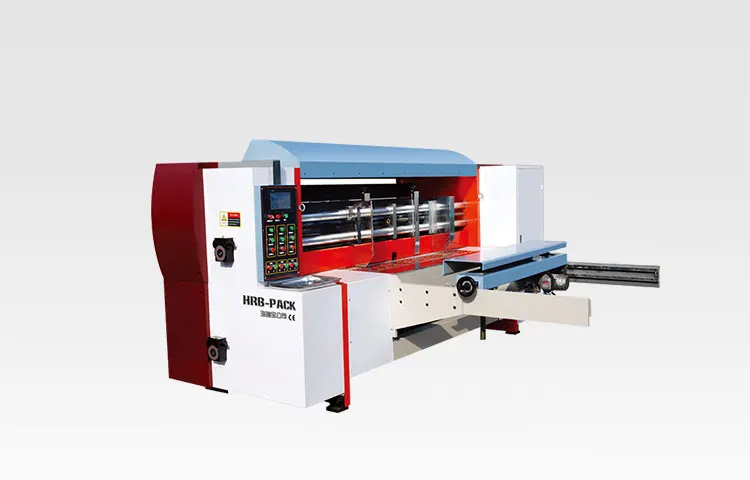

Help CenterLead Edge Feeding Corrugated Carton Printing Machine
Related Products
-
HRB High Speed Flexo Printing Slotting Die-cutting Machine With StackerUS$ 80000 - 90000MOQ: 1 Set -
HRB-920 HIGH DEFINATION PRINTING MACHINEUS$ 30000 - 90000MOQ: 1 Set
-
Fully Automatic Lead Edge Feeder Flexo Printer Slotter Die Cutter Gluer LineUS$ 295000 - 395000MOQ: 1 Set
-
Lead Edge Feeder Flexo Printer Die Cutter MachineUS$ 595000 - 605000MOQ: 1 Set
-
Fully Automatic Lead Edge Feeder Flexo Printing Slotting Die Cutting Machine With StackerUS$ 95000 - 100500MOQ: 1 Set
MODEL |
HRB-1424 |
ROLLER DIAMETER |
480MM |
MAX PAPER SIZE |
1400X2400 |
MIN PAPER SIZE |
350X350MM |
SPEED |
120PCS/MIN |
WEIGHT |
5000KG |

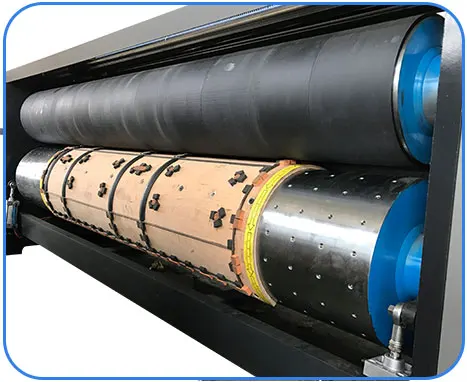

1.Die cutting roller for the high quality steel materials,30mm thickness, balance correction, hard-chrome
plating.
2. Wallboard for high-quality cast iron material,50mm thickness, and large processing center production.
3.Soft-roll automatic grinding institutions to pouches repeat usage,grinding3-4times;
4. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line.
5.Use Imported Polyurethane soft rubber, ease of installation, can cut 12000000 times.
6.Mechanical soft roll about 40 mm lateral movement ,the pads wear uniform.
7.40cr material the use of grinding gears for 6,low noise long life.
8.Die cutting roller cylinder automatic separation devices to reduce wear pouches.
Adsorption automatic feeder, one-slotting, Cut corner, creasing, drilling.Precision die cutting
from+0.75mm to-0.75mm.Phase planetary gear used electric adjustment, turn on and turn down
were quick adjustment.
Before manually adjust block cardboard side block electric adjustment.Paper rollers have a plastic face, to prevent cardboard, to increase feed accuracy.
Finished product dis
