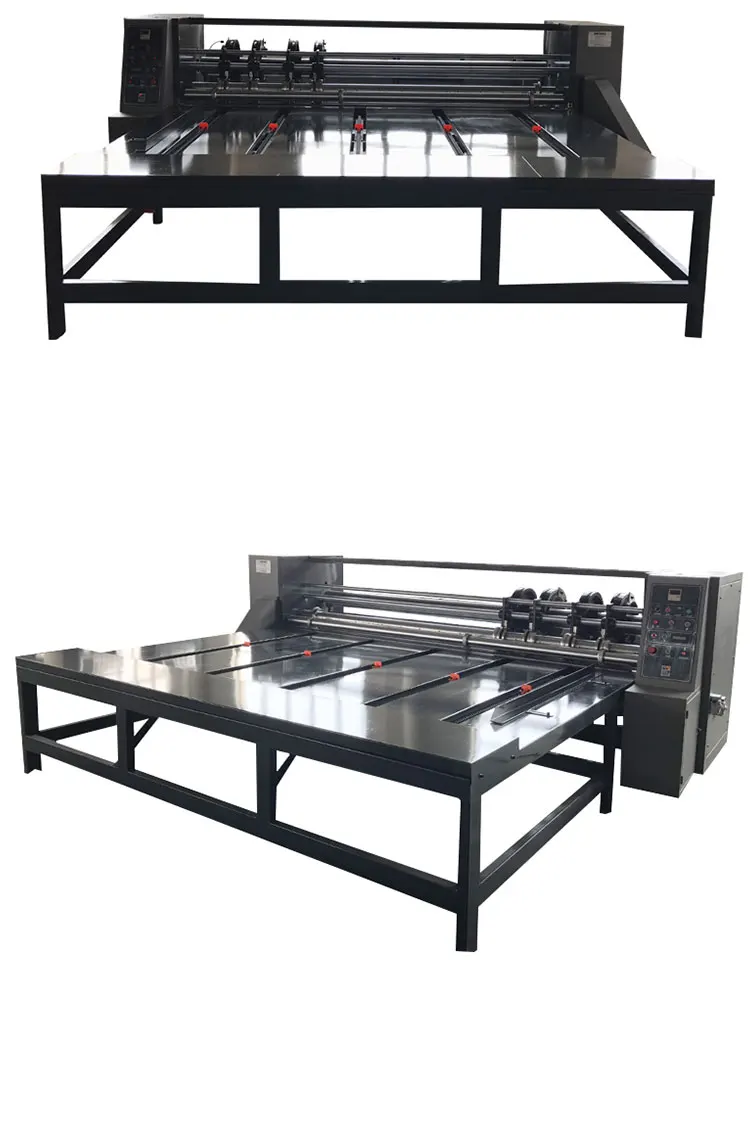

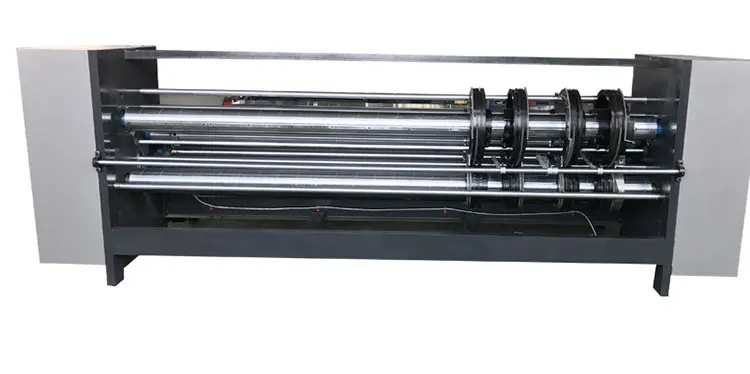

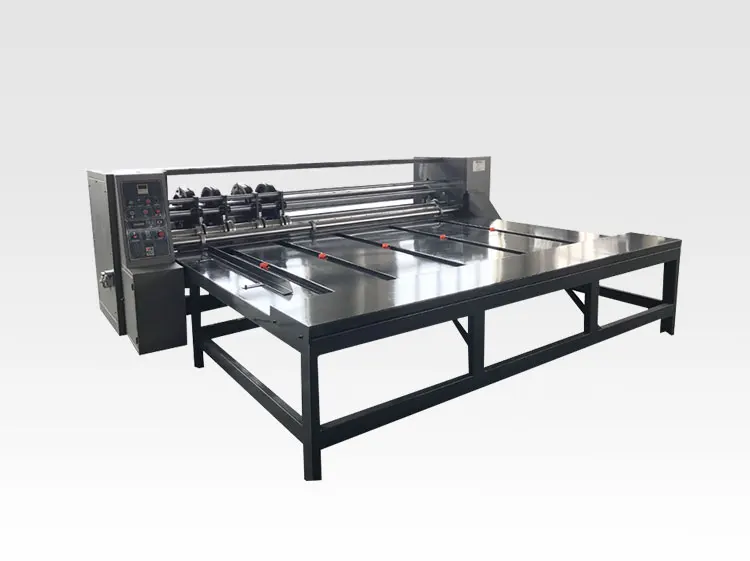

Help CenterRotary Chain Feeding Slotting Machine / Corrugated Cardboard Creasing Slotter Machine / Carton Box Making Machine
Related Products
-
Automatic Lead Edge Feeder Corrugated Carton Rotary Die Cutter Machine /Corrugated Cardboard Cutting MachineUS$ 21000 - 24500MOQ: 1 Set -
Color Box Printing Machine Fully Automatic Corrugated Box MachineUS$ 595000 - 605000MOQ: 1 Set
-
Computer Control High Speed Carton Box Flexo Die Cutter Printing MachineUS$ 95000 - 105000MOQ: 1 Set
-
Chain Feeding Carton Flexo Printing MachineUS$ 18000 - 22000MOQ: 1 Set
-
Lead Edge Feeding Corrugated Carton Printing MachineUS$ 21000 - 24500MOQ: 1 Set
Model |
HRB1425 |
Maximum speed |
60PCS/min |
Notching width |
45mm |
Slot width |
7.5mm |
Maximum feed size |
1400×2400mm |
Maximum groove depth |
300mm |
Minimum feed size |
650×350mm |
Main motor power |
4.0kw |
Weight |
4000kg |
Feeding table adopts chain style manual feeding paper.Slot blade phase adopts 360°electronic position and negative turn slightly adjust,blade axes treatedby rigidity chroming electroplate,and nicety grinding ,firmness durable .Gear lubricate ,adopt spout out style cys. Reduce noise,prolong gear using life .

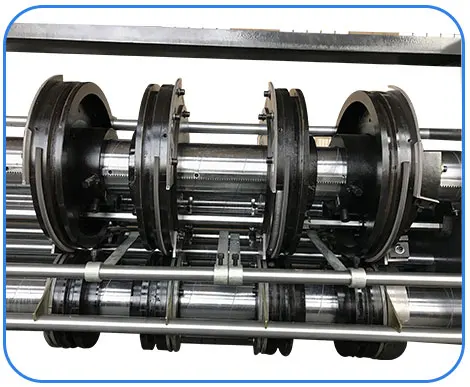

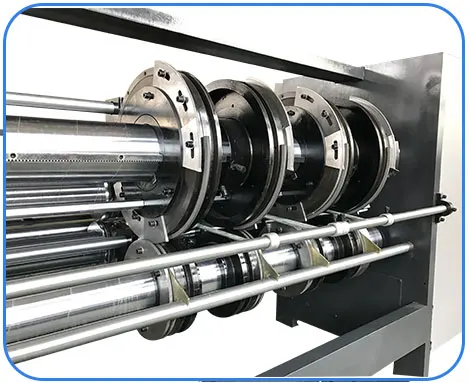

Transmit gear adopt no clearance coopperation ,debase gear dajust eorr. Gear adopt concentrate feed oil lubricate ,debase machine noise ,prolong the use-time.Slot reamer plate daopt four reamers synchronization,save exchange board time .360 degrees electric planet gear adjustment
phase ,speedness and nicety.
Adopt hackle blade .Can matched stiletto equipment . Blades and crease lines Combined moved left and right.
Finished product dis
