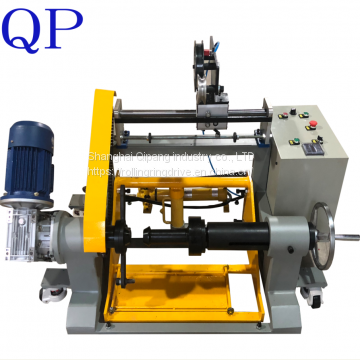

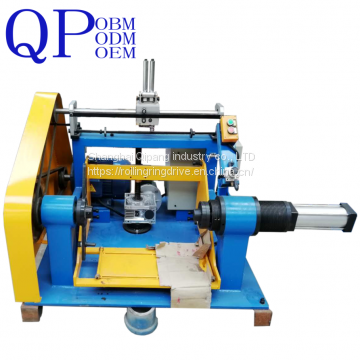

Help CenterΦ630-Φ1000mm Retractable Wire Machine Cable Wire Coiling Winding Machine
Related Products
-
Passive Pay-off Machine Cable Manufacturing Equipment Coiling Winding MachineUS$ 2000 - 3000MOQ: 1 Piece -
Take-up Part PND400-800mm Active Take-off (without Shaft) Take up Machine Cable Manufacturing EquipmentUS$ 2000 - 3000MOQ: 1 Piece
-
Release Part: PND1000- 1200mm Active Release Line (swing Arm Type) Winding Coiling MachineUS$ 1000 - 3000MOQ: 1 Piece
-
Two Machines and One Combination, Automatic Looping + Ring Micro-computer Automatic Winding and Packaging MachineUS$ 1500 - 5000MOQ: 1 Piece
-
Wire Take up Machine Cable Manufacturing EquipmentUS$ 2000 - 3000MOQ: 1 Piece
1、Φ630-Φ1000mm active pay-off machine
l Adapt to disk diameter: Φ630-Φ1000mm, Φ1000mm, coil width 475-750mm, inner hole 56/80
l Top shaft mode: no shaft top cone pneumatic top tight
l Release speed: MAX200 m / min
l Coil lift: 0.75KW electric screw lift
l Power: 4KW motor drive spool release line
l Brake: 10KG electromagnetic brake
l Maximum load capacity: 3000 kg

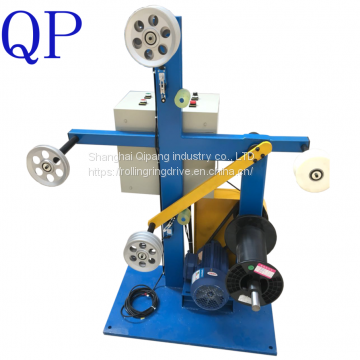

2、vertical tension storage rack
l total height of 2 meters;
l The storage line volume is 0-15 meters, and the storage line wheel is Φ400mm (4 groups + 3 groups);
l Adapt to the wire diameter: 0.5-10mm2 hard wire, Ф15mm soft wire;
l Guide wheel material: aluminum alloy material, surface hardening treatment;
l Control mode: The sensor gives a 0-10V voltage signal to control the speed of the line.
3、Metering device
l Form: one-way stop;
l The surface of the meter wheel and the pressure roller adopts a rubber wheel to ensure that the wire is not damaged.
4、400-630 shaft less take-up machine
l Adapted to disk diameter: PN400-PN630, coil width 280-475mm, coil diameter Φ56mm
l Applicable line speed: 200m/min
l Top shaft mode: no shaft top cone
l Coil lifting: electric screw lifts, the upper and lower limits are safe and reliable
l Cable: Φ30 polished rod cable, adjustable row spacing. Wire-receiving method: 10N.M torque motor wire
