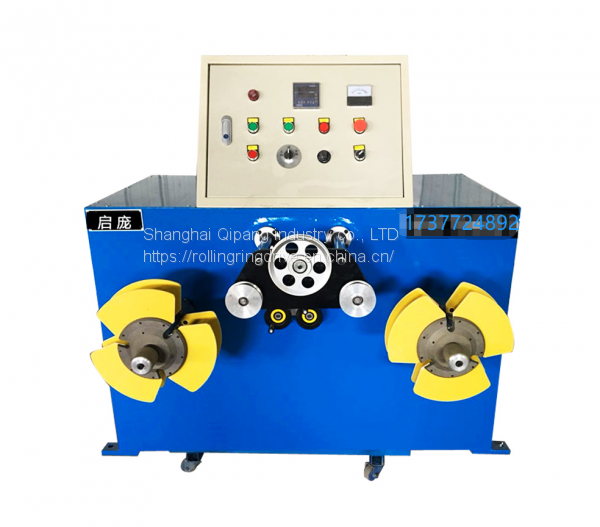

Take-up Part PND400-800mm Active Take-off (without Shaft) Take up Machine Cable Manufacturing Equipment

The difference between active payoff and passive payoff: active take-up has motor active feed line, passive pay-off is no motor pull by pull-up machine, speed is uncontrollable.

1. Applicable wire reel PND400- 600mm

2. Discharge method: active release

3. Chuck mode: no shaft thimble clamping

4. Lifting method: oil pressure lifting

5. Take-up motor: 4KW

6. Inverter power, 4KW

7. Line speed: 0-300 m / min

8. Storage line guide wheel outer diameter: 250mn (aluminum alloy made up to five down four)

9. Line type: vertical type

10. Braking method: pneumatic brake

11. Linkage with the customer's previous equipment

12. Machine color: sea blue + beige orange

Release part: PND1000- 1200mm active release line (swing arm type)

1. Applicable wire reel PND1000- 1250mm

2. Discharge method: active release

3. Chuck mode: no shaft thimble clamping

4. Lifting method: oil pressure lifting

5. Take-up motor: 5.5KW

6. Inverter power, 5.5KW

7. Line speed: 0-300 m / min

8. Storage line guide wheel outer diameter: 250mn (aluminum alloy made up to five down four)

9. Line type: vertical type

10. Braking method: pneumatic brake

11. Linkage with the customer's previous equipment

Release part: PND1000- 1200mm active release line (swing arm type)

1. Applicable wire reel PND1000- 1250mm

2. Discharge method: active release

3. Chuck mode: no shaft thimble clamping

4. Lifting method: oil pressure lifting

5. Take-up motor: 5.5KW

6. Inverter power, 5.5KW

7. Line speed: 0-300 m / min

8. Storage line guide wheel outer diameter: 250mn (aluminum alloy made up to five down four)

9. Line type: vertical type

10. Braking method: pneumatic brake

11. Linkage with the customer's previous equipment
