Application
This equipment is used for 0.5- -6mm² cable and small section cables’ circling and bundling
Main Features
1. Loading and unloading pay -off wheel by lever -type ,cantilever
combination guide wheel for, braking system with lever mechanism
2. With guide wheel and swell strength for automatically composing orderly and nice looking normally 30- -40 seconds per circle.
Easy bundling and take out,more efficiency
Technical Parameters:
Model |
A Type |
B Type |
Release form |
Electric or passive |
|
Release form |
≤630mm |
≤800mm |
Cable way |
Automatic cable |
Automatic cable |
Number of wire grooving |
3 groove |
3 groove |
Wire tie height |
30-100mm |
30-100mm |
Wire tie outer diameter |
≤310mm |
≤400mm |
Wire inner diameter |
φ115mm-φ120mm-φ125mm |
φ130mm- φ135mm- φ140mm--φ145mm |
Host revolutions |
0-500RPM/min |
0-360RPM/min |
monitor rate |
2.2KW |
4KW |
Production per shift |
700 t / 8 hours |
400 t / 8 hours |
Loop diameter |
BV、BVV、RV：0.3 RVV,RVVP: ＜8mm SYV75-3, SYV75-5 Coaxial |
BV、BVV、RV：1-25㎡ RVV,RVVP: ＜12mm SYV75-5, SYV75-9 Coaxial |
Meter counter |
Electronic high precision (adjustable length of meters) |
Electronic high precision (adjustable length of meters) |
Upper plate device |
Lever type |
Lever type |
Mounting Method:
Steps ：Unlocking handle-carry down bearing-fix continuity - rising cable wheel-lock handle . The design aims to improve the security of heavy wheel in high-speed running.

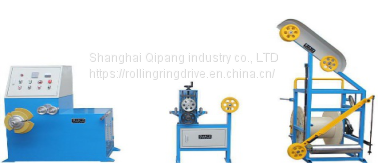

Components of the equipment
1.Storage line tension pay- -off shelve With lever for rising/downing the wheel,it is more efficiency,Tension is invariable ,angle of rocker arm shaft drive the braking lever;
2.Electronic meter counter point sample is installed on the wheel of meter counter;
3.Initiative Wheeled Cable Drum Shelve The speed of circling is controlled by frequency conversion ; the length of circling can be preset by meter counter,The equipment will be stopped after the preset length reached.
