Automatic Pastry Sheet Wrapper Injera Making Spring Roll Machine
Tina's Whatsapp: 008618539906538 Skype: logang86 Email: vip@
Spring Roll Machine Brief introduction
This spring roll sheet making production line machine composed of mixer, automatic batter feeding part, heating&shaping cylinder, cutter, conveying & cooling part and sheet stacking parts, 6QP series spring roll sheet machines can make injeras in either round or rectangular shapes.
Model 3620-S and 5029S are very proper for small food store, hotels and restaurants, model 8045-S, 12060-S and 12060II-S are widely be used in restaurants and food factories.
Main parts:
1. Mixing System
2. Paste Feeding System
3. Mainframe
4. Heating Chunking
5. Cutting Parts
6. Conveying Parts
7. Cooling System
8. Sheet Stacking System
Feature of Spring Roll Making Machine:
The thickness of the dough skin and the quality of the stuffing can be adjusted. Its material is Stainless steel. Lose face and molded parts use Teflon anti-adhesion technology, small resistance, good shape, easy to clean. The machine can be customized according to the requirements of the users.
Technical parameter:
Model |
GGD-3620 |
GGD-5029 |
GGD-8045 |
GG-12060 |
GG-12060-II |
Dia. of heating Cylinder |
360mm |
500mm |
800mm |
1200mm |
1200mm |
Size of machine |
4.3*0.8*1.35m |
4.7*0.95*1.58m |
5.2*1*1.5m |
6.2*1.15*2m |
6.2*2.4*2.5m |
Electric Power |
6.0KW or gas |
13.2KW or gas 13.5kw |
38kw or gas |
59kw or gas |
100kw or gas |
Host Power |
0.75KW |
0.75KW |
0.75KW |
0.75KW |
1.5KW |
Power Cutter |
0.55kw |
0.55KW |
0.55KW |
0.55KW |
1.1KW |
Belt Power |
0.18kw |
0.55KW |
0.55KW |
0.55KW |
1.1KW |
N. W. |
320kg |
800kg |
1000Kg |
1200Kg |
2500Kg |
Size of the sheet ( mm Max.) |
round: 180 rectangular:200 |
round: 280 rectangular:290 |
round: 430 rectangular:450 |
round: 500 rectangular:520 |
round: 500 rectangular:520 |
Thickness of the sheet |
0.3-1.0mm |
0.3-1.0mm |
0.3-1.0mm |
0.3-1.0mm |
0.3-1.0mm |
|
Production capacity (pcs/h) |
500-1000 |
1000-1600 |
3500 |
4500-7000 |
7000-15000 |

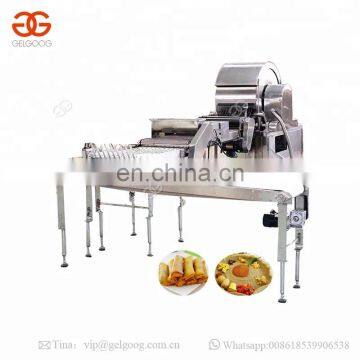

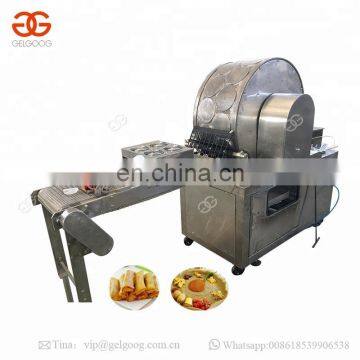

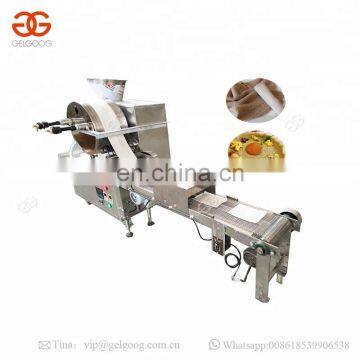

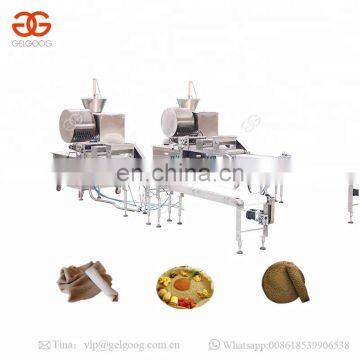

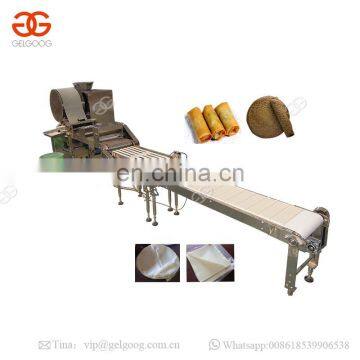

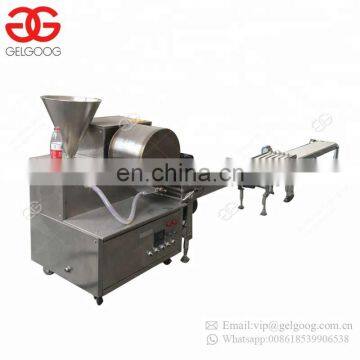

More Spring Roll Machine Pictures:
If You want to know more our spring roll shett making machine, you can click here to send us inquiry,
1.What kinds of heating methods?
Re: Electric heating and gas heating, a device can only choose a heating method, the same price
2, can one machine do different sizes?
Re: if machine produce round pastry sheet, can only do a size, if produce square shape, length can be freely adjusted, width of different needs To change the nozzle
3,can the thickness be adjusted?
Re: (1) through the formulation of the paste adjustment (add water)
(2)Adjust the speed of the drum
4, can the temperature be adjusted? And General what is the suitable heating temperature ?
Re: Temperature can be adjust. According to the thickness of the dough, drum speed is different, temperature settings are also different. General between 110-140 C
5, what is the material of the equipment?
Re: The rollers are alloy, the conveyor belts are Teflon, the others are 304 stainless steel
6, Can the drum speed and conveyor speed be adjusted ?
Re:The speed of the drum and two conveyor belts can be adjusted.
Tina's Whatsapp: 0086 185 3990 6538
Skype: logang86
Email: vip@
If you are interested in our machine, pls kindly contact with me freely.
