High tensile fixed knot woven cattle wire fencing
Description

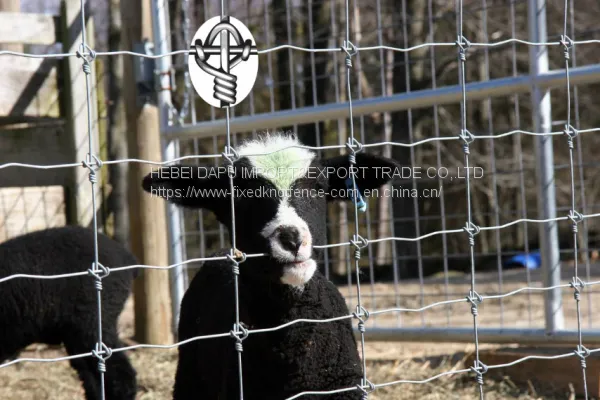

Fixed Knot Fence, also called deer fence, is specifically designed for livestock control, Pasture, cross & fence. Respect to widely use, Fixed Knot Fence is used for livestock, farm isolation, airport, residence security, etc. In terms of animal fence, Fixed Knot Fence can be use for fence of dog, cattle, deer, goat, hog, horse, etc.
1.Materials: High-strength galvanized iron wire; High-strength zinc plated steel
2.Surface treatment:
Class A: Electro galvanized fixed knot joint fencing(zinc coated:15g/m²)
Class B: Hot dipped galvanized fixed knot joint fencing(zinc coated:30-50g/m²)
Class C: Heavy hot dipped galvanized fixed knot joint fencing(zinc coated:220-280g/m²)
3.Technical parameters:
Wire diameter and tensile strength:
horizontal wires: diameter 2.5 mm, tensile strength 1100-1300N/mm²
vertical wires: diameter 2.5 mm, tensile strength 600-850N/mm²
knot wires: diameter 2.2 mm, tensile strength 400-525N/mm²
Specification
| TYPE | Line wire | Fence height | Stay wire spacing | Roll weight | Common use |
| 735-6-330' | 7 | 35" | 6" | 141lbs | hog |
| 842-6-330' | 8 | 42" | 6" | 157lbs | Cattle hog |
| 842-12-330' | 8 | 42" | 12" | 110lbs | Sheep goat cattle |
| 842-12-660' | 8 | 42" | 12" | 220lbs | Sheep goat cattle |
| 949-6-330' | 9 | 49" | 6" | 182lbs | Hog cattle |
| 949-12-660' | 9 | 49" | 12" | 257LBS | Sheep goat cattle |
| 1348-6-330' | 13 | 48" | 6" | 234LBS | Hog cattle |
| 1348-12-330' | 13 | 48" | 12" | 168lbs | Hog Sheep goat cattle |
| 1348-12-660' | 13 | 48" | 12" | 336lbs | Hog Sheep goat cattle |
| 1561-3-200' | 15 | 61" | 3" | 280lbs | Hog Sheep goat horse |
| 1348-3-200' | 13 | 48" | 3" | 233lbs | Hog Sheep goat horse |
| 1561-6-330' | 15 | 61" | 6" | 279lbs | Cattle hog |
| 2096-6-330' | 20 | 96" | 6" | 396lbs | deer |
| 2096-12-330' | 20 | 96" | 12" | 282lbs | deer |
| 2096-3-165' | 20 | 96" | 3" | 340lbs | Deer cattle hog |
For example, 735-6-330' has 7 line wires, is 35 inches tall, has 6 inch spacing between the vertical stay wires, and is 330 feet long.
Advantage
* Stronger than hinged joint or barbed wire fence.
* Fixed Knot 3 times longer than traditional hinged joint.
* Fixed Knot wire remain tighter and won't lose its shape.
* Absorb impact and maintains its tension even during severe temperature and climate changes.
* Compares to barbed wire, Fixed Knot Fence uses 40% less posts, less labor and is easier to install.
* Does not sag or squash down like traditional hinged joint.
* Cattle are unable to put their head through this Fixed Knot fence.
* Less damage to the animal's body.
* Superior design means that Fixed Knot Fence maintenance is negligible.
Application
Our company
FAQ
1.Can I customize the products?
Yes, as long as provide specifications, drawings, can do what you want products.
2.Can you supply sample for me to check?
Yes, we will provide sample for free.
3.How about the payment terms?
T/T ( with 30% deposit ) , L/C at sight. Western Union. Paypal .
4.Are you a manufacturer?
Yes, we are a more than 25 years factory specialized in farm wire fencing.
5.How about the delivery time if we order from you?
Generally, it will take about 20 days after receiving your advance payment. It also decided by your total quantity.
6. Where are you? Can I visit you?
Sure, we are in Shijiazhuang city, Hebei Province, 280km distance to Beijing. There are many flights from Shanghai, Guangzhou to our city. Please contact us to make an appointment.
