High Tensile Fixed Knot Cattle Fence
Description

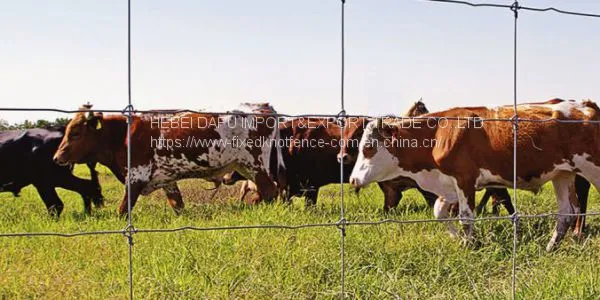

Cattle fence is an animal husbandry fence widely used in grassland areas to protect ecological balance and captive cattle. It is exquisite in appearance, durable and inexpensive. It has been widely used in roads and other engineering protection at home and abroad in recent years.
1.Materials: High-strength galvanized iron wire; High-strength zinc plated steel
2.Surface treatment:
Class A: Electro galvanized fixed knot joint fencing(zinc coated:15g/m²)
Class B: Hot dipped galvanized fixed knot joint fencing(zinc coated:30-50g/m²)
Class C: Heavy hot dipped galvanized fixed knot joint fencing(zinc coated:220-280g/m²)
3.Technical parameters:
Wire diameter and tensile strength:
horizontal wires: diameter 2.5 mm, tensile strength 1100-1300N/mm²
vertical wires: diameter 2.5 mm, tensile strength 600-850N/mm²
knot wires: diameter 2.2 mm, tensile strength 400-525N/mm²
Specification
| TYPE | Line wire | Fence height | Stay wire spacing | Roll weight | Common use |
| 735-6-330' | 7 | 35" | 6" | 141lbs | hog |
| 842-6-330' | 8 | 42" | 6" | 157lbs | Cattle hog |
| 842-12-330' | 8 | 42" | 12" | 110lbs | Sheep goat cattle |
| 842-12-660' | 8 | 42" | 12" | 220lbs | Sheep goat cattle |
| 949-6-330' | 9 | 49" | 6" | 182lbs | Hog cattle |
| 949-12-660' | 9 | 49" | 12" | 257LBS | Sheep goat cattle |
| 1348-6-330' | 13 | 48" | 6" | 234LBS | Hog cattle |
| 1348-12-330' | 13 | 48" | 12" | 168lbs | Hog Sheep goat cattle |
| 1348-12-660' | 13 | 48" | 12" | 336lbs | Hog Sheep goat cattle |
| 1561-3-200' | 15 | 61" | 3" | 280lbs | Hog Sheep goat horse |
| 1348-3-200' | 13 | 48" | 3" | 233lbs | Hog Sheep goat horse |
| 1561-6-330' | 15 | 61" | 6" | 279lbs | Cattle hog |
| 2096-6-330' | 20 | 96" | 6" | 396lbs | deer |
| 2096-12-330' | 20 | 96" | 12" | 282lbs | deer |
| 2096-3-165' | 20 | 96" | 3" | 340lbs | Deer cattle hog |
For example, 735-6-330' has 7 line wires, is 35 inches tall, has 6 inch spacing between the vertical stay wires, and is 330 feet long.
Advantage
*The cattle fence has a perfect fixed section design, strong and precise, smooth mesh surface, uniform mesh, high toughness, no close together, windproof, pressure resistant, non-slip, and rainproof.
*No matter how bad the local natural conditions, the service life is generally decades. Even if it is partially cut, the partial pressure is not subject to loose deformation, and it has strong anti-corrosion and anti-oxidation ability, and has the advantages that the general steel mesh does not have.
*Moreover, it also overcomes the shortcomings of easy welding and soldering of the welded joint of the welded wire mesh, and the one-time installation is never loose.
Application
Our Company
FAQ
1.Can I customize the products?
Yes, as long as provide specifications, drawings, can do what you want products.
2.Can you supply sample for me to check?
Yes, we will provide sample for free.
3.How about the payment terms?
T/T ( with 30% deposit ) , L/C at sight. Western Union. Paypal .
4.Are you a manufacturer?
Yes, we are a more than 25 years factory specialized in farm wire fencing.
5.How about the delivery time if we order from you?
Generally, it will take about 20 days after receiving your advance payment. It also decided by your total quantity.
6. Where are you? Can I visit you?
Sure, we are in Shijiazhuang city, Hebei Province, 280km distance to Beijing. There are many flights from Shanghai, Guangzhou to our city. Please contact us to make an appointment.
