Potato pulping machine line/Spiral cleaning feeding machine

Potato pulping machine line/Spiral cleaning feeding machine

The characteristics of multi-functional automatic feeding and washing machine are spiral propulsion, turbine speed regulation and rotating water spray. The fresh potato moves round the cylinder wall on the one hand. On the one hand, it moves along the axis in a straight line, which lengthens the cleaning distance, and the freshness and freshness of fresh potatoes are high, and it can be partially skinned. Sediment, stone and skin slag are automatically discharged through the gate slit and the outlet of the bottom of the shell. It also has the function of cleaning and conveying, reducing the height of the artificial material, making the material more convenient and relieving the manual labor. It is suitable for the cleaning of sweet potato, potato, cassava, banana lotus root, taro, Ge Gen and so on.

The machine is equipped with 3 kW motor, can clean the sweet potato, potato, cassava, Ge Gen, sweet potato, radish and other potato. The cleaning amount is 2-3 tons per hour, the cleanliness is over 95%, the red skin is removed more than 70%, and the white sweet potato is formed. The machine is used to clean the material for one time, with less personnel, low labor intensity, simple structure and easy maintenance, and it is a supporting product of slurry separator. It also has good stability and low noise. Save the material, can finish cleaning at once, the feature of automatic feeding.

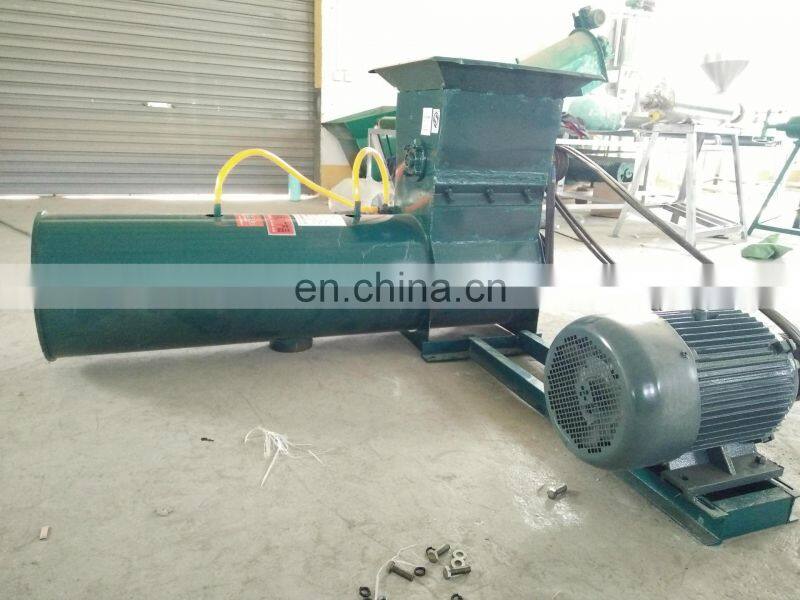

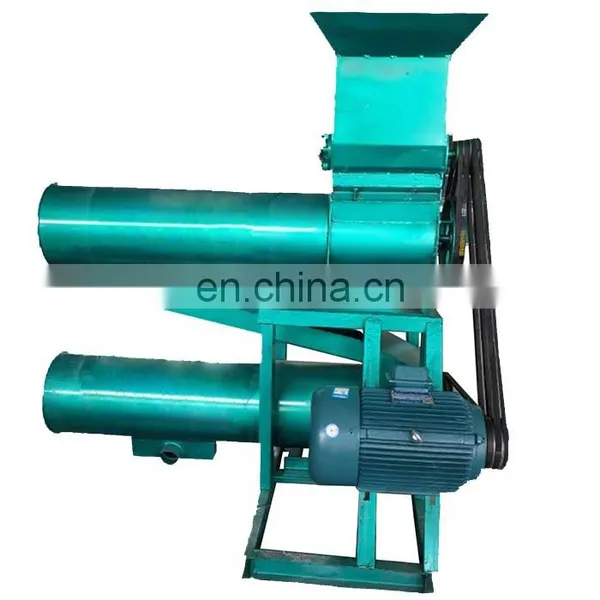

Pulping machine, pulp slag separator

The starch material is sent into the feed mouth and is crushed into filamentous shape under the action of the spiny roll and is taken into the cone grinding seat. Driven by the helix shaft, it is squeezed into the narrow gap formed by the inner shell of the cone, and the material is further extruded, comminuted and lapping under the rotation of the inner shell of the conical mill, so that the starch is dissociated from the fiber. After being grinded, the material is squeezed into the separating cylinder and mixed with water under the action of the stirring shaft. The free starch is dissolved into the water and discharged through the separation sieve, and it is collected and ready for use. The remaining residue is pushed out of the separation cylinder outside the propelling shaft.

Technical data of Potato starch making machine

Potato starch making machine
