Description
Mini air differential pressure gauge used to measure fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice plate differential pressure, bubbles water level and liquid amplifier or hydraulic system pressure. It using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential. No wear, hysteresis and clearance. Not filling, vaporization and freezing. This design has anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision. The design impact, shock and overload protection.

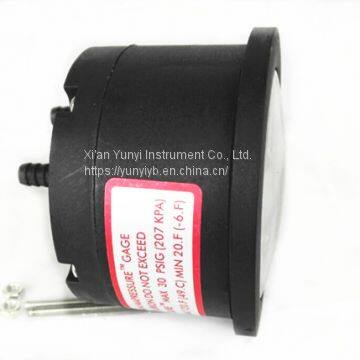

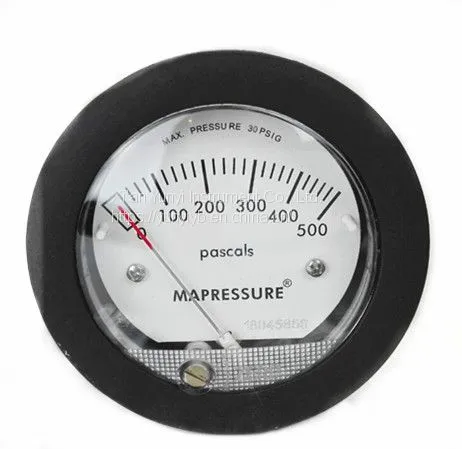

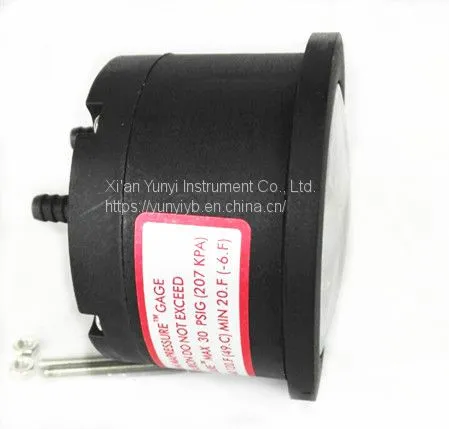

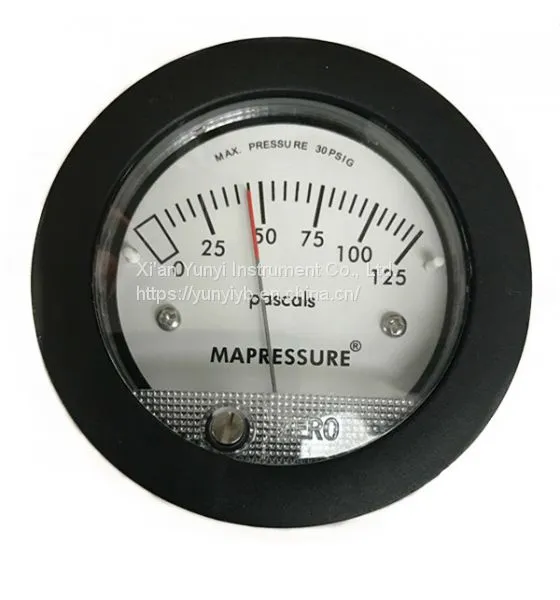

Detailed Images
Specification
1 Medium: air and non-combustible, compatible gases (optional gas)
2 Ambient temperature: -70 ~ 60 ℃
3 Rated pressure: -68 ~ 103KPa
4 Overvoltage: about 172KPa overvoltage when the rubber stopper has been rushed to open.
5 Housing material: die cast aluminum, aluminum body and chrome parts after 168 hours salt
bath test, the external final coating of dark gray
6 Accuracy: at 21 ℃ for ± 2% FS (- 125PA; 250PA type is 2%, - 60PA, type 2%)
7 Hole: size114mm ,cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test
8 Weight: 500g / only
9 Connections: same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back
Selection Guide
0 – 30Pa |
0 – 400Pa |
0 – 2.5KPa |
0 – 30KPa |
0 – 60Pa |
0 – 500Pa |
0 – 3.0KPa |
-15~0~15Pa |
0 – 100Pa |
0 – 600Pa |
0 – 5.0KPa |
-30~0~30Pa |
0 – 125Pa |
0 – 750Pa |
0 – 8.0KPa |
-60~0~60Pa |
0 – 200Pa |
0 – 800Pa |
0 – 10KPa |
-125~0~125Pa |
0 – 250Pa |
0 – 1KPa |
0 – 15KPa |
-250~0~250Pa |
0 – 300Pa |
0 – 2KPa |
0 – 25KPa |
-500~0~500Pa |
customizable |
-1~0~1KPa |
-3~0~3KPa |
-5~0~5KPa |
-2~0~2KPa |
-4~0~4KPa |
-10~0~10KPa |
