Description

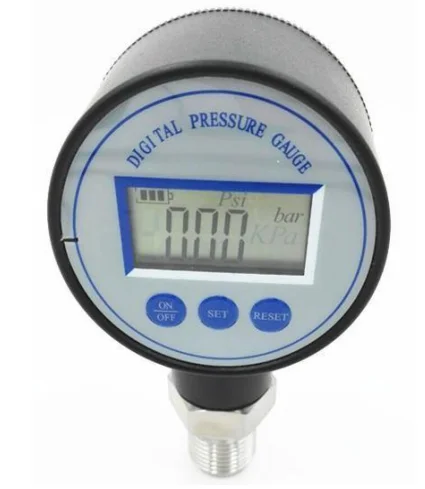

YK-60 digital pressure gauge with high reliability and stability, the use of ASIC (application-specific integrated circuit) design. The structure uses a micro-design silicon pressure sensor (MEMS), the use of stainless steel isolation media. There are no moving parts to ensure long life.
18 mm (0.71 ") High LCD digital display eliminates errors due to guessing. YK-2002 series adjustment Zero display is very simple, just press a button. Once the power is turned on, the pressure reading can be continuously displayed 1-15 Minute (optional), and then automatically shut down the function will automatically cut off the pressure gauge, saving battery life.
Detailed Images
Specification
1 Measuring range: 100KPa1KPa ~; 260MP
2 Output signals: RS485, RS232, ACI wireless communications,4 ~ 20mA, etc.
3 Accuracy class: 0.05, 0.1, 0.2, 0.4
4 Display: 5 digit dynamic display + Analog bargraph
5 Overload pressure range 1.5-3-fold, depending on the measurement range
6 Close current: less than 10 microamps
7 Power supply: 3.6V high-energy lithium battery life 2-3 years or rechargeable batteries
8 Medium temperature: -40 °C ~ 90 °C
9 Process connection: M20 × 1.5 (external thread)
Features
1 Micro-power, high accuracy, high-definition digital LCD six;
2 Small size, simple operation, easy field calibration pressure gauges and precision pressure measurement using;
3 Intelligent calibration, linear repair, two seconds and zero magnetic induction pen
4 LCD display with dynamic pressure, visual display percentages pressure
5 Pressure unit: mmH2O mmHg psi kPa MPa Pa mbar bar pressure up to ten units (optional)
6 Dynamic pressure measurement can be displayed online curve, the peak record function (optional);
7 A variety of additional features. If RS485 interface output, 4-20mA output, data output USB interface instant messaging, storage function (optional)
Applications
1. Check the general pressure gauge
2. Check the precision pressure gauge
3. Check sphygmomanometer, other pressure meter
4. Measuring precision pressure
