Description

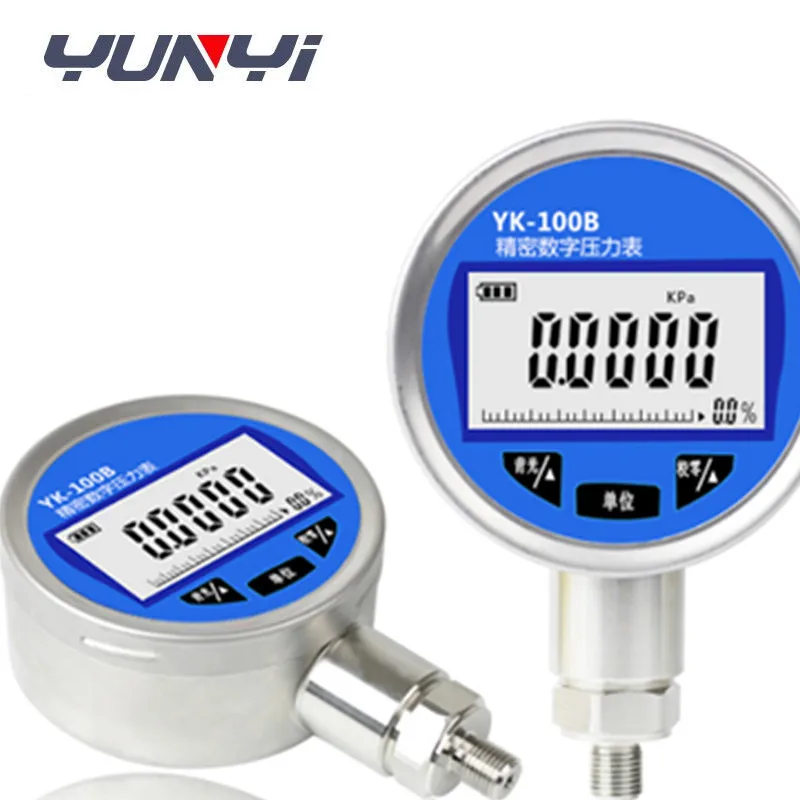

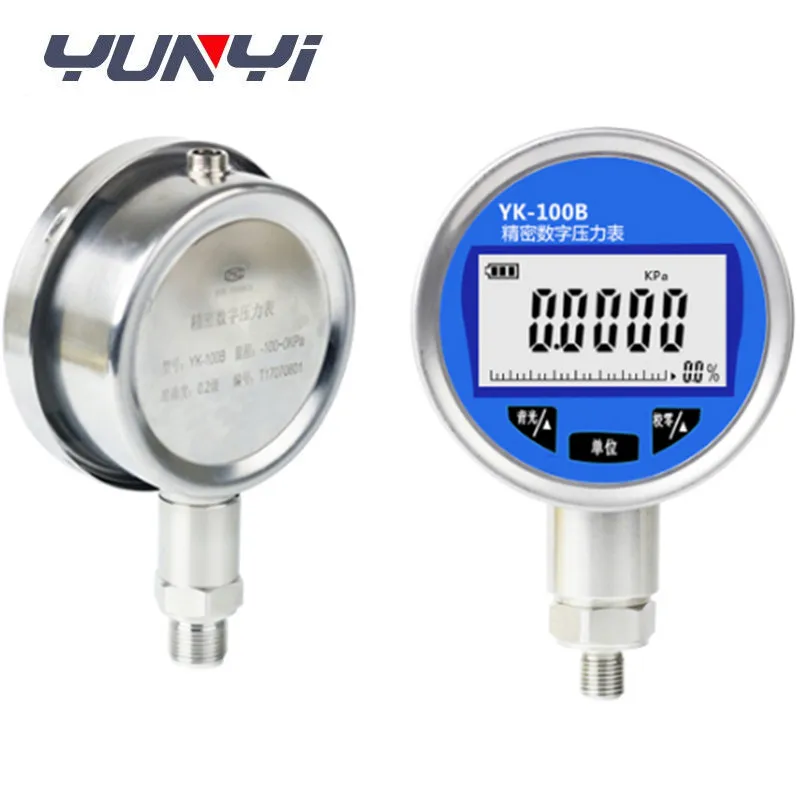

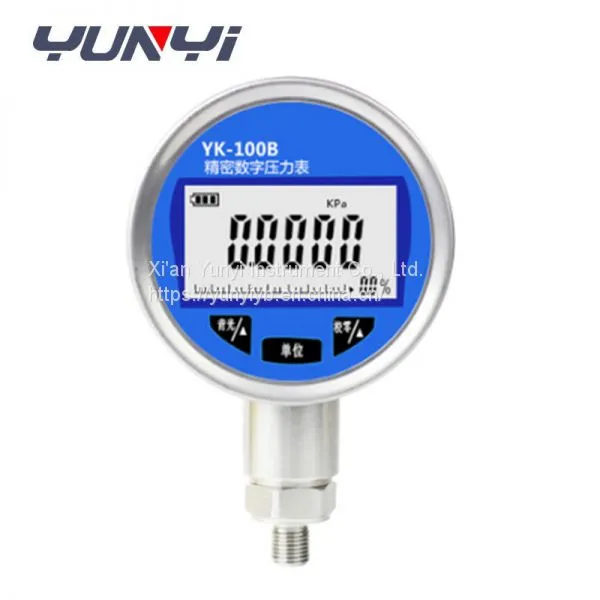

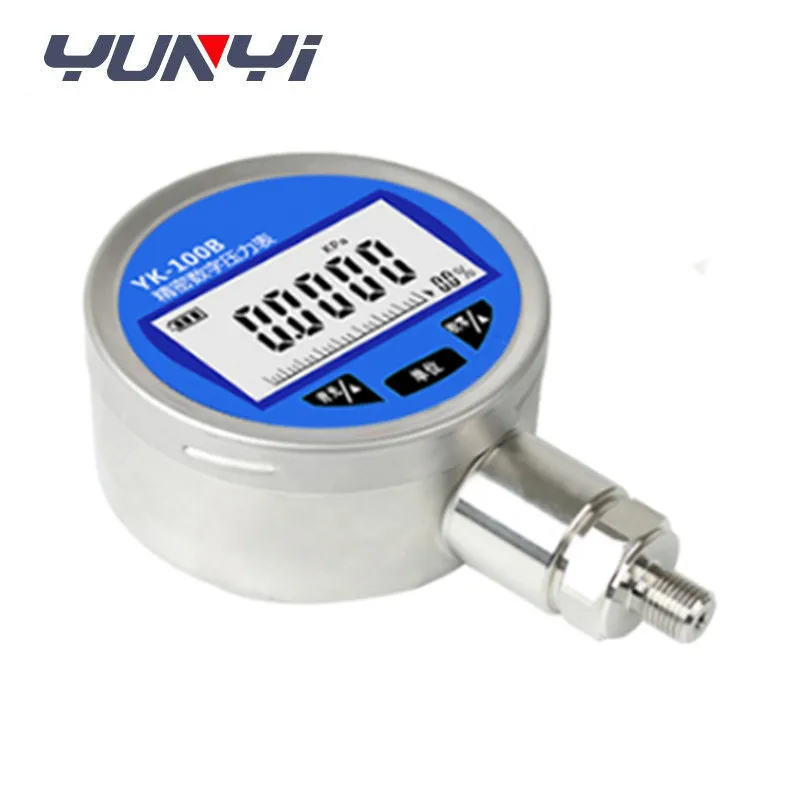

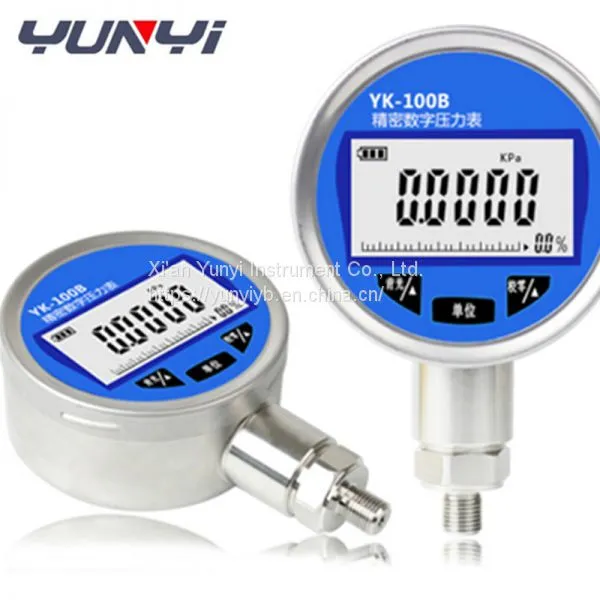

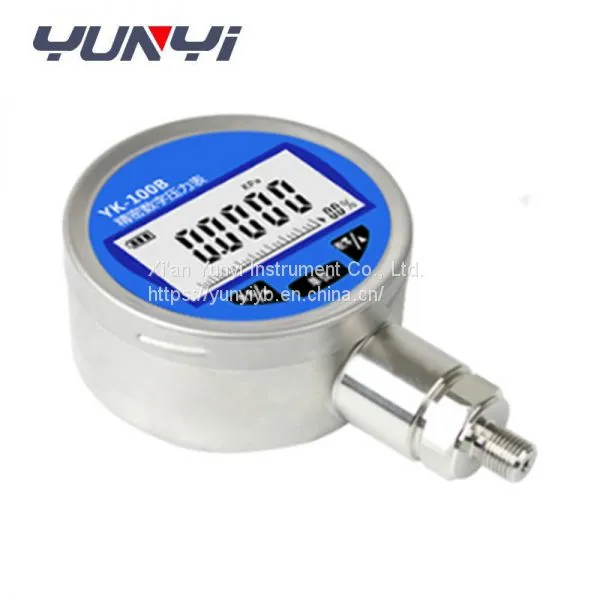

YK100B Communication digital pressure gauge, is my company's new micro-power smart products. It uses advanced micro-power devices and unique software processing technology, can be truly continuous measurement of pressure values. Built-in battery 24 hours of continuous work 24 hours more than 3 years; it uses large-screen segment code wide viewing angle LCD display, the reading is very eye-catching, intuitive. The product has been manufactured under the conditions of high and low temperature aging, stress aging and temperature compensation, ensuring the accuracy of products even in the (0 ~ 50) ℃ range, within one year, with 99% confidence probability . It is mainly used to check the pressure (differential pressure) transmitters, precision pressure gauges, general pressure gauges, sphygmomanometers and other pressure instruments, but also can be widely used in precision measurement of pressure occasions. It is a pointer precision pressure gauge replacement products.
Detailed Images
Specification
Use environment
a, Temperature: (0 ~ 50) ℃ to ensure accuracy of the operating temperature range)
b, Relative humidity:
Technical Parameters
Pressure range: -100kPa ~ 2kPa ~ 250MPa (can be customized)
Accuracy: ± 0.25% F.S; ± 0.16% F.S; ± 0.1% F.S; ± 0.05% F.S
Overall dimensions and weight
Overall dimensions: φ 100mm × 34mm;
Weight: 0.5kg
485 digital pressure gauge
Dual power supply built-in lithium battery can be used as a digital pressure gauge
External power supply activation 485 communication port, real-time data transmission (9V power adapter and 24V optional)
Record data at the same time
Features
1 Micro-power, high accuracy, high-definition digital LCD six;
2 Small size, simple operation, easy field calibration pressure gauges and precision pressure measurement using;
3 Intelligent calibration, linear repair, two seconds and zero magnetic induction pen
4 LCD display with dynamic pressure, visual display percentages pressure
5 Pressure unit: mmH2O mmHg psi kPa MPa Pa mbar bar pressure up to ten units (optional)
6 Dynamic pressure measurement can be displayed online curve, the peak record function (optional);
7 A variety of additional features. If RS485 interface output, 4-20mA output, data output USB interface instant messaging, storage function (optional)
Applications
YK-100B Communication digital pressure gauge uses advanced micro-power devices and unique software processing technology, can be truly continuous measurement of pressure values, it is mainly used to verify the pressure (differential pressure) transmitter, precision manometer, sphygmomanometer, etc. Pressure instrumentation.
