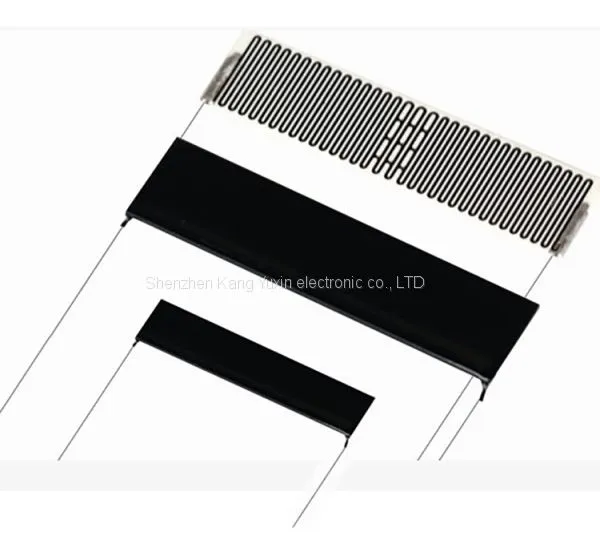

High Ohm Resistor for Microphone,No Sense, High Precision, Wide Resistance Range

FOB Price

US$ 0.1 - 3.0 / Piece

100 Pieces(Min. Order)

Port shenzhen/
Payment TermsT/T L/C
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KYX	Place of Origin	China
Model Number	RI80F	Type	Fixed Resistor
Rated Power	0.5W~500W	Operating Temperature	±200PPM
Package Type	Throught Hole	Resistance Tolerance	±10 ±5% ±2% ±1% ±0.1%
Resistance	10KR~10GR	Technology	Thick Film
Temperature Coefficient	±400PPM/℃ MAX

Product Description

Key Specifications/SpecialFeatures:
Style:_{^{flat high ohm and voltage resistor}}
Resistance Range:1K-10t
Tolerance:10% 5% 1%

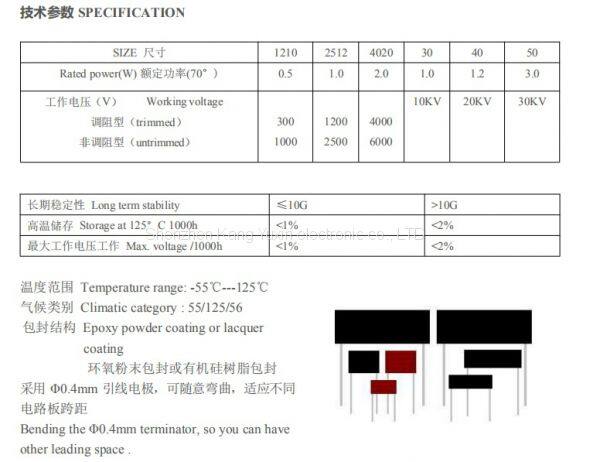

Temperature range: -55℃---125℃
Climatic category : 55/125/56
TCR as low as ±25ppm/℃
Epoxy powder coating or lacquercoating:
Bending the Φ0.4mm terminator, so you can have other leading space

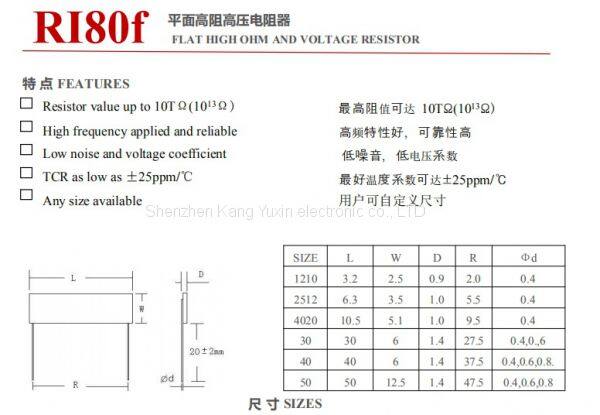

FEATURES:
1.Resistor value up to 10TΩ(10~13Ω)
2.High frequency applied and reliable
3.Low noise and voltage coefficient
4.Any size available

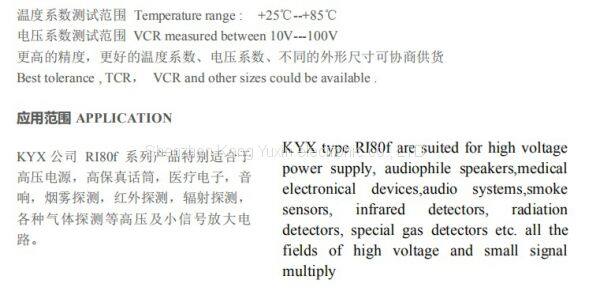

APPLICATION:
KYX type RI80f are suited for high voltage power supply, audiophile speakers,medical electronical devices,audio systems,smoke sensors, infrared detectors, radiation detectors, special gas detectors etc. all the fields of high voltage and small signal multiply

For more detailed information, you can download the PDF specification below
