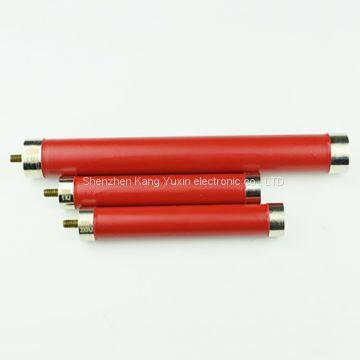

Help CenterRI80 High Resistance High Voltage Resistors 500w
Related Products
-
High Power Resistor Cermet 3W High Voltage Resistors,power Thickfilm Resistors 50w100WUS$ 0.1 - 3.0MOQ: 100 Pieces -
Power Thickfilm Resistors,36KV High Voltage Resistors 10W 15W 20WUS$ 0.1 - 3.0MOQ: 100 Pieces
-
High Performance Metal Glass Glaze Film High Voltage Resistors,High Voltage AppliedUS$ 0.04 - 0.1MOQ: 100 Pieces
-
Glass Glaze Film High Voltage Resistors,Glass Glaze High Voltage Resistors1/2w1w2w3wUS$ 0.04 - 0.1MOQ: 100 Pieces
-
RI80F Tube Big Power Resistor High Voltage Resistors Thic Film Resistor 100w 50w 50KV 1R~20MRUS$ 0.1 - 3.0MOQ: 100 Pieces
Key Specifications/SpecialFeatures:

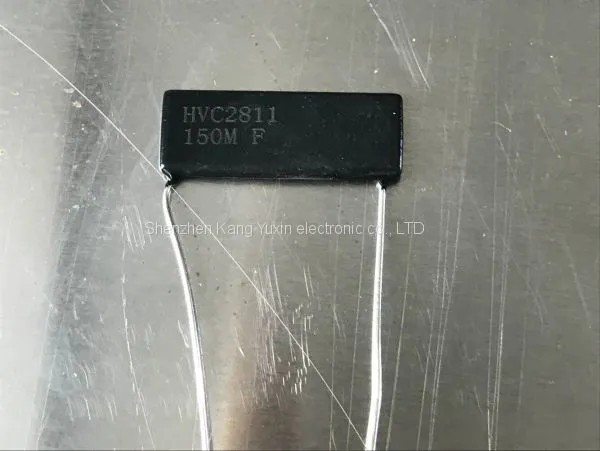

Style:flat high ohm and voltage resistor

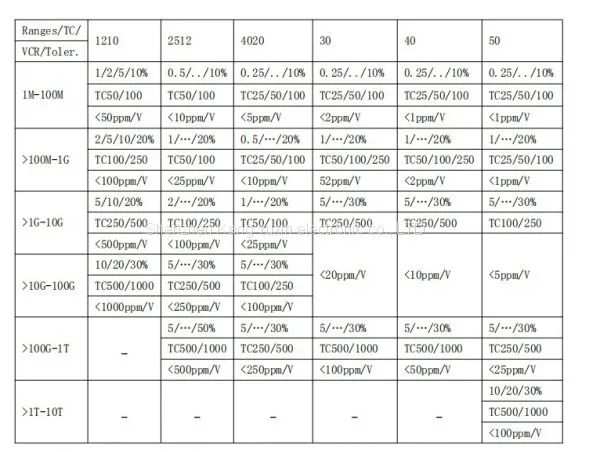

Resistance Range:1K-10t
Tolerance:10% 5% 1%

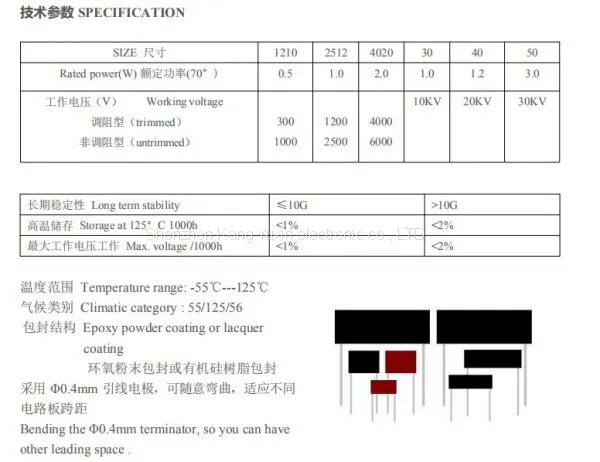

Temperature range: -55℃---125℃
Climatic category : 55/125/56
TCR as low as ±25ppm/℃
Epoxy powder coating or lacquercoating:
Bending the Φ0.4mm terminator, so you can have other leading space

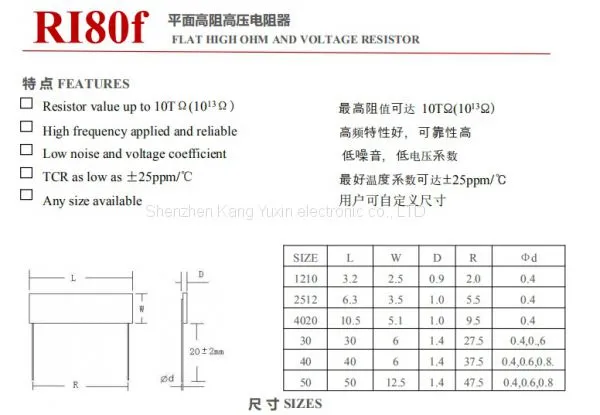

FEATURES:
1.Resistor value up to 10TΩ(10~13Ω)
2.High frequency applied and reliable
3.Low noise and voltage coefficient
4.Any size available

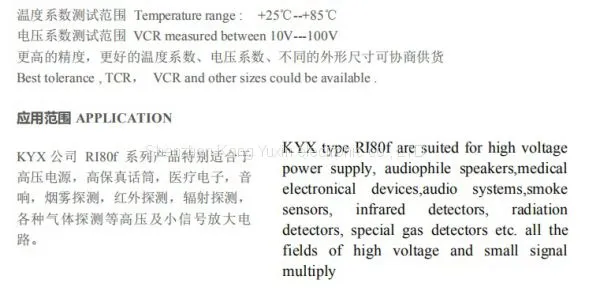

APPLICATION:
KYX type RI80f are suited for high voltage power supply, audiophile speakers,medical electronical devices,audio systems,smoke sensors, infrared detectors, radiation detectors, special gas detectors etc. all the fields of high voltage and small signal multiply
For more detailed information, you can download the PDF specification below
