Help CenterHigh Performance Metal Glass Glaze Film High Voltage Resistors,High Voltage Applied
Related Products
-
Glass Glaze Film High Voltage Resistors,Glass Glaze High Voltage Resistors1/2w1w2w3wUS$ 0.04 - 0.1MOQ: 100 Pieces -
RI80F Tube Big Power Resistor High Voltage Resistors Thic Film Resistor 100w 50w 50KV 1R~20MRUS$ 0.1 - 3.0MOQ: 100 Pieces
-
RHP HV Glazed High Voltage Resistor 10W 20W 30WUS$ 0.1 - 3.0MOQ: 100 Pieces
-
0.25W High Frequency Applied and Reliable,Yellow Epoxy Coated High Voltage Resistor,US$ 0.1 - 5MOQ: 100 Pieces
-
0.5W High Frequency Applied and Reliable,Yellow Epoxy Coated High Voltage Resistor,US$ 0.1 - 5MOQ: 100 Pieces
Key Specifications/SpecialFeatures:
Style:high voltage resistor
Resistance Range:1K-10t
Tolerance:10% 5% 1%
Temperature range: -55℃---125℃
Climatic category : 55/125/56
TCR as low as ±100ppm/℃

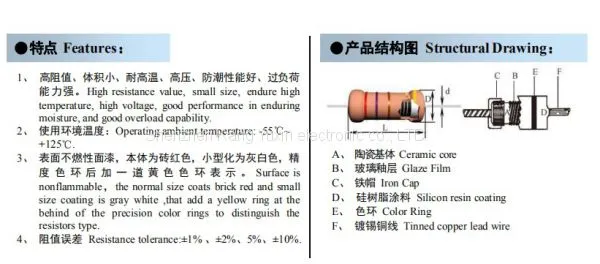

Surface is nonflammable，the normal size coats brick red and small size coating is gray white ,that add a yellow ring at the behind of the precision color rings to distinguish the resistors type.
FEATURES:
High resistance value, small size, endure high temperature, high voltage, good performance in enduring moisture, and good overload capability.
APPLICATION:
KYX type RI40 are suited for high voltage power supply, audiophile speakers,medical electronical devices,audio systems,smoke sensors, infrared detectors, radiation detectors, special gas detectors etc. all the fields of high voltage and small signal multiplyFor more detailed information, you can download the PDF specification below
