Home > Products > Cross Roller Bearings > RB14016UUCCP5 RB14025UUCCP5 Cross Roller Bearing Rb Series Cylindrical Roller Bearing
RB14016UUCCP5 RB14025UUCCP5 Cross Roller Bearing Rb Series Cylindrical Roller Bearing
US$ 1 - 1000
/ Piece
1 Piece(Min. Order)
- Shanghai or Beijing
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
-
SX011818 China Crossed Roller Bearing Manufacturer
-
SX011824 China Precision Crossed Roller Bearing Manufacturer
-
SX011836 Cross Roller Bearing Hollow Shaft Servo Motor With Encoder
-
SX011840 Sx Series Cross Roller Bearing Industry Robotic Arm Harmonic Drive
-
SX011848 Super Precision Bearings Machine Tool Spindle Harmonic Drive Reducer Bearings
-
SX011860 Crossed Cylindrical Roller Slewing Bearings Industrial Robotic Arm Reducer Drive
Product Details
| Brand Name | Monton | Place of Origin | China | |
| Model Number | RB14016UUCCP5 RB14025UUCCP5 | Number of Row | Single Row | |
| Seals Type | open or sealed | Precision Rating | 50000r/min | |
| Outside Diameter | 10, 260 | Bore Size | 25, 245 |
Product Description
RB14016UUCCP5 RB14025UUCCP5 Cross Roller Bearing Rb Series Cylindrical Roller Bearing
RB14016UUCCP5
RB14025UUCCP5

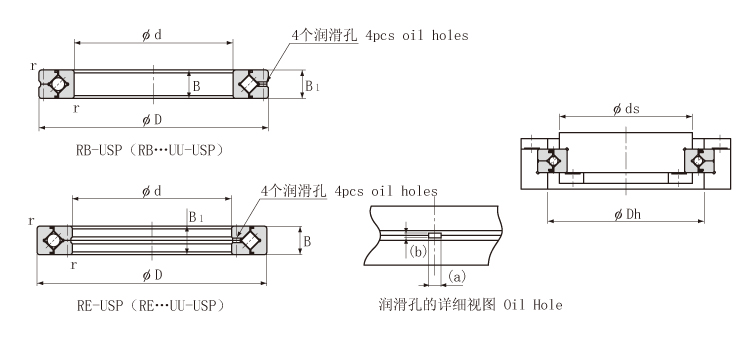

| Shaft Diameter | Bearings | inner ring | outer ring | Roller pitch circle diameter | width | Greasing hole | Chamfer | Shoulder height | Basic load rating(radial) | weight | ||
| d | D | dp | B B1 | a-b | r(min) | ds | Dh | C | C0 | Kg | ||
| (mm) | (mm) | (mm) | (mm) | (mm) | kN | kN | ||||||
| 140 | RB14016 | 140 | 175 | 154.8 | 16 | 3.5-1.6 | 1.6 | 147 | 162 | 25.9 | 50.1 | 1 |
| 140 | RB14025 | 140 | 200 | 168 | 25 | 3.5-2 | 2 | 154 | 185 | 74.8 | 121 | 2.96 |
