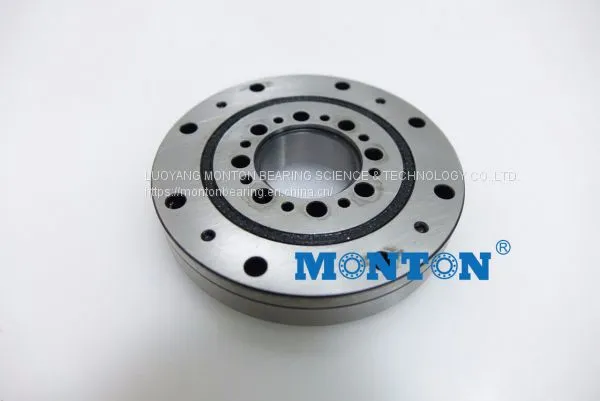

XSU140544 Super Thin Section Cross Roller Bearing For Medical Apparatus And Instruments
US$ 1 - 1000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Monton
Place of Origin:
China
Model Number:
XSU140544
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Beijing
Delivery Detail:
15 days
Related Products
-
XSU140644 Xsu Series Cross Roller Ring Wind Turbine Slewing BearingUS$ 1 - 1000MOQ: 1 Piece -
XSU140744 Xsu Series Cross Roller Bearing Harmonic Drive Reducer Radar Robots BearingsUS$ 1 - 1000MOQ: 1 Piece
-
XSU140844 Wind Turbine Slewing Bearing Axial And Radial Bearing Yrtm With Angle Measuring SystemUS$ 1 - 1000MOQ: 1 Piece
-
XSU140944 Customized Csf Harmonic Drive Electronic Detection RadarUS$ 1 - 1000MOQ: 1 Piece
-
XSU141094 Csf Harmonic Drive Special For Robot Industrial Robot BearingsUS$ 1 - 1000MOQ: 1 Piece
Brand Name
Monton
Place of Origin
China
Model Number
XSU140544
Number of Row
Single Row
Seals Type
open or sealed
Precision Rating
50000r/min
Outside Diameter
10, 260
Bore Size
25, 245
XSU140544 Super Thin Section Cross Roller Bearing For Medical Apparatus And Instruments
XSU140544
| Identification number | Main dimensions | Basic load rating(axial) | Basic load rating(radial) | weight | ||||||||
| inner ring | outer ring | width | Installing hole | Chamfer | φLa | φLi | Ca | C0a | Cr | Cor | Kg | |
| d | D | B | nB | r(min) | KN | KN | KN | KN | ||||
| (mm) | (mm) | (mm) | ||||||||||
| XSU140544 | 474 | 614 | 56 | 32 | 2.5 | 590 | 498 | 270 | 680 | 170 | 330 | 38 |
XSU Crossed roller bearing, sealed on both sides, greased,preloaded, centred on the inside and outside diameter,
bearing rings can be screw mounted directly on the adjacent construction.
Crossed roller bearings XSU
Inner and outer ring suitable for flange mounting Crossed roller bearings XSU are screw mounted directly to the adjacent construction through both bearing rings .The adjacent construction must be flat and uniformly rigid,while the connection between the bearing adjacent components must be by force locking. For the upper and lower adjacent construction, a cylindrical pot with a flange ring has proved effective .The wall thickness of the pot should be approximately one third of the flange thickness s and the pot height HT should be at least five times the flange thickness s . For a more uniform rigidity of the bearing arrangement, thicker walls of the pot and flange ring are more favourable than thin walls with ribs.
In order to achieve the most linear force flow possible, arrange the pot precisely above or below the row of rolling elements!
Features Of Cross Roller Bearing
1.with excellent rotational accuracy
2. Installing simplifies operation
3. Bear large axial and radial loads
4.Significant savings in installation space
5. High speed capability
6. Shaft length and reduce processing costs, the geometry of thermal expansion is limited to hanges .
7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing
8. Optimization of preload, rigidity, high precision guide rollers running
9. Carburizing steel provides excellent impact resistance and surface abrasion resistance
10. Simple but adequate lubrication
Series Model No.
XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398,XSU140414,
XSU140544,XSU140644,XSU140744,XSU140844,XSU140944
Applications:
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
Packing and shipment
Packing:
1.Vacuum package:40mm-200mm
2.Wooden box package:200mm-1500mm
Shipping:By air or By sea according to request.
