XSU080188 Thin Section Crossed Bearings Harmonic Drive Hollow Shaft Servo Motor

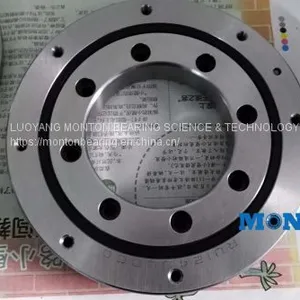

XSU080188 Thin Section Crossed Bearings Harmonic Drive Hollow Shaft Servo Motor thumbnail-1
XSU080188 Thin Section Crossed Bearings Harmonic Drive Hollow Shaft Servo Motor photo-1
US$ 1 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Monton
Place of Origin:
China
Model Number:
XSU080188
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Beijing
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Monton
Place of Origin China
Model Number XSU080188
Number of Row Single Row
Seals Type open or sealed
Precision Rating 50000r/min
Outside Diameter 10, 260
Bore Size 25, 245

XSU080188

hollow shaft servo motor bearings



Identification number Main dimensions Basic load rating(axial) Basic load rating(radial) weight
inner ring outer ring width Installing hole Chamfer φLa φLi Ca C0a Cr Cor Kg
d D B nB r(min) KN KN KN KN
(mm) (mm) (mm)





XSU080188 150 225 25.4 16 1.1 210 165 71 275 46 110 3.7



XSU Crossed roller bearing, sealed on both sides, greased,preloaded, centred on the inside and outside diameter,
bearing rings can be screw mounted directly on the adjacent construction.
Features Of Cross Roller Bearing

1.with excellent rotational accuracy
2. Installing simplifies operation
3. Bear large axial and radial loads
4.Significant savings in installation space
5. High speed capability
6. Shaft length and reduce processing costs, the geometry of thermal expansion is limited to hanges .
7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing
8. Optimization of preload, rigidity, high precision guide rollers running
9. Carburizing steel provides excellent impact resistance and surface abrasion resistance
10. Simple but adequate lubrication

Series Model No.
XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398,XSU140414,
XSU140544,XSU140644,XSU140744,XSU140844,XSU140944

Applications:
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc

Packing and shipment
Packing:
1.Vacuum package:40mm-200mm
2.Wooden box package:200mm-1500mm
Shipping:By air or By sea according to request.


Product Tags: Cross Roller Bearings , Roller Bearings , High precision bearings , Crollsed Roller Bearings , YRT bearings , Rotary stable bearings
