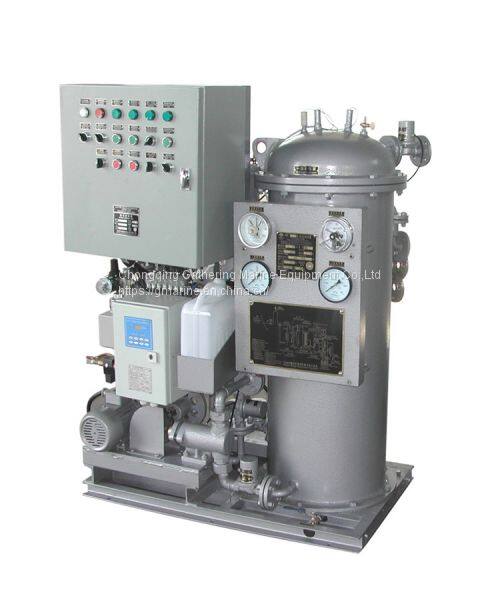

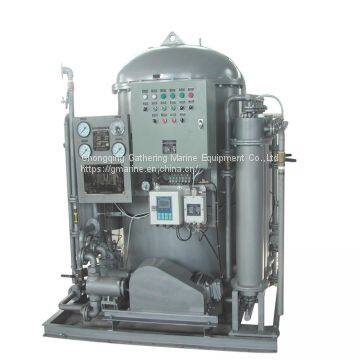

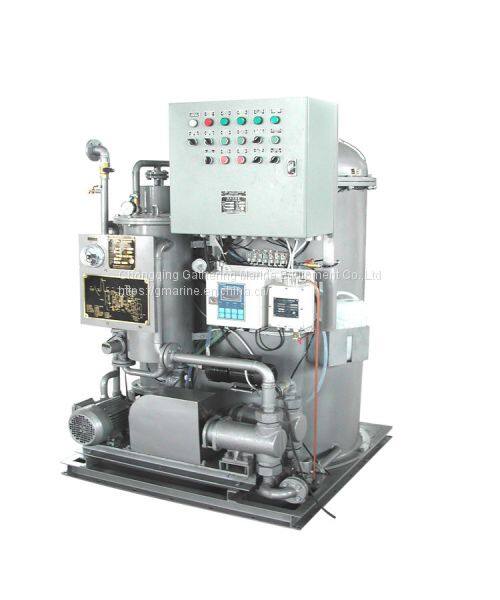

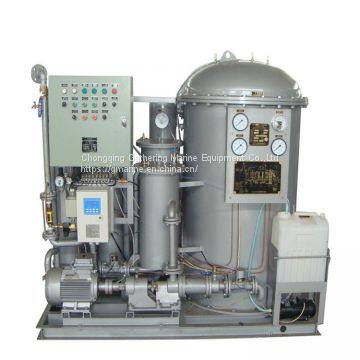

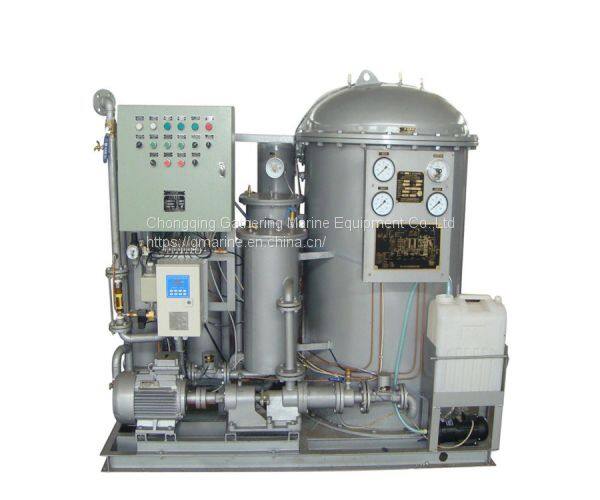

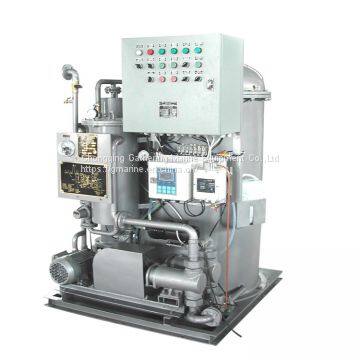

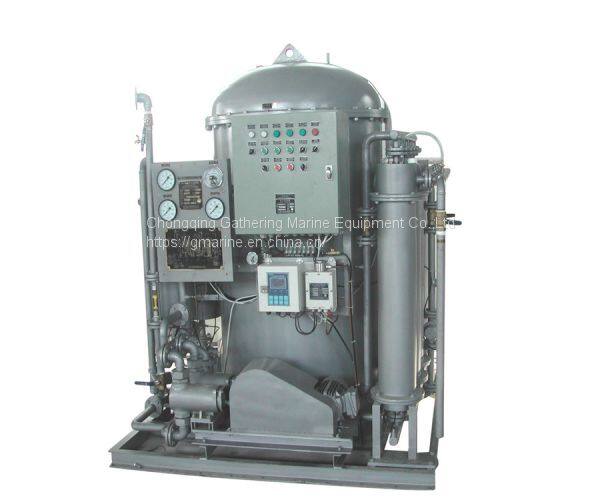

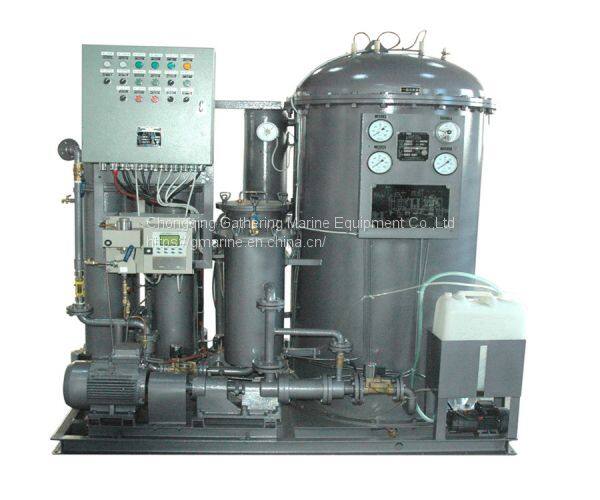

IMO Standard 15ppm Marine Bilge oil Water Separator Prices
1. Introduction
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤ 15ppm.
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT.
Besides in ship vessels, This separator can also be used in industrial and petroleum,
2. Main parameters
(1)capacity: From 0.25m3/h to 5m3/h
(2) Oil content in the effluent water ≤ 15 ppm
(3) Meet the standard of IMO MEPC. 107(49)
(4) Heating mode: Steam /electric heating
(5) CCS, EC certificate
(6) Applicable ship: Less than 1000 DWT to above 300 KDWT
(7) there are 9 types with different capacities
(8) with OCM-15 Oil Content Meter
3. Types
0.25 m3/h, 0.5m3/h, 1m3/h, 1.5m3/h, 2m3/h, 2.5m3/h, 3m3/h, 4m3/h, 5m3/h
Besides 15ppm Bilge Separator, we can also provide Sewage Treatment Plant, UV Sterilizer Treatment Equipmnet, Silver Ion Sterilizer and RO Desalination Plant.
Please do not hesitate to contact us if you are interested in Oily Water Separator or other items. Thanks
More types:
| type | HWC0.25 | HWC0.5 | HWC1.0 | HWC1.5 | HWC2.0 | HWC2.5 | HWC3.0 | HWC4.0 | HWC5.0 |
| Rating/max capacity (M3/H) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 |
| Power of pump (KW) | 0.37 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
| Electric heater power(KW) | 3 | 3 | option | option | option | option | option | option | option |
| steam heater m2/kw | __ | __ | 1/30 | 1/45 | 2/60 | 2/75 | 3/90 | 4/120 | 5/150 |
| 15ppm bilge alarm | included | included | included | included | included | included | included | included | included |
| base (channel steel)mm | #5 1000*600 | #6 1100*690 | #6 1050*1080 | #6 1100*1130 | #8 1900*1120 | #8 1900*1120 | #8 1700*1500 | #8 2280*1700 | #8 2590*2000 |
| height(mm) | 1250 | 1460 | 1600 | 1650 | 1700 | 1900 | 1900 | 1900 | 1900 |
| dry/wet weight (kg) | 300/450 | 600/800 | 800/860 | 1060/1810 | 1260/2260 | 1500/2800 | 1800/3200 | 2100/3900 | 2500/4600 |
| applicable ship vessel | less than 1000 DWT |
1000~ 5000DWT |
5~10 KDWT | 10~30 KDWT | 30~50 KDWT | 50~100 KDWT | 100~200 KDWT | 100~300 KDWT | 300 KDWT above |
