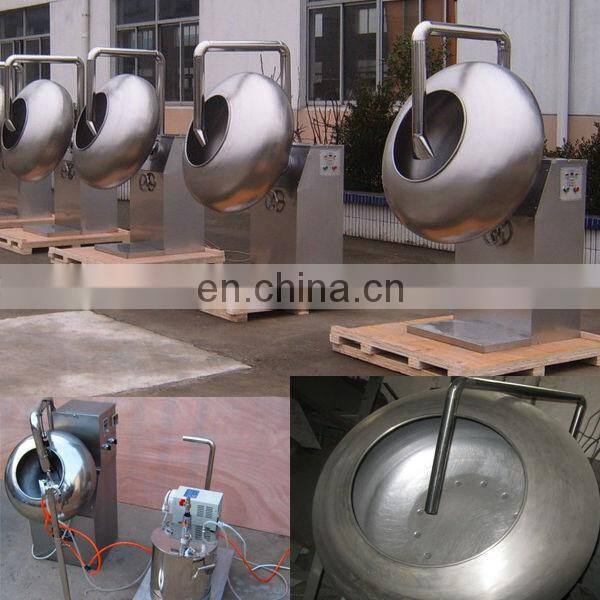

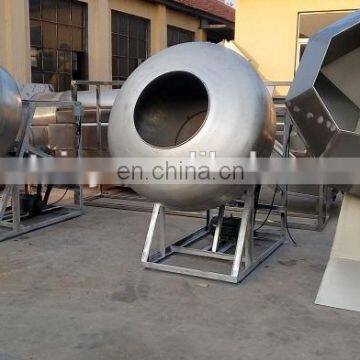

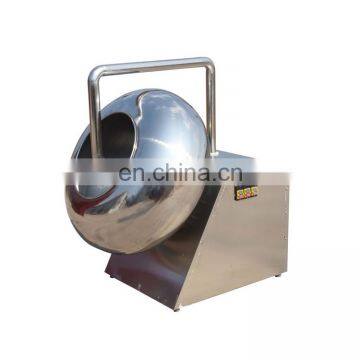

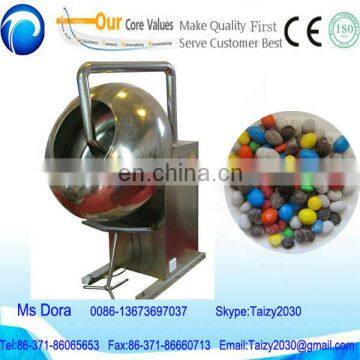

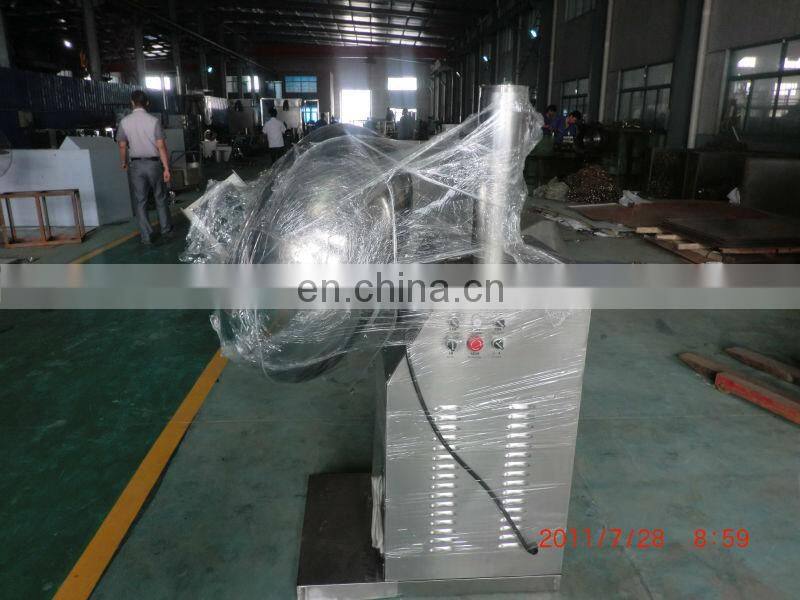

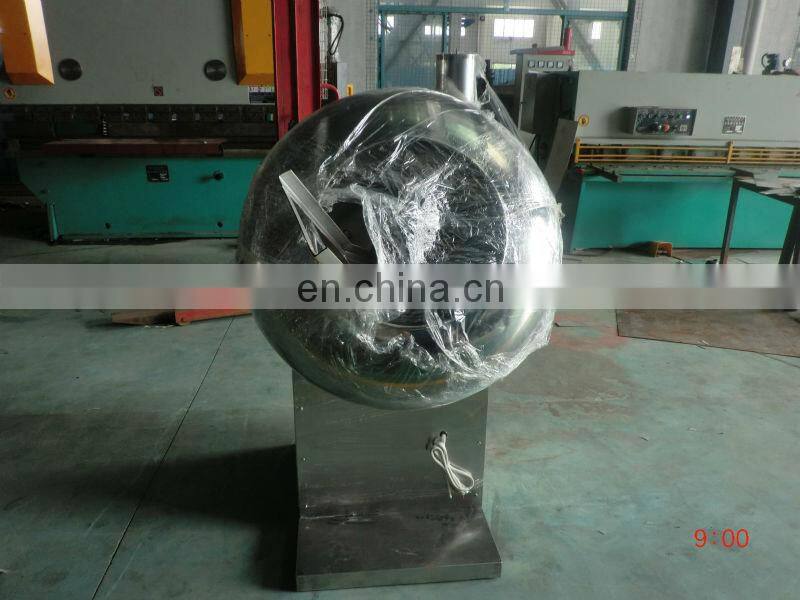

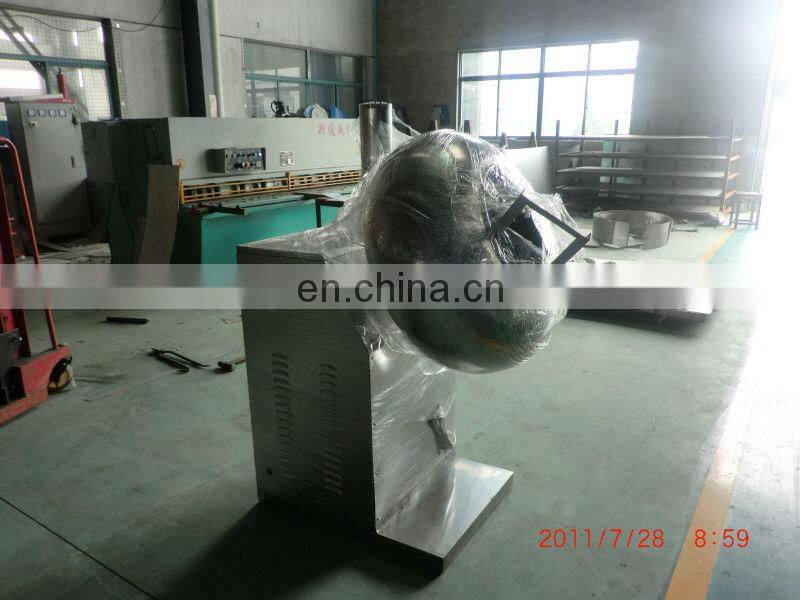

Good Quality Stainless Steel Small Chocolate Coating Machine

Good Quality Stainless Steel Small Chocolate Coating Machine photo-1
Good Quality Stainless Steel Small Chocolate Coating Machine photo-2
Good Quality Stainless Steel Small Chocolate Coating Machine photo-3
Good Quality Stainless Steel Small Chocolate Coating Machine photo-4
Good Quality Stainless Steel Small Chocolate Coating Machine photo-5
Good Quality Stainless Steel Small Chocolate Coating Machine photo-6
US$ 1,000 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
taizy
Place of Origin:
Henan, China
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name taizy
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

Introduction of   small chocolate coating machine

1).The sugar coating round pot is elevated with a elevation 30 to the horizontal.

Also can used for mixing, polishing spherical shape or particles material in chemical industry,light industry, food etc. For example, coating sugar /flavor on peanut,rolling desiccant, aluminum hydroxide ball, aluminum oxide ball, catalyst.

2).The heater can placed directly under the pot.

3).Main part of the machine is machine body ,worm wheel box ,sugar coating pan, heating device, fans, electric appliances and other major parts.

The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity could be choose in two levels. Through the triangle belt driving worm wheel, worm, driving sugar coating pan rotating , driving under the influence of the centrifugal force, making the material rolling friction in the pot, achieving coated with sugar mixture, and making pill, and polishing effect.

small chocolate coating machine  parameters:

Model

TZ-300

TZ-400

TZ-600

TZ-800

TZ-1000

Capacity(kg/time)

2-3

3-5

15-30

30-50

50-70

Diameter(mm)

300

400

600

800

1000

Rotary speed(r/min)

46

35

35

35

31

Inclination Angel(°)

15-45

15-45

15-45

15-45

15-45

Main Power(kw)

0.37

0.37

0.55

1.1

1.1

Heat power(w)

300

600

1000

2000

2000

Weight(kg)

40

50

70

280

330



small chocolate coating machine  Features

1.This Peanut Coating Machine is made of stainless steel.

2. It used for coating flour, sugar, chocolate, etc for nuts, beans, seeds and so on.

3. The operation is easy, performance is reliable. It is convenient to wash and maintain, thermal efficiency is high

4.In the machine has air blower can blow hot air to dry the end products,so will not sticky with each other.



Applications of   small chocolate coating machine

These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds
