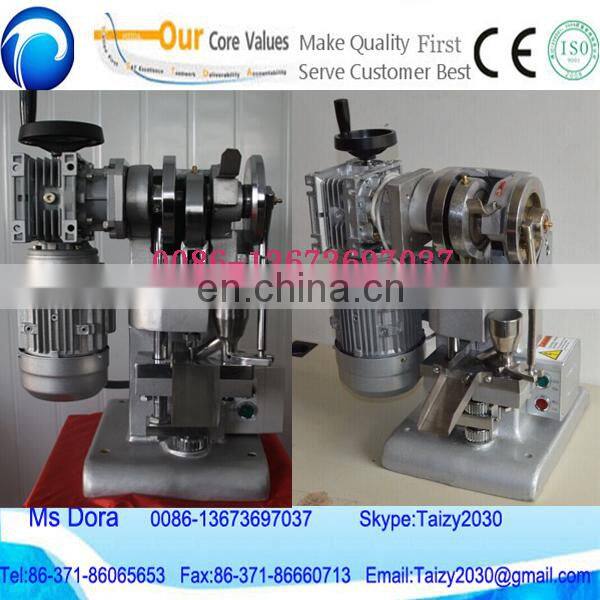

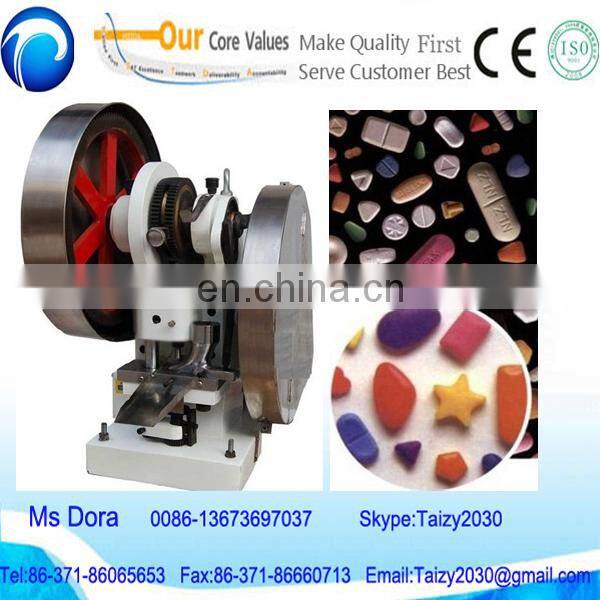

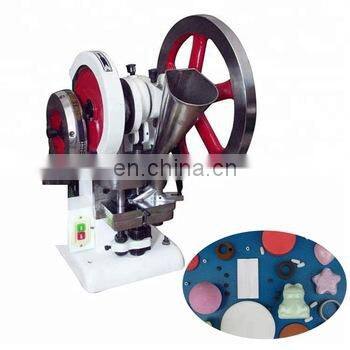

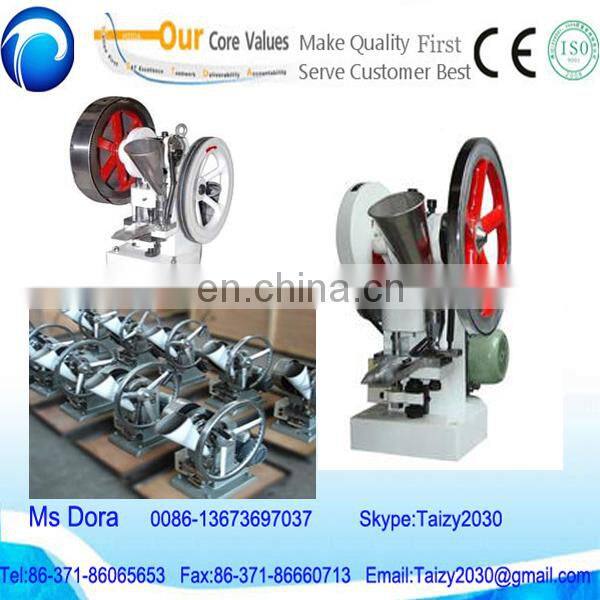

Description of tablet pill press machine
This machine is a small desktop type electric tablet press, and it also can be handOperated,
easy be operated and maintained.This machine can press round or irregular tablets from various
granular materials. It Is applicable to trial manufacture or batch produce in small scale in lab, hospital
and Science research institutes etc.
Parameters of tablet pill press machine
ITEM |
TZS-3 |
TZS-5 |
TZS-6 |
Max. Pressure (kn) |
30 |
50 |
60Kn |
Max. Dia of Tablet(mm) |
14 |
18mm for round tablet 22mm for irregular tablet |
20mm for round tablet 25mm for irregular tablet |
|
Max. Depth of Filling (mm) |
11 |
13mm |
15mm |
|
Max. Thickness of Tablet (mm) |
6 |
7mm |
7.5mm |
|
Production Capacity (pcs/h) |
3600 |
3600 |
3600 |
Power(w) |
550 |
1100 |
1100 |
Overall Size(LxWxH) |
600x450x680 |
600×500×700 |
650×600×700 |
Net Weight(kg) |
90 |
140kg |
150kg |
Tablet pill press machine application
The machine is suitable for the industries of Chemical, Foodstuff,Electronic and etc.It is used of pressing medicinal
tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder Metallurgical,Electronic elements and various
tablets of pesticide and fertilizer.etc.in such small-batch production,laboratory and hospital fields.Meanwhile,that machine also can press various abnormity

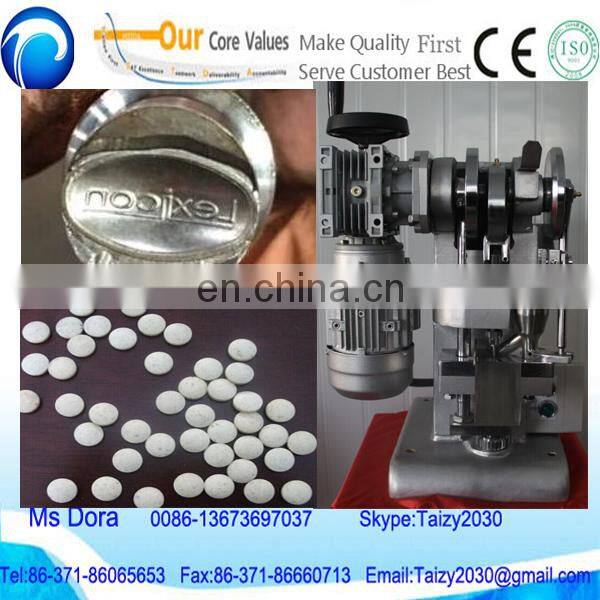

and normal tablet,and press the tablets in two sides with printing as well.
Tablet pill press machine features
1. Glossy finished stainless steel belt cover, as clean as a whistle, no pollution, meets the GMP standard.
2. Only a pair of punch and die can be erected on this machine both filling depth of materials and thickness of tablet are adjustable.
3. Press both round and irregular tablets.
4. Power supply: AC, 220V/50HZ or 110V/60HZ 1 phase
5. High precision of filling, lower consumption of materials.
6. Small volume, light weight, works smoothly and low noise.

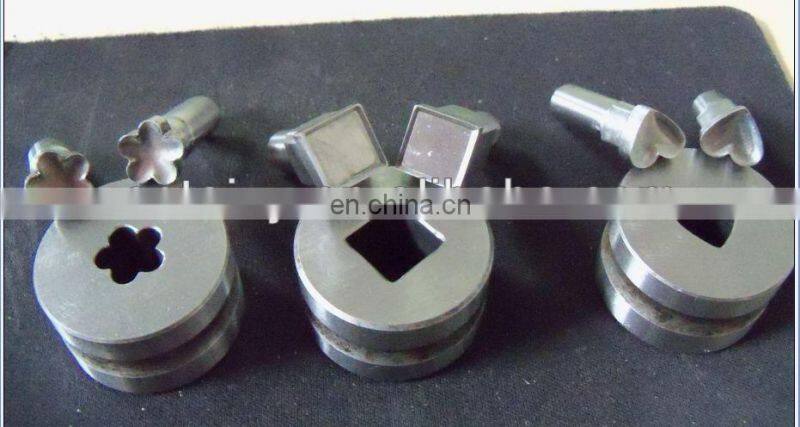

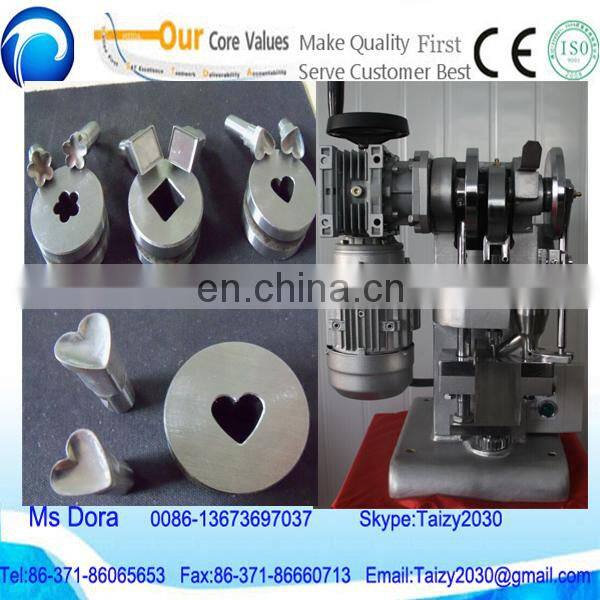

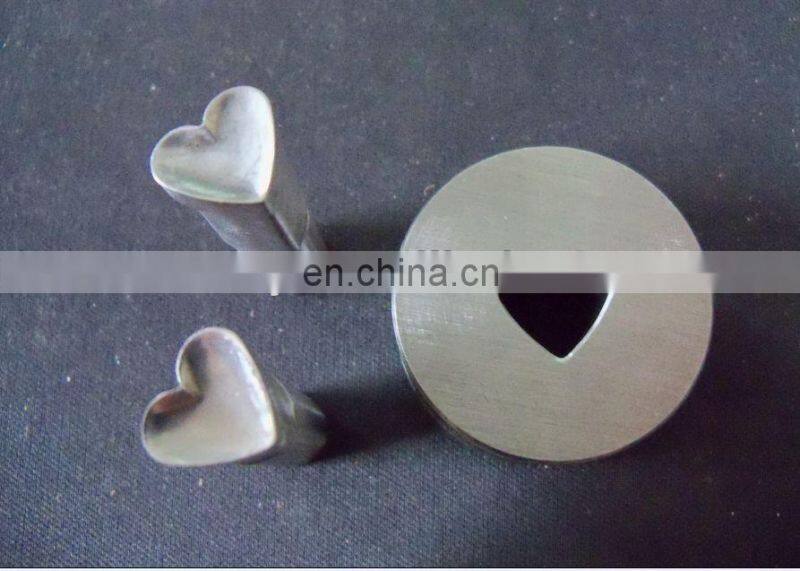

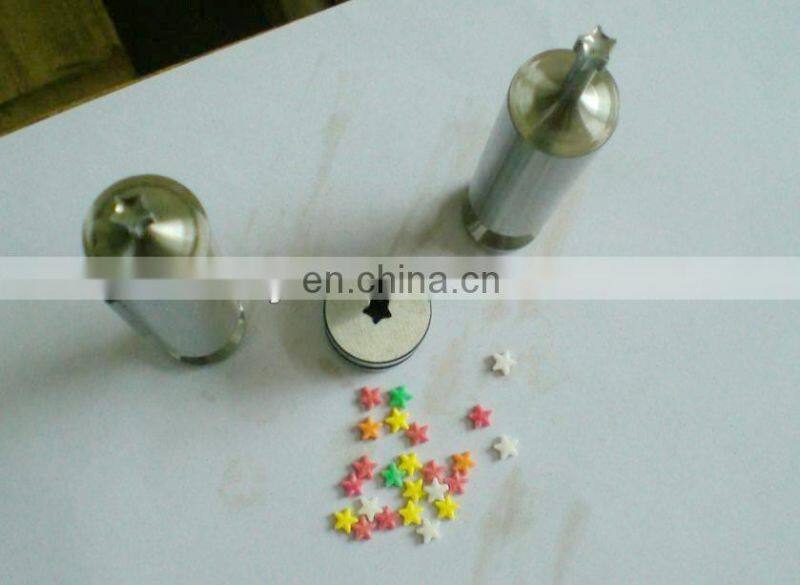

Different molds

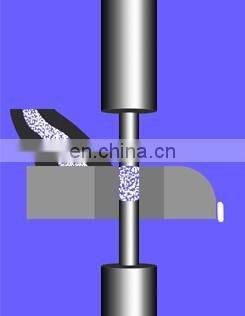

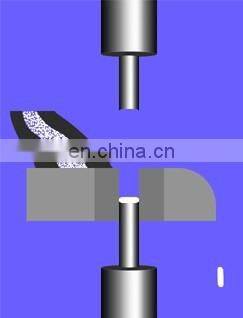

Tablet pill press machine working principle
