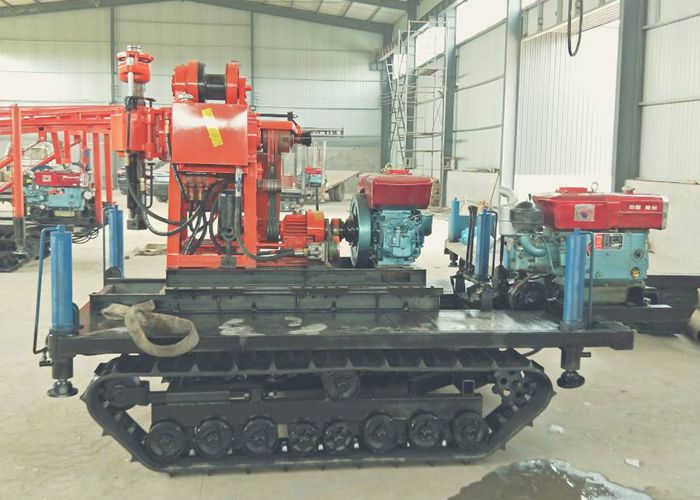

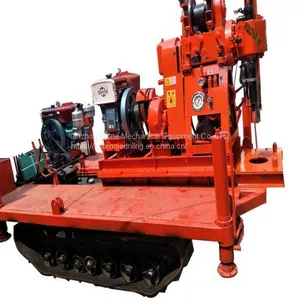

ST-200 Prospecting Geological Drilling Rig Machine , Borewell Drilling Machine

US$ 3000 - 9000 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Model Number:

ST-200

Type:

Core Drilling Rig

Jinzhou Stone Mechanical Equipment Co.,LTD.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

7 days

Place of Origin China

Model Number ST-200

Type Core Drilling Rig

Certification ISO

After-sales Service Provided Overseas service center available

Warranty half an year

Weight 2000kg

Power Type Diesel

Usage Water Well

Condition New

ST-200 Prospecting Geological Drilling Rig Machine for Sale with Good Price

Product Parameter:

1. With hydraulic automatic feed mechanism, improve drilling efficiency, reduce workers' physical strength.

2. With the ball instead of the card holder chuck mechanism, and with a clamping positioning mechanism can be implemented non-stop lever down.

3. With a bottom hole pressure gauge indicating the pressure, easy to grasp hole situation.

4. Handle centralized, easy to operate.

5. Compact, drilling rigs and power machine are mounted on the same base, the area occupied by a small space.

6. Light weight, decomposition and strong, easy to move, suitable for plains or mountain areas.

7. Equipped with a safety shield, highlighting the equipment user-friendly design features.

8. The lower end of the vertical feed cylinders with fixed junction box nut, improve rig reliability.

Product Parameter:

main parameters
1.Technical parameters	drill pipe diameter	42mm
	The hole inclination angle	90～75°
	Rig dimensions(L×B×H)	1433×697×1273mm
	drill weight	500kg (mobile 620kg, mobile pump 720kg)
	Rated drilling depth	200m(The depth should not exceed 220m)
	Rated hole diameter	200mm(The maximum diameter of opening hole 300mm)
	Drill and drill diameter should be according to the formation conditions.
2. Gyrator	The vertical speed (four steps)	118,236,505,1010.r/ram
2. Gyrator	Max output torque	1500N. m
3. Windlass	Since the maximum weight (a single rope)	17KN
4.power machine	Engine type	S1115
