ST120W DTH Hammer Bore hole Drill Rig
Product description

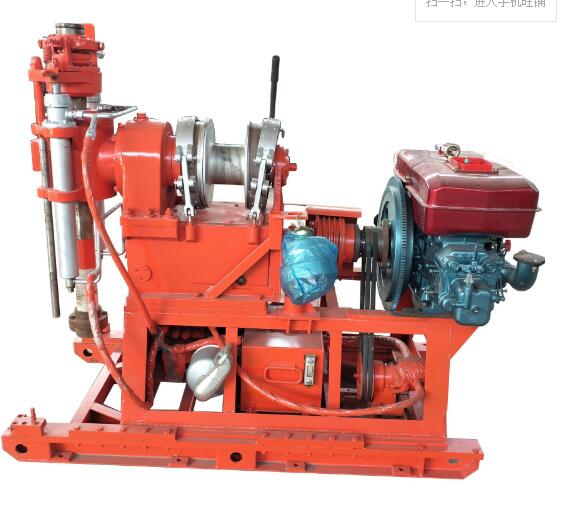

XY-3 is a core drilling rig for middle and shallow hole. It not only can be used for hard alloy drilling, engineering geological reconnaissance, drilling of fluid mineral in superficial layer and natural gas exploitation, but also can apply to small diameter drilling of metal or nonmetallic materials and solid deposit with diamond bits. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.
Product parameter
Mini Soil And Geological Investigation Drilling Rig| Drilling diameter(mm) | 75,91,110,130,150,300 |
| Drilling depth (m) | 150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,50 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1710*850*1340 (mm) |
| Rig weight (except engine) | 500 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 140,295,470,790,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Winch assembly | |
| Winch maximum lifting force (single rope) | 15 |
| Reel speed (r/min) | 36,76,121 |
| Reel circumferential speed(m/s) | 0.166,0.331,0.733,1.465 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 95 |
| Brake diameter(mm) | 252 |
| Brake band width (mm) | 50 |
| Water pump | |
| Pump type | Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) | 95 (77) |
| The maximum allowable pressure (Mpa) | 1.2 |
| Work pressure (Mpa) | 0.7 |
| Cylinder diameter (mm) | 80 |
| Piston stroke(mm) | 100 |
| Oil pump | |
| Oil pump type | YBC-20/125 |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
Our service
1. We provides technical train for free.
2. Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3. When the machine should be maintained, you will receive the reminding from us.
4. According to different geological conditions,we will recommend different construction plans for you.
5. Remind you the wearing parts,so you can prepare enough.
6. 24 hours respond to your quality problem.
7. Other customer's reasonable request
