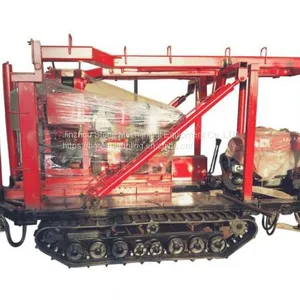

High Precision Geological Drilling Rig Machine For Core Sampling
US$ 3000 - 6000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ST
Place of Origin:
China
Model Number:
ST-200
Payment & Shipping
Payment Methods:
Port of Shipment:
Shijiazhuang
Delivery Detail:
7 days
Related Products
-
High Efficient, CE Certificate Shitan150 Portable Hydraulic Drilling MachineUS$ 3000 - 6000MOQ: 1 Set -
ST100 Portable and Economical Water Borehole Drill MachineUS$ 3000 - 6000MOQ: 1 Set
-
Geological Survey Drill Rig SHITAN 360 Good Quality Small Pile Drilling MachineUS$ 3000 - 6000MOQ: 1 Set
-
Crawler Auger Mini Pile Drill MachineUS$ 3000 - 9000MOQ: 1 Set
-
ST120W DTH Hammer Water Well Drill MachineUS$ 3000 - 6000MOQ: 1 Set
Brand Name
ST
Place of Origin
China
Model Number
ST-200
Type
Core Drilling Rig
Certification
ISO
After-sales Service Provided
Overseas service center available
Warranty
6 month
Weight
600 KG
Dimension(L*W*H)
2000 *3300*2300 MM
Power Type
Diesel
Voltage
220
Usage
Water Well
Condition
New
Power(W)
16.2

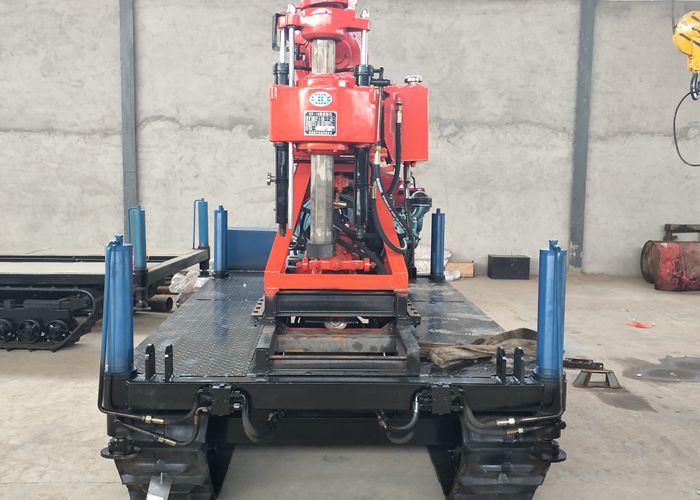

High Precision Geological Drilling Rig Machine For Core Sampling
Product Description:
1. Compact mechanical transmission structure, lightweight, vertical spindle for large through hole diameter with hexagonal drive drilling rod, ensured torque transmission.
2. Higher rotating speed and rational scope, adaptable for the drillings with small diameter diamond drill bit or large diameter carbide drill bit and other engineering hole drillings.
3. During the hydraulic controlled feeding process, both the pressure and speed of feeding can be regulated to meet the requirements of different stratum drillings.
4. Less and centralized handles, easy operation.
Product Parameter:
| Unity machine parameter | |
| Drilling depth | 200m |
| Drilling caliber | 300mm |
| Drill rod caliber | 60mm |
| Drilling angle | 90°~75 ° |
| Drill weight (No include power) | 975kg |
| Spindle | |
| Spindle speed | 64 128 287 557 r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 2400kg |
| Reel lifting speed | 0.41 0.82 1.64m/s |
| Tightrope caliber | 12.5mm |
| Tightrope cubic measure | 35mm |
| Hug floodgate caliber | 260mm |
| Hug floodgate belt width | 70mm |
| Distance between drill and hole | 450mm |
| Mud pump | |
| Type | Horizontal single urn twin action |
| Displacement | 170L/mim |
| Power | |
| Diesel engine | S1115 22HP |
| Electric motor | Y160M-4 15kw 1440r/min |
| Maximum pressure | 3Mpa |
| Work pressure | 1.5Mpa |
| Water inlet caliber | 40mm |
| Water to exit caliber | 30mm |
| Triangle conveyer belt | B1728mm |
