Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > PP/PE/PA/ABS/POM Super Solid Plank /sheet/board Extrusion Machine

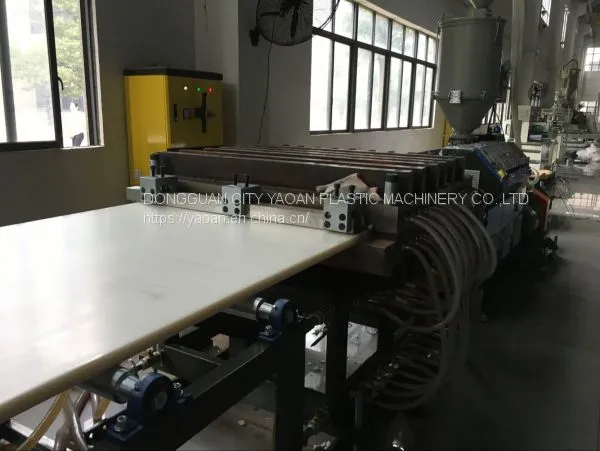

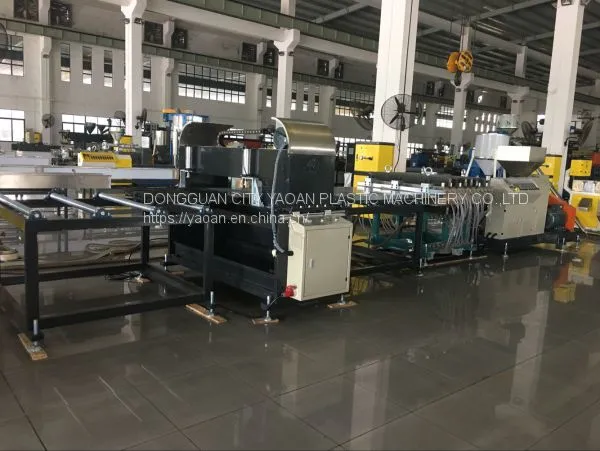

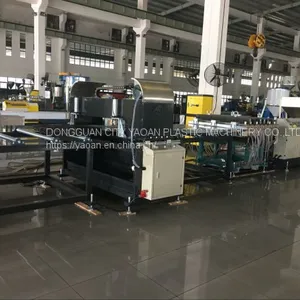

PP/PE/PA/ABS/POM Super Solid Plank /sheet/board Extrusion Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YAOAN
Model Number:
AF-65
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
90 days
Related Products
-
Three Layer PC ABS Sheet Extrusion Machine for Making Baggage Luggage CaseNegotiableMOQ: 1 Set -
PVC PET Corrugated Wave Roof Tile Sheet Extrusion Machine (Width: 850-1050mm)NegotiableMOQ: 1 Set
-
Flexible PVC Sheet Extrusion Equipment Production LineNegotiableMOQ: 1 Set
-
PP Plastic Sheet Extrusion Machine For Vacuum FormingNegotiableMOQ: 1 Set
-
PET, PETG, PLA Sheet Extrusion Machine, No Yellow, Clear SheetNegotiableMOQ: 1 Set
Brand Name
YAOAN
Model Number
AF-65
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
30 Tons
Dimension(L*W*H)
20000mm*5000mm*5000mm
Voltage
380V/50HZ/3P
Application
Plates
Condition
New
Power(W)
80kw
Automatic Grade
Full
Plastic Processed
Other, POM PP PE ABS
Screw Design
Single-screw

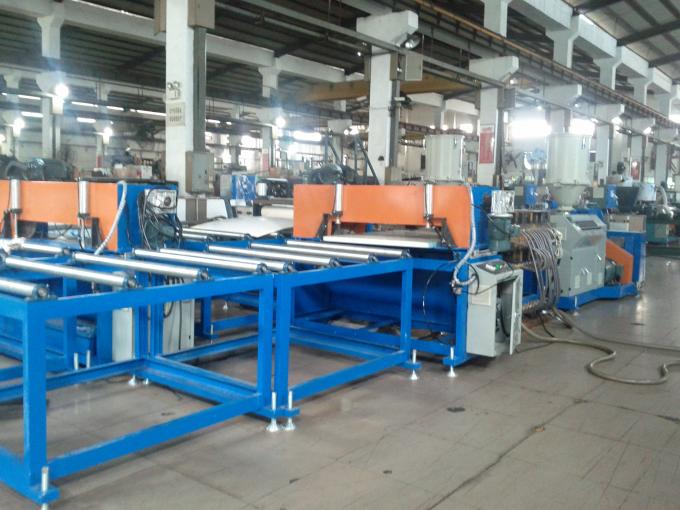

PP/PE/PA/ABS/POM super solid plank /sheet/board extrusion machine,1000mm- 1500mm Width, 20-300mm Thickness Plate , CE Certificated
Configuration and quotation
Size of product:
Thickness: 25-300mm
Width: 800-1600mm
Φ65mmextruder: one set
Screw diameter: 65mm
Screw L/D: 28:1
Screw type: special screw
Gear box: one set
Control power: 22KW
Control style: frequency conversion
Thermostat zones: 11 zones (4zones for mould)
Radiator zones: 4zones
Electrical control box: one set
Extrusion mould: one set
Cooling style: coldby water
Stand for nature air cooling: one set
Length: 10 meters
Material: stainless steel
Sawcuttingmachine: one set
Motor power: 5.5kw
Stacking machine: one set
Length: 3 meters
Material: stainless steel
Capacity:40-80kg/hr
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
1980
Factory Size
50,000-100,000 square meters
Annual Export Value
US$50 Million - US$100 Million
