Home > Products > EPE Foam Sheet Machine > PE Foam Pipe, Tube, Solid Rod, Net Extrusion Production Line, CE Certificated, ISO 9001
PE Foam Pipe, Tube, Solid Rod, Net Extrusion Production Line, CE Certificated, ISO 9001
- 300 Set / Sets per Month
- Shenzhen
- T/T L/C Other Cash
- 90 days
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Brand Name: | YAOAN | Model Number: | AF-90,AF-105,AF-120,AF-135,AF-150,AF-180,AF-200,AF-220 | Certification: | UL |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 Year | Weight: | 20 tons |
Dimension(L*W*H): | 25M*3.5M*3.5M | Voltage: | 380V/50HZ/3P | Product Type: | Other, Foam rod, pipe, sheet, net |
Condition: | New | Power(W): | 200kw |
Product Description
PE Foam Pipe, Tube, Solid Rod, Net Extrusion Production Line, CE Certificated, ISO 9001
Features:
* V.F driving for speed regulation. Tandem screw with independent heating zones to insure easy operation, easy trouble shooting, precise heating and curing.
* Japanese RKC temperature control system. Stable and reliable.
* Circulation water cooling. (Water tower, user to add)
* The head employed automatic screen exchange system (with a hydraulic station) to save time and reduce wastage. About 30% may be saved.
* Mold pressure control employed digital display and a septum pressure gage. The two systems insure stable top sheet quality.
* Winder may overturn automatically. With meter counter for length pre-setting. Winding width is adjustable.
* High foaming times. Imported temperature control system
Applications:

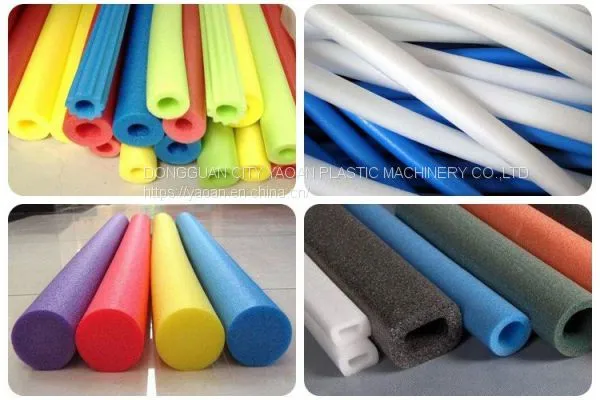

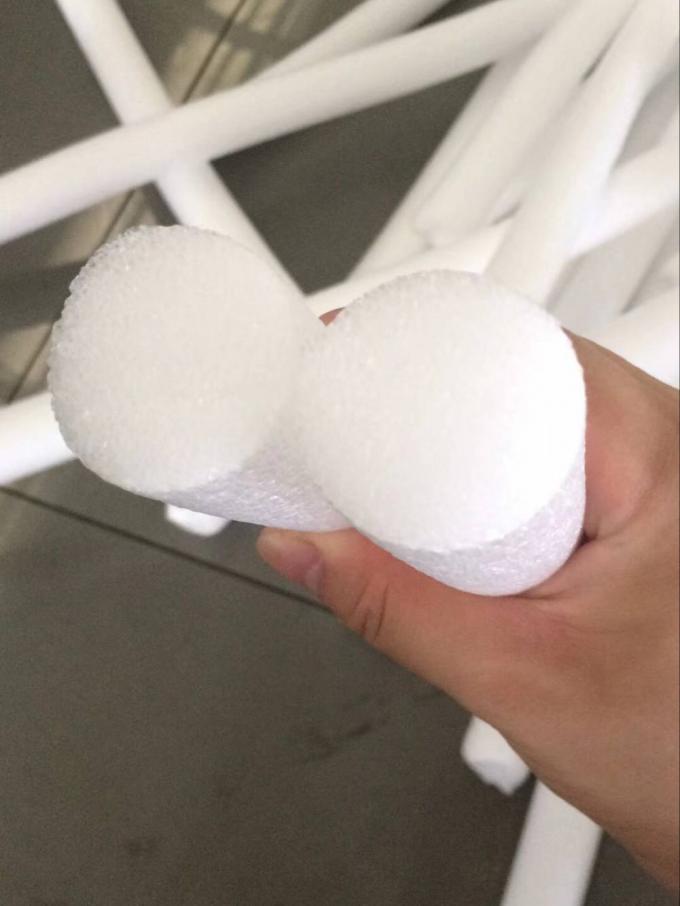

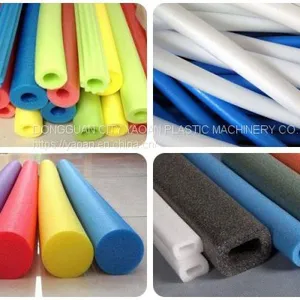

It is to extrude PE foam sheets, tubes,rods and profiles. There is Model 65 specialized for PE fruit nets.
Cushion packaging protection packaging against delicate elec-tronic products like video,audio and component parts requiring shock absorbing,vibration dampening mattress for sports purpose, cushioning,soundproof moistureproof effect at construction business.
model | 65 | 75 | 90 | 105 | 120 |
screw L/D | 55:1 | 55:1 | 55:1 | 55:1 | 55:1 |
production capacity(kg/hr) | 20-30 | 20-38 | 30-50 | 30-60 | 40-75 |
product outer diameter(mm) | 6-40 | 6-70 | 20-90 | 30-100 | 30-110 |
foaming efficiency | 20-47 | 20-47 | 20-47 | 20-47 | 20-47 |
total power(kw) | 56 | 65 | 70 | 85 | 98 |
screw speed(rpm) | 20-80 | 20-80 | 20-80 | 20-80 | 20-80 |
dimension(mm) | 7000*1500*2000 | 10000*2000*2000 | 10000*2300*2200 | 11000*2500*2200 | 15000*2500*2200 |
weight(T) | 3 | 3.5 | 4.5 | 5.5 | 6.5 |
We have customer from Vietnam, Malaysia, Russia, Turkey, India, Indonesia...
We have customer from Vietnam, Malaysia, Russia, Turkey, India, Indonesia...
