1. Characteristics of XYC-200 vehicle-mounted hydraulic water well drilling rig
· XYC-200 is a multi-functional hydraulic vehicle-mounted water well drilling rig.
· Automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
· It is equipped with high pressure,big flow BW160mudpump,which can ensure drilling depth and diameter.
· The drilling rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
· The hydraulic folding mast is safe and convenient to transport
2.Applications of XYC-200 vehicle-mounted hydraulic water well drilling rig
· road and high-rise building foundation exploration
· all kinds of concrete structure inspection holes
· river embankments
· subgrade grouting holes
· drilling and direct grouting
· civil water well
· ground temperature central air conditioners.
3. Parameters of XYC-200 vehicle-mounted hydraulic water well drilling rig
XYC-200 vehicle-mounted hydraulic water well drilling rig | ||
Drilling depth(m) |
30-200 |
|
Drilling diameter(mm) |
300-75 |
|
Drilling angel(mm) |
90-75 |
|
Spindle rotating speed(r/min) |
64/128/287/557 |
|
Spindle stroke(mm) |
450 |
|
|
Main hoisting capacity (single line)(Kg) |
1600 |
|
|
Main hoisting line capacity (m) |
35 |
|
Hoisting speed(r/s) |
17/35/75/151 |
|
Wireline diameter(mm) |
12.5 |
|
Mast height(mm) |
7000 |
|
Mast effective height(mm) |
6500 |
|
Kelly/active pipe(mm) |
59*53 |
|
Drill rod(mm) |
42/50/60 |
|
Drill rig weight(kg) |
1150 |
|
Power unit |
Model |
ZS1115 diesel engine |
Rated power |
14.7kw/2200rpm |
|
|
BW-160 mud pump |
Rated flow(l/min) |
160 |
Rated pressure(mpa) |
1.3 |
|
Driving power(kw) |
5.15 |
|
|
Main machine weight (kg) |
190 |
|
Dimension(mm) |
1110*725*965 |
|
Chassis |

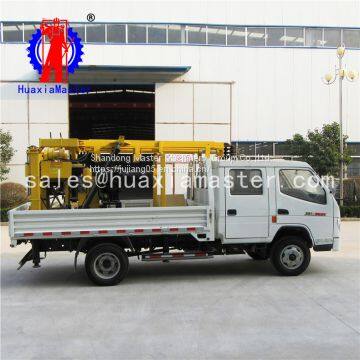

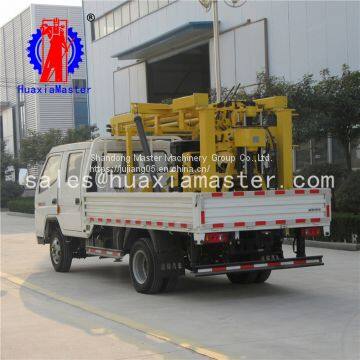

light truck（Pictures of vehicle-mounted drilling rigs for reference only） |
|
