Huaxia Master 260 Meter FY260 Air Water Well Drilling Machine Rock Core Drilling Rig on Sale

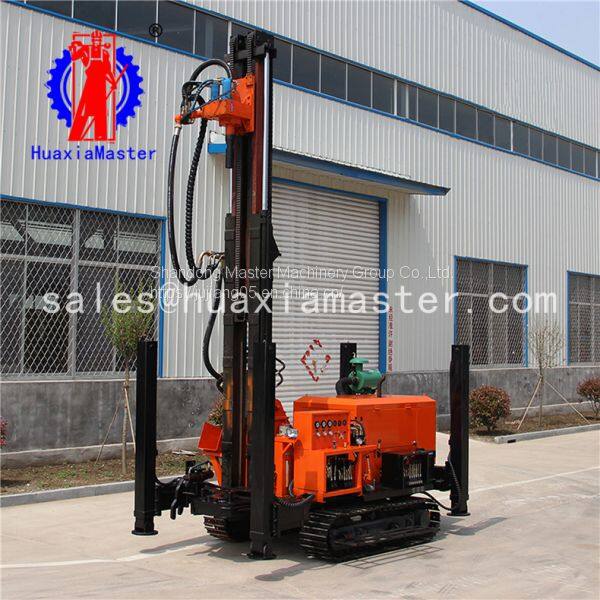

Huaxia Master 260 Meter FY260 Air Water Well Drilling Machine Rock Core Drilling Rig on Sale photo-1

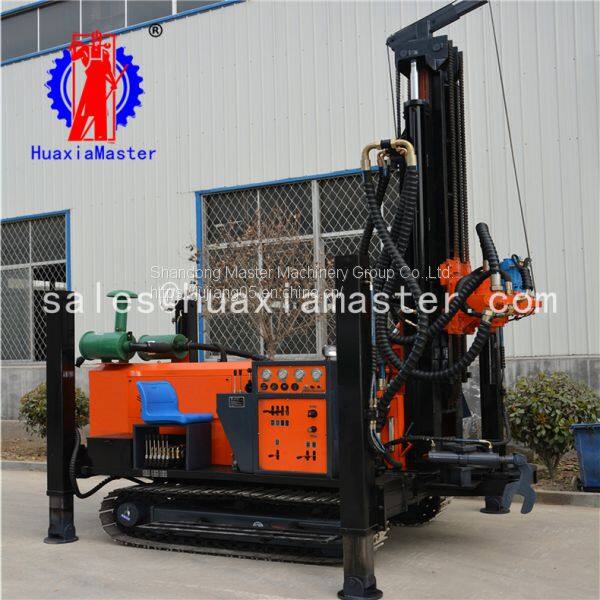

Huaxia Master 260 Meter FY260 Air Water Well Drilling Machine Rock Core Drilling Rig on Sale photo-2

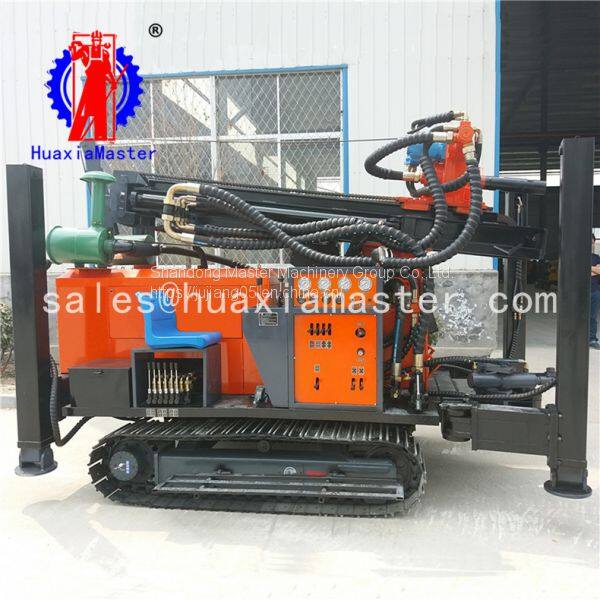

Huaxia Master 260 Meter FY260 Air Water Well Drilling Machine Rock Core Drilling Rig on Sale photo-3

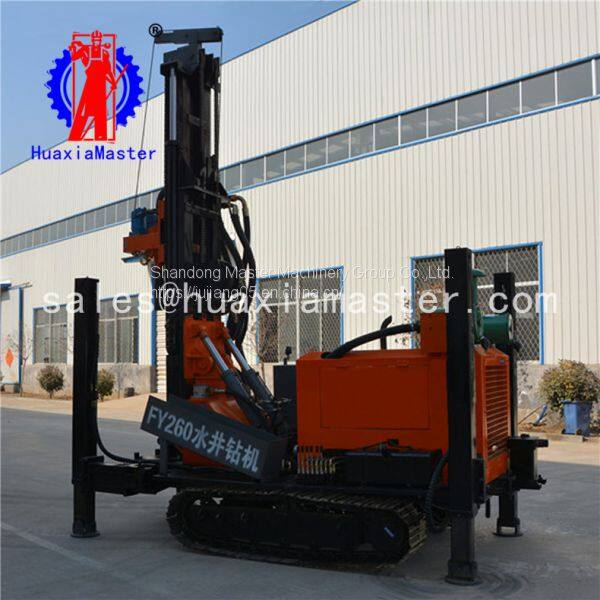

Huaxia Master 260 Meter FY260 Air Water Well Drilling Machine Rock Core Drilling Rig on Sale photo-4
US$ 1300 - 1500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia Master
Place of Origin:
China
Model Number:
FY260
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
3 days
Brand Name Huaxia Master
Place of Origin China
Model Number FY260
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Weight drilling rig
Dimension(L*W*H) 3900*1950*2550mm
Voltage Diesel
Condition New
Power(W) 85kw
CNC or Not CNC
Drilling Speed water well drilling rig

1. The applications of FY260 crawler pneumatic water well drilling rig

· civil engineering drilling

· geothermal drilling,

· drilling with large diameter

· deep drilling footage

· fast, flexible and efficient.

2. The specifications of FY260 crawler pneumatic water well drilling rig

Model

FY260

Gross weight

t

6.2

External dimension

mm

3900*1950*2550

Aperture

mm

140-325

Drilling depth

m

260

Feed stroke

mm

3000

Travel speed

km/h

2.5

Grade ability

max.

30°

Rising height from ground

mm

250

Wind pressure

mpa

1.7-3.0

Air consumption

m³/min

17-35

Engine power

kw

85

Rotary speed

rpm

40-70

Rotation torque

n.m

7000-9000


Product Tags: rock drilling rig , drilling machine , water well drilling rig , water well drilling machine , drilling rig water well , drilling machine water well , air water machine , pneumatic drilling rig , dth drilling rig
