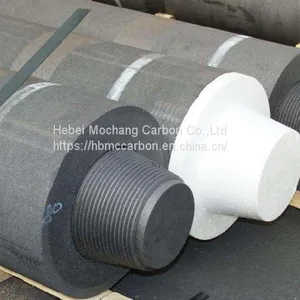

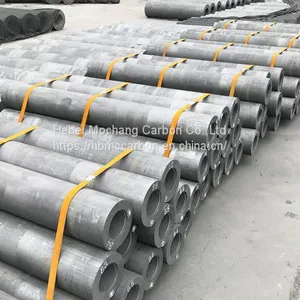

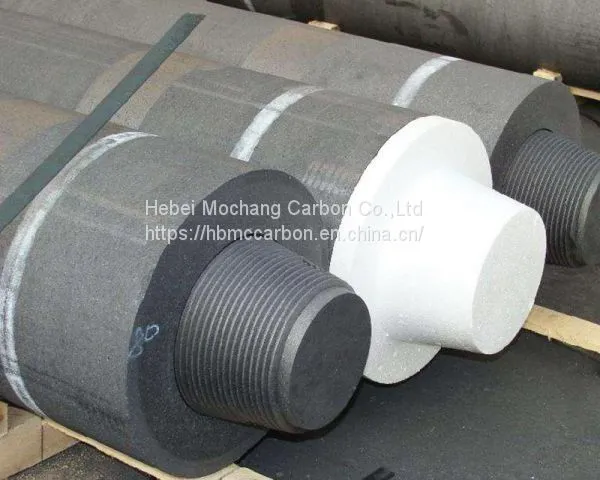

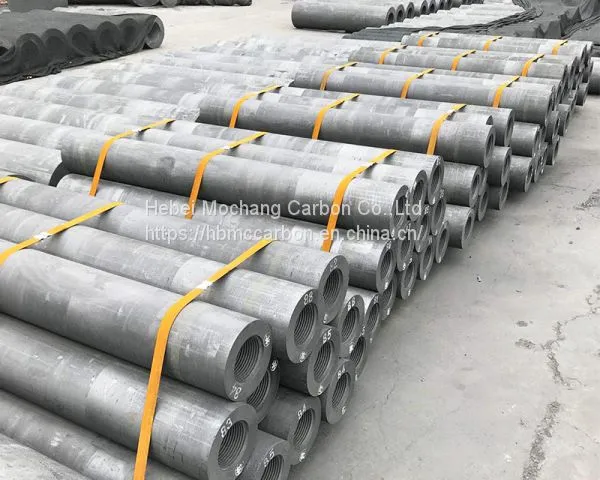

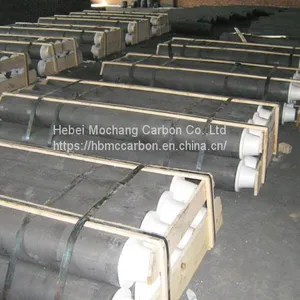

China JILIN Carbon Graphite Electrode,Graphite Electrode,HP Graphite Electrode
Product Name |
China JILIN Carbon Graphite Electrode |
Supplier |
HEBEI MOCHANG CARBON CO.,LTD |
Brand |
MCC |
Grade |
UHP/HP/RP |
Diameter |
200-700mm |
Density |
1.54-1.75g/cm3 |
Specific Resistance |
5.0-8.5uΩ*m(max) |
Application |
Steel melting |
RP Size and Tolerance | |||||||
Diameter (mm) |
Length (mm) |
||||||
Nominal diameter |
Actual diameter |
Nominal length |
Tolerance |
Short feet length |
|||
mm |
inch |
max |
min |
mm |
mm |
max |
min |
200 |
8 |
209 |
203 |
1800/1900/2100/24002700 |
±100 |
-100 |
-275 |
250 |
10 |
258 |
252 |
||||
300 |
12 |
307 |
302 |
||||
350 |
14 |
357 |
352 |
||||
400 |
16 |
409 |
403 |
||||
450 |
18 |
460 |
454 |
||||
500 |
20 |
511 |
505 |
||||
550 |
22 |
556 |
553 |
||||
600 |
24 |
613 |
607 |
||||
Physical and Chemical Index of RP | |||||
Items |
unit |
Diameter: 200-600mm |
|||
Standard |
Test data |
||||
Electrode |
Nipple |
Electrode |
Nipple |
||
Electrical resistance |
μΩm |
8.0-10.5 |
8.5 |
7.0-9.0 |
6.5 |
Flexure strength |
Mpa |
6.4-7.8 |
13 |
9.0-10 |
15 |
Modulus of elasticity |
GPa |
9.3 |
14 |
9 |
13.7 |
Ash content |
% |
0.3 |
0.3 |
0.3 |
0.3 |
Apparent density |
g/cm3 |
1.56 |
1.7 |
1.58 |
1.74 |
Factor of expansion(100-600℃) |
x10-6/℃ |
2.9 |
2.8 |
2.4 |
2.2 |
HP Size and Tolerance | |||||||
Diameter (mm) |
Length (mm) |
||||||
Nominal diameter |
Actual diameter |
Nominal length |
Tolerance |
Short feet length |
|||
mm |
inch |
max |
min |
mm |
mm |
max |
min |
200 |
8 |
209 |
203 |
1800/1900/2100/24002700 |
±100 |
-100 |
-275 |
250 |
10 |
258 |
252 |
||||
300 |
12 |
307 |
302 |
||||
350 |
14 |
357 |
352 |
||||
400 |
16 |
409 |
403 |
||||
450 |
18 |
460 |
454 |
||||
500 |
20 |
511 |
505 |
||||
550 |
22 |
556 |
553 |
||||
600 |
24 |
613 |
607 |
||||
Physical and Chemical Index of HP | |||||
Items |
unit |
Diameter: 200-600mm |
|||
Standard |
Test data |
||||
Electrode |
Nipple |
Electrode |
Nipple |
||
Electrical resistance |
μΩm |
6.5-7.5 |
6.0 |
6.0-7.0 |
5.5 |
Flexure strength |
Mpa |
9.8-10.5 |
14 |
12-15 |
15-18 |
Modulus of elasticity |
GPa |
12 |
16 |
12 |
14 |
Ash content |
% |
0.2 |
0.2 |
0.2 |
0.2 |
Apparent density |
g/cm3 |
1.6 |
1.7 |
1.68-1.73 |
1.75 |
Factor of expansion(100-600℃) |
x10-6/℃ |
2.4 |
2.2 |
2.2 |
2.0 |
UHP Size and Tolerance | |||||||
Diameter (mm) |
Length (mm) |
||||||
Nominal diameter |
Actual diameter |
Nominal length |
Tolerance |
Short feet length |
|||
mm |
inch |
max |
min |
mm |
mm |
max |
min |
200 |
8 |
209 |
203 |
1800/1900/2100/24002700 |
±100 |
-100 |
-275 |
250 |
10 |
258 |
252 |
||||
300 |
12 |
307 |
302 |
||||
350 |
14 |
357 |
352 |
||||
400 |
16 |
409 |
403 |
||||
450 |
18 |
460 |
454 |
||||
500 |
20 |
511 |
505 |
||||
550 |
22 |
556 |
553 |
||||
600 |
24 |
613 |
607 |
||||
700 |
28 |
714 |
708 |
||||
Physical and Chemical Index of UHP | |||||
Items |
unit |
Diameter: 200-700mm |
|||
Standard |
Test data |
||||
Electrode |
Nipple |
Electrode |
Nipple |
||
Electrical resistance |
μΩm |
5.5-6.0 |
5.0 |
5.0-5.8 |
4.5 |
Flexure strength |
Mpa |
10.5 |
16 |
14-16 |
18-20 |
Modulus of elasticity |
GPa |
14 |
18 |
12 |
14 |
Ash content |
% |
0.2 |
0.2 |
0.2 |
0.2 |
Apparent density |
g/cm3 |
1.64-16.5 |
1.70-1.72 |
1.72-1.75 |
1.78 |
Factor of expansion(100-600℃) |
x10-6/℃ |
1.5 |
1.4 |
1.3 |
1.2 |
Mochang supplies UHP & HP & RP Graphite Electrode, Amorphous Graphite Powder, Graphite Block, Graphite Crucible. Our Extruded Graphite has high quality and competitive prices.
If you have any question on Graphite Electrode Block, Graphite Powder, Graphite Block, Graphite Crucible, We will give the professional answers to your questions. For more product information, please click here.
