Product Details
Brand Name: | MCC | Place of Origin: | China |
Product Description
Factory Price Graphite Electrodes For Ladle Furnace,Graphite Electrodes For Ladle Furnace,Graphite Electrodes For Electric Arc Furnace, Graphite Electrode
1. Quick Details
Place of Origin: Hebei, China (Mainland)
Brand Name: MCC
Type: Electrode Block
Application: Steel Making/Smelting Steel
Length: 1600~2800mm
Grade: RP/HP/UHP
Resistance (μΩ.m): 4 - 9 Micro Ohm.m
Apparent Density (g/cm³ ): 1.58 - 1.76 G/cc
Thermal Expansion: 1.5 - 2.8 X10-6 / (100-600 )
Flexural Strength (N/㎡): 8-12 Mpa
ASH: 0.2% ~0.5%

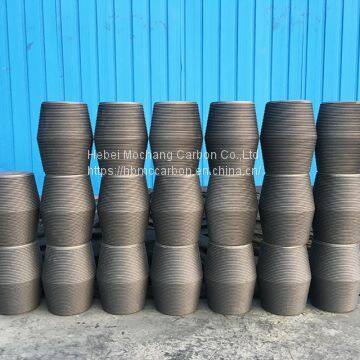

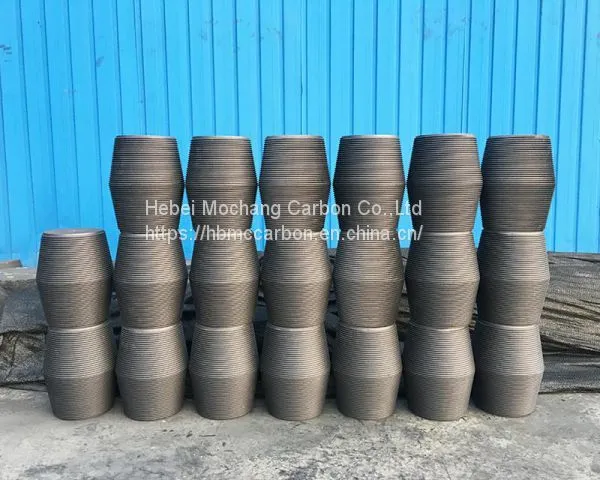

Nipple type: 3TPI/4TPI/4TPIL
Raw Material: Needle Petroleum Coke
Superiority: Low Consumption Rate
Color: Black Gray
Diameter: 200~700mm
Supply Ability: 5000 Tons RP/HP/UHP graphite electrodes per Month

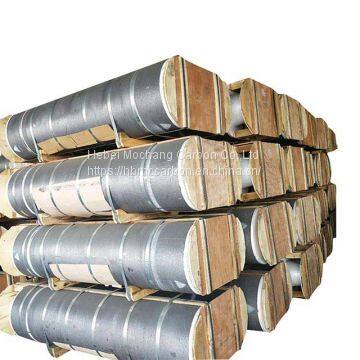

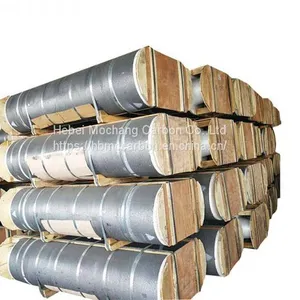

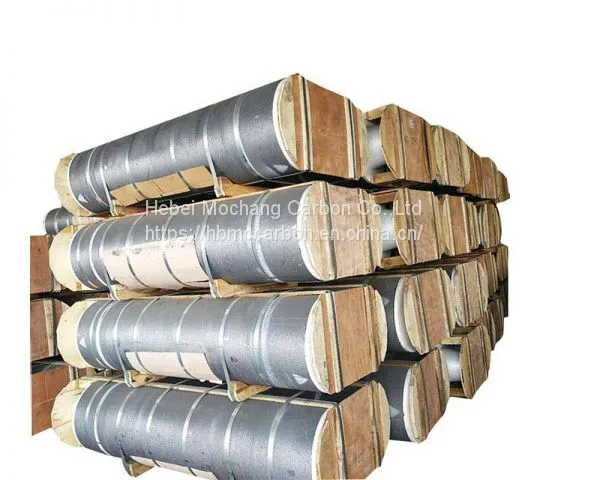

Packaging Details: Standard Package In Pallet
Port:Tianjin Xingang Port
Delivery time:2-3 weeks after receiving the deposit.
2. Specification List
2.1 Size And Tolerance
Size and Tolerance | |||||||
Diameter (mm) | Length (mm) | ||||||
Nominal diameter | Actual diameter | Nominal length | Tolerance | Short feet length | |||
mm | inch | max | min | mm | mm | max | min |
200 | 8 | 209 | 203 | 1800/2000/2200/23002400/2700 | ±100 | -100 | -275 |
250 | 10 | 258 | 252 | ||||
300 | 12 | 307 | 302 | ||||
350 | 14 | 357 | 352 | ||||
400 | 16 | 409 | 403 | ||||
450 | 18 | 460 | 454 | ||||
500 | 20 | 511 | 505 | ||||
550 | 22 | 556 | 553 | ||||
600 | 24 | 613 | 607 | ||||
700 | 28 | 714 | 708 |
2.2 Physical and Chemical Index of RP
Physical and Chemical Index of RP | |||||
Items | unit | Diameter: 200-600mm | |||
Standard | Test data | ||||
Electrode | Nipple | Electrode | Nipple | ||
Electrical resistance | μΩm | 8.0-10.5 | 8.5 | 7.0-9.0 | 6.5 |
Flexure strength | Mpa | 6.4-7.8 | 13 | 9.0-10 | 15 |
Modulus of elasticity | GPa | 9.3 | 14 | 9 | 13.7 |
Ash content | % | 0.3 | 0.3 | 0.3 | 0.3 |
Apparent density | g/cm3 | 1.56 | 1.7 | 1.58 | 1.74 |
Factor of expansion(100-600℃) | x10-6/℃ | 2.9 | 2.8 | 2.4 | 2.2 |
2.3 Physical and Chemical Index of HP
Physical and Chemical Index of HP | |||||
Items | unit | Diameter: 200-600mm | |||
Standard | Test data | ||||
Electrode | Nipple | Electrode | Nipple | ||
Electrical resistance | μΩm | 6.5-7.5 | 6.0 | 6.0-7.0 | 5.5 |
Flexure strength | Mpa | 9.8-10.5 | 14 | 12-15 | 15-18 |
Modulus of elasticity | GPa | 12 | 16 | 12 | 14 |
Ash content | % | 0.2 | 0.2 | 0.2 | 0.2 |
Apparent density | g/cm3 | 1.6 | 1.7 | 1.68-1.73 | 1.75 |
Factor of expansion(100-600℃) | x10-6/℃ | 2.4 | 2.2 | 2.2 | 2.0 |
2.4 Physical and Chemical Index of UHP
Physical and Chemical Index of UHP | |||||
Items | unit | Diameter: 200-700mm | |||
Standard | Test data | ||||
Electrode | Nipple | Electrode | Nipple | ||
Electrical resistance | μΩm | 5.5-6.0 | 5.0 | 5.0-5.8 | 4.5 |
Flexure strength | Mpa | 10.5 | 16 | 14-16 | 18-20 |
Modulus of elasticity | GPa | 14 | 18 | 12 | 14 |
Ash content | % | 0.2 | 0.2 | 0.2 | 0.2 |
Apparent density | g/cm3 | 1.64-16.5 | 1.70-1.72 | 1.72-1.75 | 1.78 |
Factor of expansion(100-600℃) | x10-6/℃ | 1.5 | 1.4 | 1.3 | 1.2 |
Graphite electrode raw material use low sulphur and low ash CPC, coke plant pitch. HP grade graphite electrode add 30% Japan needle coke, UHP grade graphite electrode use 100% needle coke. Widely used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.
Graphite electrode is used in the electric smelting industry, which has properties of superior electric conductivity, thermal conductivity, high mechanical strength, oxidation and corrosion resistance in high temperature.
Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capacity, precise machining accuracy, especially with low sulphur and low ash will not give steel second time to impurity.
Graphite has good chemical stability. The specially processed graphite has the characteristics of corrosion resistance, good thermal conductivity and low permeability.
Mochang supplies UHP & HP & RP Graphite Electrode, Amorphous Graphite Powder, Graphite Block, Graphite Crucible. Our Extruded Graphite has high quality and competitive prices.
If you have any question on Graphite Electrode Block, Graphite Powder, Graphite Block, Graphite Crucible, We will give the professional answers to your questions. For more product information, please click here.
