Low Price RP Graphite Electrodes for Industrial Silicon and Yellow Phosphorus Making,Yellow Phosphorus Graphite Electrode,Graphite Electrode

Low Price RP Graphite Electrodes for Industrial Silicon and Yellow Phosphorus Making,Yellow Phosphorus Graphite Electrode,Graphite Electrode thumbnail-1
Low Price RP Graphite Electrodes for Industrial Silicon and Yellow Phosphorus Making,Yellow Phosphorus Graphite Electrode,Graphite Electrode thumbnail-2
Low Price RP Graphite Electrodes for Industrial Silicon and Yellow Phosphorus Making,Yellow Phosphorus Graphite Electrode,Graphite Electrode thumbnail-3
Low Price RP Graphite Electrodes for Industrial Silicon and Yellow Phosphorus Making,Yellow Phosphorus Graphite Electrode,Graphite Electrode photo-1
Low Price RP Graphite Electrodes for Industrial Silicon and Yellow Phosphorus Making,Yellow Phosphorus Graphite Electrode,Graphite Electrode photo-2
Low Price RP Graphite Electrodes for Industrial Silicon and Yellow Phosphorus Making,Yellow Phosphorus Graphite Electrode,Graphite Electrode photo-3
Negotiable MOQ: 10 Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MCC
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Hebei Mochang Carbon Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang port, Tianjin
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MCC
Place of Origin China

Low Price RP Graphite Electrodes for Industrial Silicon and Yellow Phosphorus Making,Yellow Phosphorus Graphite Electrode,Graphite Electrode

1. Quick Details

Place of Origin: Hebei, China (Mainland)

Brand Name: MCC

Type: Electrode Block

Application: industrial silicon and yellow phosphorus making

Length: 1600~2800mm

Grade: RP

Resistance (μΩ.m): ≤8.5

Apparent Density (g/cm³ ): ≥1.54

Thermal Expansion: ≤2.9 X10-6 / (100-600 )

Flexural Strength (N/㎡): ≥8.5Mpa

ASH: 0.5% max

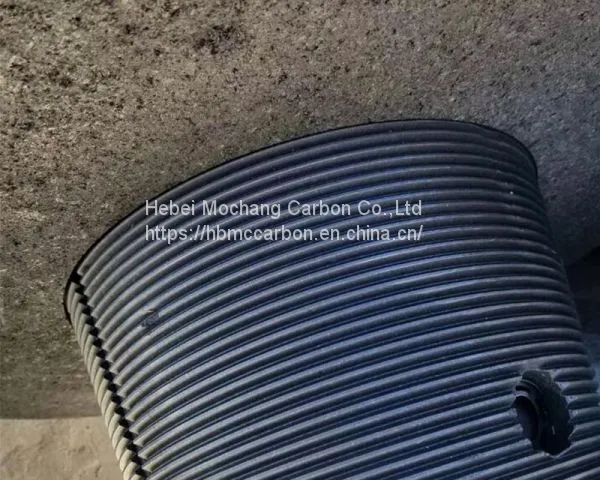

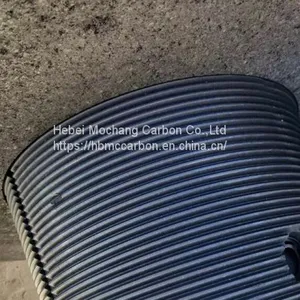

Nipple type: 3TPI/4TPI/4TPIL

Raw Material: Needle Petroleum Coke

Superiority: Low Consumption Rate

Color: Black Gray

Diameter: 200~700mm

Supply Ability: 5000 Tons RP/HP/UHP graphite electrodes per Month

Packaging Details: Standard Package In Pallet

Port:Tianjin Xingang Port

Delivery time:2-3 weeks after receiving the deposit.



2. Specification List

2.1 Size And Tolerance

Size and Tolerance

Diameter (mm)

Length (mm)

Nominal diameter

Actual diameter

Nominal length

Tolerance

Short feet length

mm

inch

max

min

mm

mm

max

min

200

8

209

203

1800/2000/2200/23002400/2700

±100

-100

-275

250

10

258

252

300

12

307

302

350

14

357

352

400

16

409

403

450

18

460

454

500

20

511

505

550

22

556

553

600

24

613

607

700

28

714

708

2.2 Physical and Chemical Index

Physical and Chemical Index

Items

unit

Diameter: 200-600mm

Standard

Test data

Electrode

Nipple

Electrode

Nipple

Electrical resistance

μΩm

8.0-10.5

8.5

7.0-9.0

6.5

Flexure strength

Mpa

6.4-7.8

13

9.0-10

15

Modulus of elasticity

GPa

9.3

14

9

13.7

Ash content

%

0.3

0.3

0.3

0.3

Apparent density

g/cm3

1.56

1.7

1.58

1.74

Factor of expansion(100-600℃)

x10-6/℃

2.9

2.8

2.4

2.2

Mochang supplies UHP & HP & RP Graphite Electrode, Amorphous Graphite Powder, Graphite Block, Graphite Crucible. Our Extruded Graphite has high quality and competitive prices.

If you have any question on Graphite Electrode Block, Graphite Powder, Graphite Block, Graphite Crucible, We will give the professional answers to your questions. For more product information, please click here.
