Brand Name EASTTESTER
Place of Origin China
Model Number ET2725A

Summary of functions:

ET2725 process calibrator is a multifunctional, high-precision portable instrument. Specially designed for process control, is suitable for the industrial field debugging, can meet the requirements of a wide range of tasks, support source volts, current, resistance temperature detectors (RTD), thermocouples (TC), frequency, and ohms. measure and source all process parameters, such as measurement and Output can also be calibrated to secondary instruments that can measure these parameters with accuracy of 0.02%.



Product features:



Super-strong protection:The waterproof grade is IP67. Automatic protection against the signal terminals connect to the 220V

A split-screen display. The upper display allows you to measure volts, current (with loop power), resistance and continuity test. The lower display allows you to measure and source volts, current, resistance temperature detectors (RTD), thermocouples (TC), frequency, and ohms.

The accuracy 0.02% or 0.05%.

Calibrates a transmitter using the split-screen.

The measure of thermocouple provides automatic reference junction.

Automatic and manual cold end temperature compensation for TC.

Manual stepping and automatic stepping and ramping.

APSL intelligent pressure module with high precision can be selected according to customer needs to realize pressure measurement function.



Summary of Source and Measure Functions

Function

Measure

Source

DC V

0~60V (the upper display ± 30V)

0~10V

DC mA

0~24mA (the upper display ± 24mA)

0~24mA

Frequency

1.000Hz ~ 100.00kHz

0.00Hz~20.000kHz

Resistance

0~3200Ω

0~3200Ω

DC mV

0~100mV (the upper display ± 200mV)

0~100mV

RTD

Pt100, Pt1000, Cu50, Cu100

Pt100, Pt1000, Cu50, Cu100

TC

E, J, K, T, B, R, S, N

E, J, K, T, B, R, S, N

Others

Loop supply, Step, Ramp, Dual display

  Specifications

Specifications are based on a one year calibration cycle and apply from +18 ºC to +28ºC unless stated otherwise. All specifications assume a 10 minute warmup period.

DC Voltage Measurement

Range

Maximum measurement range

Resolution

Accuracy ( % of reading + counts)

ETX-2725B(0.05)

ETX-2725A(0.02)

28V

(upper display)

-33V~33V

0.001V

0.05+2

0.025+2

200mV

(upper display)

-200mV~200mV

0.01mV

0.05+2

0.025+2

50V

(lower display)

-1V~60V

0.001V

0.05+2

0.02+2

100mV

(lower display)

-15mV~125mV

0.01mV

0.05+2

0.02+2

-10°C~18°C,+28°C~55°C temperature coefficient,±0.005%FS/°C.

Input resistance: >1MΩ.

  DC mA measurement

Range

Maximum measurement range

Resolution

Accuracy ( % of reading + counts)

ETX-2725B(0.05)

ETX-2725A(0.02)

20mA

(upper display)

-24mA~24mA

0.001mA

0.05+2

0.025+2

20mA

(loop of upper display)

0~24mA

0.001mA

0.05+2

0.025+2

20mA

(lower display)

0~24mA

0.001mA

0.05+2

0.02+2

-10°C~18°C,+28°C~55°C temperature coefficient,±0.005%FS/°C..

Input resistance:Ω.





General Technical Specifications



The other parameters

Temperature: - 10 ℃ ~ 55 ℃

Storage temperature: - 20 ℃ ~ 60 ℃

Weight: 650 grams

Dimensions: 200mm*96mm*47mm

Power supply: 6Pcs AAA battery ni-mh or AC ADAPTER



Communication channel: RS232

18P02 communication wires

Power adapter(18A52)

Probes(18A53)


Our Company

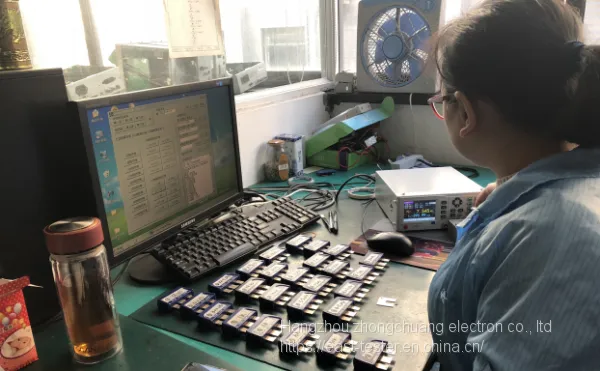

Factory


OEM and ODM Founded in 2003
Trademark: EASTTESTER
Certificate: ISO9001, CE, ROHS

Cathy Tel : 13396517215 / 057156770221

www. east-tester.com


Exhibition

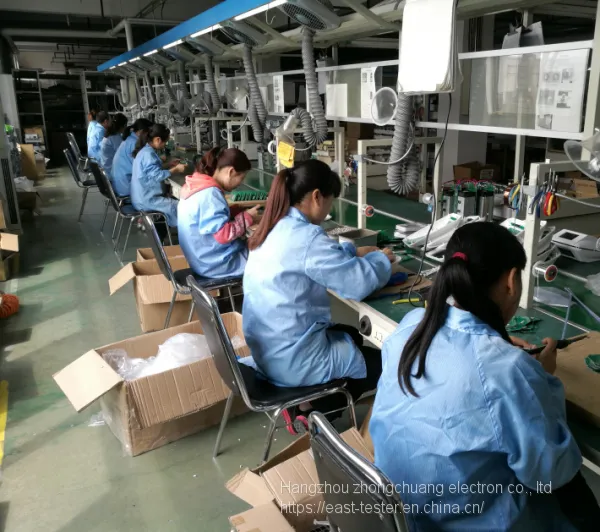

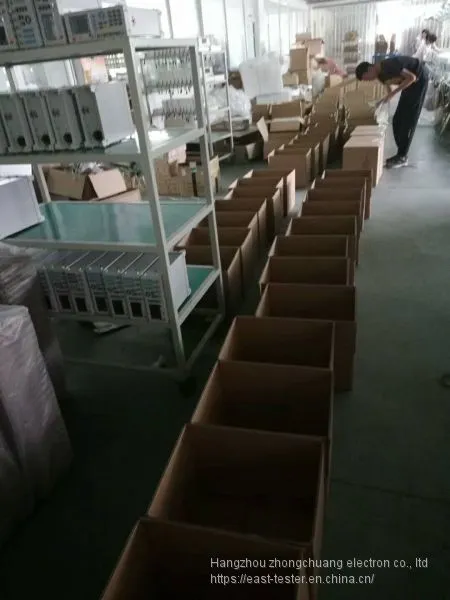

Workshop

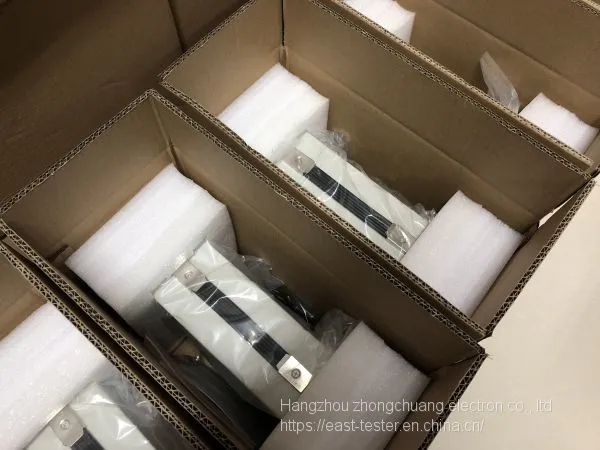

Packing and Delivery





Product Tags: handheld calibrator , china calibrator , high precision process calibrator
