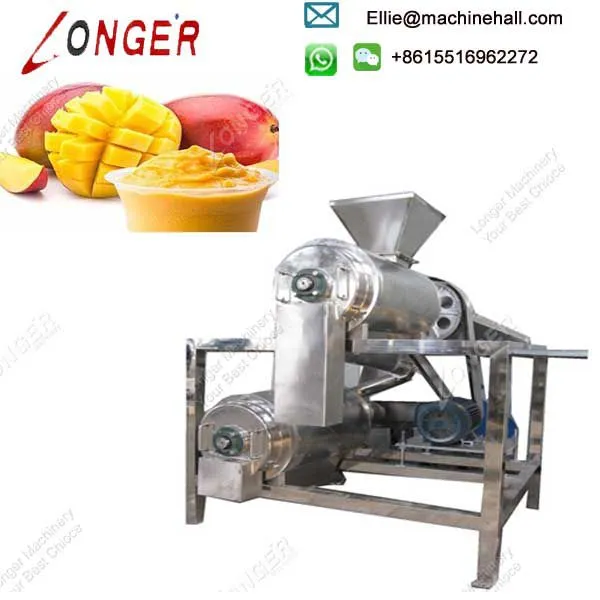

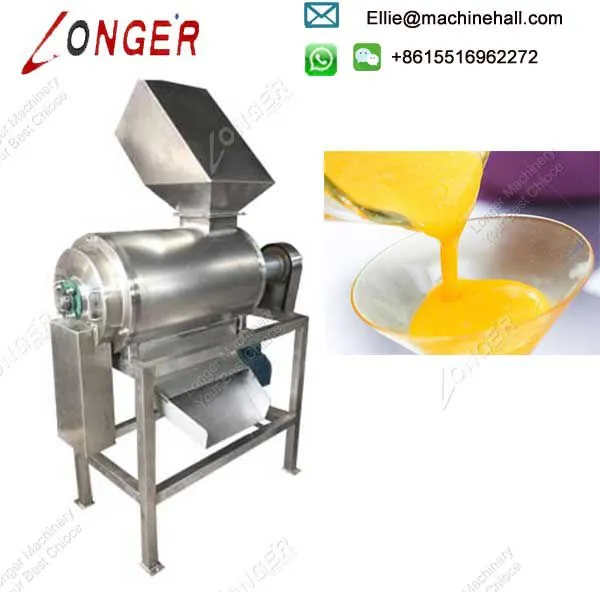

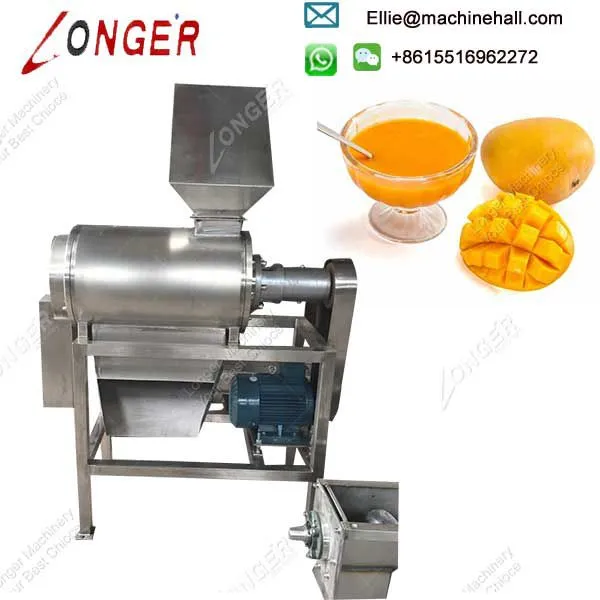

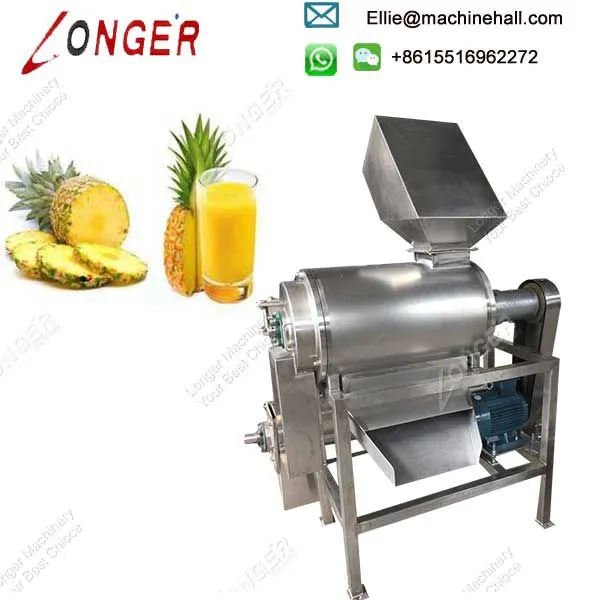

Commercial Pulp Making Mango Juicer Machine
Introduction:
This Mango Pulping Making Extraction Mango Juice Maker is used for stone fruits(Mango, peach, apricot ), Soft fruits(Kiwi fruit, strawberry) and kernel fruits (apple, pear etc ). The feature is Slag pulp, skins, seeds, nuts separate automaticly. No matter they are hard one or soft, it adopts high-speed working principle of multi-tool, easy to operate, functional and adaptable, it can keep the moisture and inner structure no damaged, thus to retain the original taste of vegetables and fruits.
Features of Mango Pulping Machine:
1. Mango pulping machine is made by high quality 304 stainless steel.
2. It can Combination on the production line to line production, and also can use alone.
3. All can contact with raw material use stainless steel and High quality edible rubber. Good corrosion resistance, Not contaminated material, ensure food hygiene.
4. This machine only need change the different specific screen and adjust the lead angle of scraper. Then can change the pulping speed, and obtain satisfied effect.
5.Used in beating and residues discharging of fruits and vegetables,automatic residues discharging.
6.Pulping thickness is adjustable, obtaining satisfied effect.
7.The rotating speed is slow, can keep original nutrition in fruits and vegetables.
8.Practical, convenient to clean and repair.
9.It is an important equipment for food processing enterprises.
10.Working speed can be adjusted by frequency conversion device.
Principle of the mango beating machine:
The main structure consists of: transmission, bearing, shaft sleeve, barrel cover, block pulp tray, Flashlight, spline shaft, screen, scraper (or beating stick), the front cylinder cover and racks.
When the machine is working, motor through V-belt drive, high-speed rotation of the rotor member, fruit from the inside feeding machine, feeding auger blade material will stick to the beating, beating under the action of the rod, the material to be pounded. Due to centrifugal force, the material in the juice and meat (become slurry) through a mesh sieve into the next process, nuclear by tapping the paddles discharged slag outlet, enabling automatic pulp separation.
The parameters of mango juice processing machine:
| Model | LG-1 |
| Capacity | 50-100kg/h |
| Power | 3KW |
| Voltage | 380v |
| Enucleated (peeled) Speed | 100-500r/min (frequency control) |
| Beating Speed | 860r/min |
| Beating mesh aperture | φ0.6-φ1.0mm |
| Dimension | 1350×770×1500mm |
This is the machine video.
