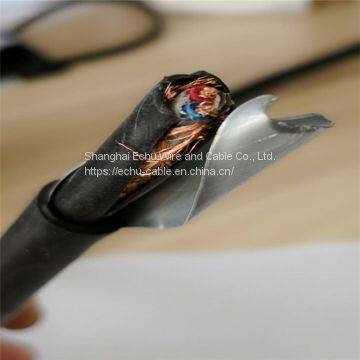

ECHU Factory Produce 1.5mm2 Shielded twist pair and Armoured data cable
- 10000000 Kilometer / Kilometers per Month
- SHANGHAI PORT
- T/T D/P D/A Other
- 7 days
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
- 3x185mm2 Overhead Insulated Cable
- Service Drop Cable XLPE/PVC/PE Insulated
Product Details
Brand Name: | ECHU | Place of Origin: | China | Model Number: | RVVSP22 RVSP22 |
Type: | Insulated | Application: | Heating | Insulation Material: | PVC |
Conductor Material: | Copper | Conductor Type: | Stranded |
Product Description
Applications:
The cable is suitable for machine tools production, the installation engineering of complete equipment, power stations, air-conditioning system, heating systerm, refrigeratory equipments, Office Automation
equipments.data processing system and other related situations.
Properties:
Has good mechanical, electrical insulation, and chemical properties. It also has the property of anti electromagnetic wave due to the double shidlded structure.
Structure:
Conductor: copper acc. VDE0295CLASS 5
Insulation: Special PVC
Colour: ≤0.5mm Black, brown, light blue, purple, pink, orange,blue
≥0.5mm:Black with white number above 3 cores will have yellow and green earth cables
Inner liner: PP tape or aluminum foil shield
Braiding: bare or tinned copper braid
Sheath: pvc 70℃ sheath, black (RAL9005)or grey(RAL 7001); or acc. to DESINA
Twisted Pair Shield and Steel Tape Armored.
Standards:JB8734.4-1998 GB5023.5-1997
Technical data:
Minimum bending radius:
Fixed Installation: 6X outer diameter
Flexing Installation: 15X outer diameter
Temperature range:
Fixed Installation: -30℃ to +70℃
Flexing Installation: -10℃ to +70℃
Test voltage(v):
≤0.5mm: 2000V
≥0.5mm: 2500V
woking voltage(V):
≤0.5mm: 300/300V
≥0.5mm: 300/500V
