Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > TVVB FLAT ELEVATOR CABLE

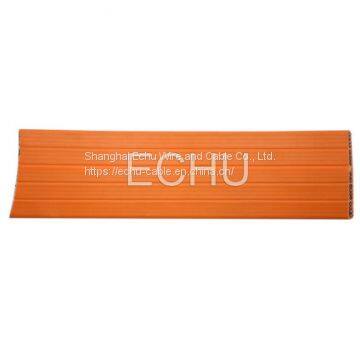

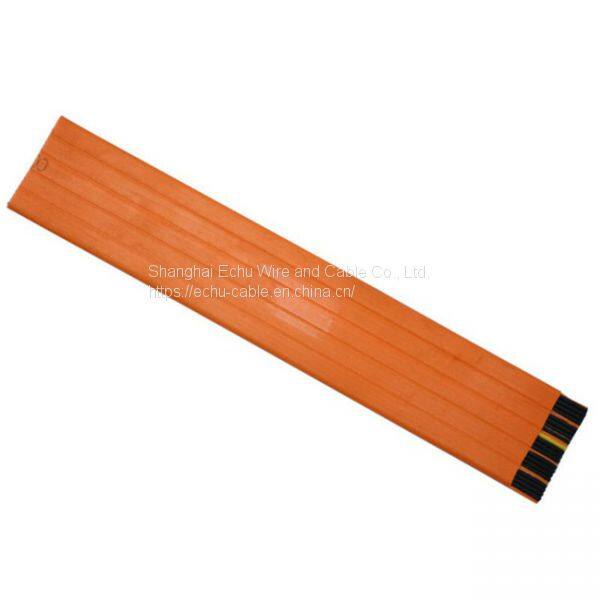

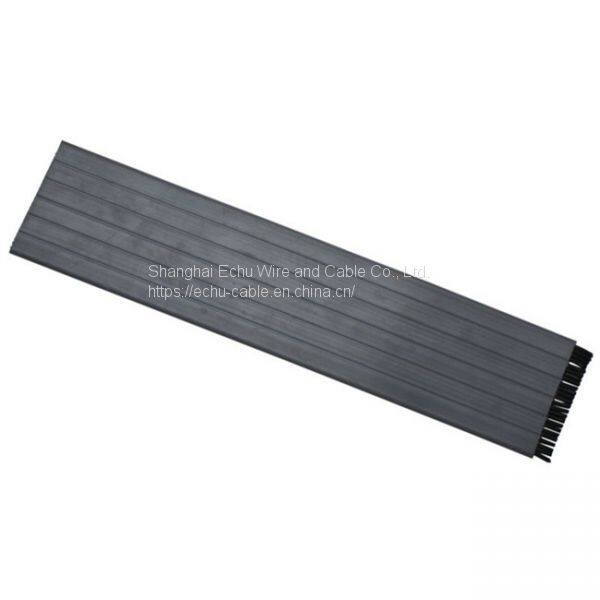

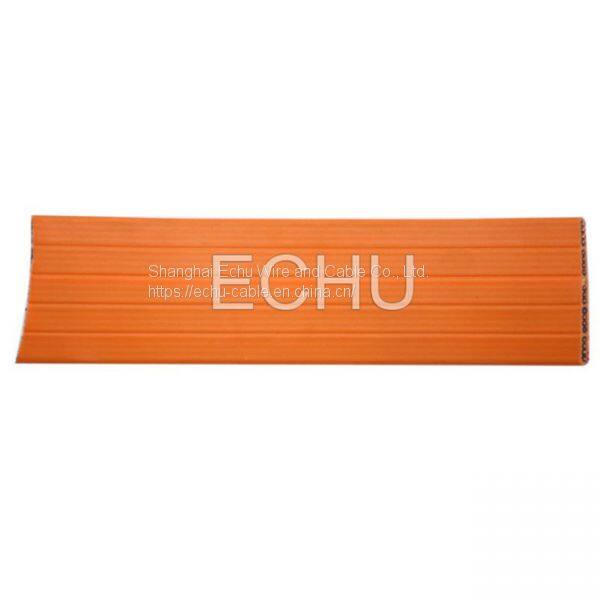

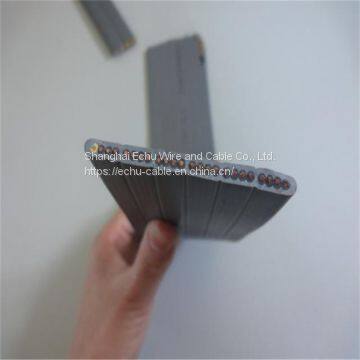

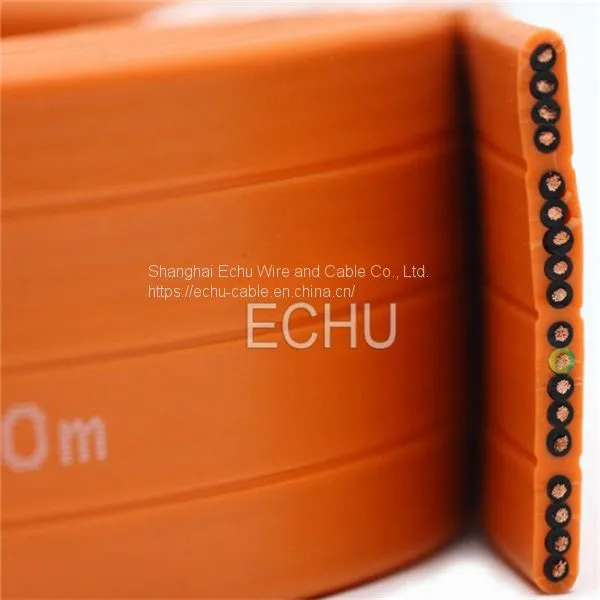

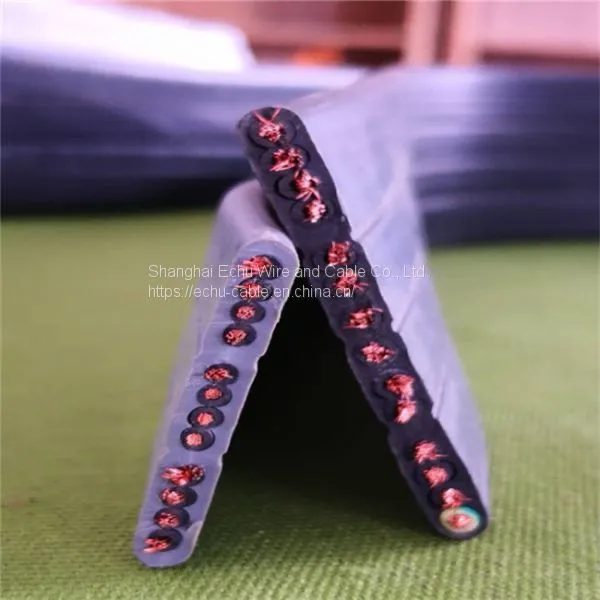

TVVB FLAT ELEVATOR CABLE

Name: TVVB FLAT ELEVATOR CABLE
Brand: ECHU
SKU: 159649183
Availability: InStock

US$ 0.5 - 50 MOQ: 300 Meters

Key Specifications

Get Latest Price

Brand Name:

ECHU

Place of Origin:

China

Model Number:

TVVB TVVBG TVVBP 05VH6-F

Contact Supplier Request Quote Chat Now

Shanghai Echu Wire And Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI PORT

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name ECHU

Place of Origin China

Model Number TVVB TVVBG TVVBP 05VH6-F

Application Overhead

Insulation Material PVC

Jacket PVC

Conductor Material Copper

Approvals: CCC & CE approval

Conductor:bare copper , VDE 0295 class 5
Insulation:special PVC
Sheath: special PVC
flexible, wear -resistant ,cold-resistant

Range of application:
As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.
Properties:
The outer sheath is extensively resistant to oil and cooling liquid.
Standards:GB5023.6,IEC60227-6,EN 50214
Structure:
Conductor: fine strands of bare copper wire,
Acc.to VDE0295 CLASS5
Insulation:special PVC
Colour:yellow,white,orangeg with black number with white digital coding
Bearing:steel rope
Outer sheath:flexible PVC,cold resistance ,flame resistance

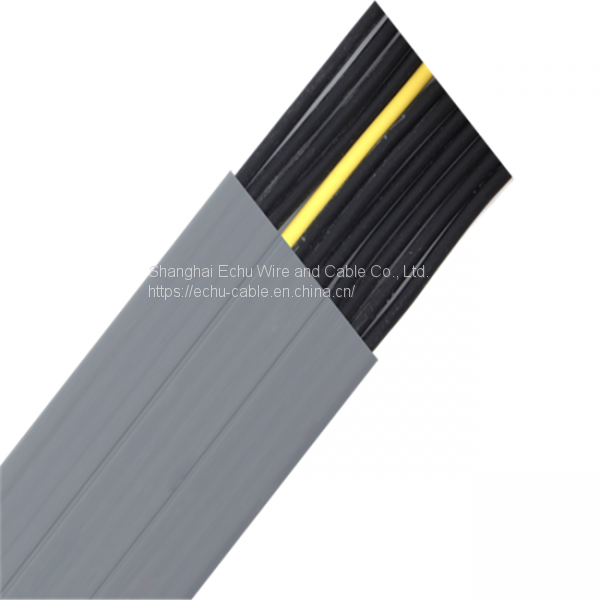

Colour:grey(RAL7001)
Technical data:
Rated voltage:300/500V
Test voltage:2500V
Minimum bending radius:0.3mBurning vertically test:GB/T18380.1-2001
IEC60332-1.1 993 test passed
Used under the nomal conditions.the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C
TVVB (Parallel) free suspension length must not exceed 35 meters,and the lift speed 1.6m/s.
TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.
