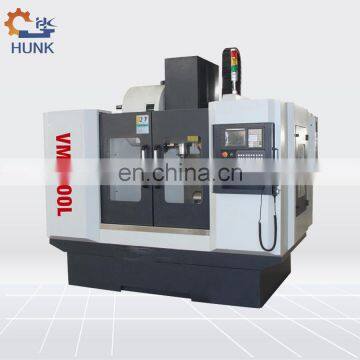

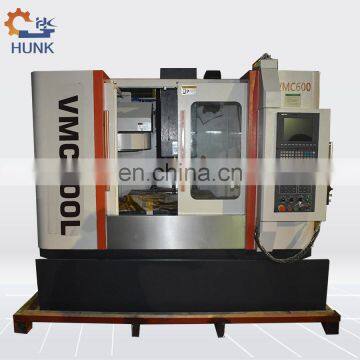

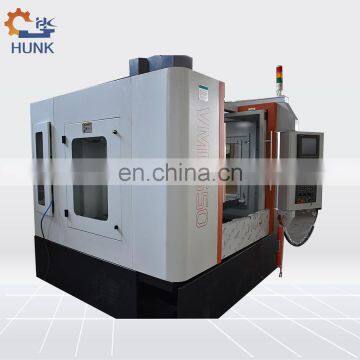

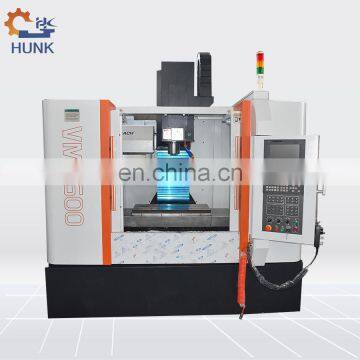

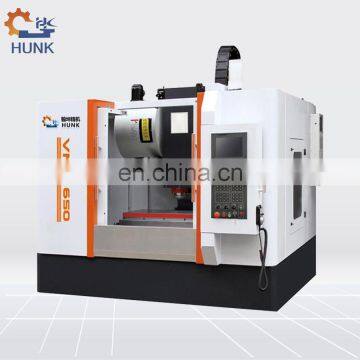

CNC MACHINE TOOL EQUIPMENT OF CNC MILLING MACHINE
- 60 Set / Sets per Month
- Qindao Port
- T/T Credit Card
Product Details
Brand Name: | HUNK | Place of Origin: | Shandong, China | Model Number: | VMC600L |
Type: | Vertical | Certification: | ISO9001:2008 CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 13 Months | Weight: | 3500kg | Dimension(L*W*H): | 2200x2100x2200mm |
Voltage: | 380V/50Hz | Condition: | New | Power(W): | 5.5kw |
Product Description
Vertical machining centre (VMC) is designed for Mold & Die Industry. 3 axes are adopted roller type linear guide ways to realize the best reliability and to ensure the highest performance on speed, precision, and rigid cutting requirements. Combining surface between spindle and motor are through scraping to ensure spindle performance and accuracy.
Unit | VMC350L | VMC460L | VMC600L | |
Table Size | mm | 690×230 | 800×300 | 800×360 |
Load Capacity | kg | 150 | 200 | 350 |
T Slot |
| 3-16-63 | 3-14×80 | 3-14×115 |
X-axis Travel | mm | 350 | 460 | 600 |
Y-axis Travel | mm | 260 | 320 | 400 |
Z-axis Travel | mm | 350 | 460 | 500 |
Distance from Spindle Nose to Table | mm | 90-440 | 90-550 | 100-600 |
Distance from Spindle Center to Column Slide Way | mm | 294 | 395 | 430 |
Tool Shank |
| BT30 | BT30/BT40 | BT40 |
Spindle Speed | rpm | 10000 | 10000 | 10000 |
Spindle Motor Power | kw | 2.2 | 3.7 | 5.5 |
Max. Diameter of Tool | mm | Φ30/φ80 | Φ80/φ120 | Ø120×200 |
Max.Length of Tool | mm | 120 | 200 | 350 |
Max. Weight of Tool | kg | 3 | 6 | 8 |
X/Y -axis Rapid Moving Speed | mm | 10000 | 10000 | 10000 |
Z-axis Rapid Moving Speed | mm | 10000 | 10000 | 10000 |
Feed Rate | mm/min | 1-4000 | 1-4000 | 1-10000 |
Positioning Accuracy | mm | 0.02 | ±0.012 | 0.01 |
Repeated Positioning Accuracy | mm | 0.01/300 | 0.007 | 0.007 |
Out Dimension | mm | 1520×1300×1800 | 1850×1800×1900 | 2200×2100×2200 |
Machine Weight | kg | 1500 | 2500 | 3500 |
Vertical Machining Center: X/Y/Z Axis Travel 600/400/500mm; BT40 Taper Spindle; 5.5 KW Spindle Motor, Belt Drive; 8000/10000/12000RPM Spindle Speed; 16-station Tool Changer; 10m/min Rapid Speed; 256MB Program Memory; 15" color LCD Monitor; USB Port.
(1) A Rigid Worktable (2) Massive Cast-iron Construction (3) Triangulated Wide-Stance Castings (4) Anti-Flex, Reinforced Base & Column Castings | (5)Taiwan HIWIN P4 Class Ball Screw (6)Taiwan PMI/HIWIN C3 Class Linear Way (7)Directed-Coupled Servomotors
| (8)High-Capacity Cartridge Taiwan Spindle,ROYAL/KENTURN/POSA (9)Belt Drive Spindle, BT40/50 Taper |
(10)High Speed Taiwan OKADA 12/16/24/32 Tool Magazine/Tool Changer (11)Coolant System, Coolant Pump, Coolant Tanke | (12)Automatic Lubrication System (13)Coolant Nozzle/Coolant Through Spindle (14)High-Instensive Lighting System (15)Air Gun Holster | (16)SIEMENS/FANUC/MITSUBISHI/GSK/KND CNC Control System (17)Multi-Function Jog Handle/MPG (18)Electric Cabinet Heat Exchanger/ Air Conditioner |
Shandong Hunk Precision Machinery Co., Ltd. is a CNC machine tools company, located in the beautiful capitcal Jinan city, integrated with manufacturing, processing and selling. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 40,000 square meters. We have a number of technicians who have more than 20 years experience of machine tool design and assembly. Our main products including cnc vertical machining center, cnc horizontal machining center, double column cnc machining center, slant bed cnc lathe and flat bed cnc lathe. With superior equipment, advanced technology, detection devices,and the imported parts from Taiwan, Japan, Germany, our machines enjoy good fame home and abroad. Approved by C E certification and S G S authentication, our machines are welcomed by customers not only from domestic market but also from Turkey, Norway, Serbia, Slovakia, Russia, Ukraine, Syria, Bangladesh, Pakistan, India, USA, Mexico, Argentina.
Testing & Quality Control Before Shipment
Overseas After Sales Service
Customer Acceptance Test At Manufacturer's Side
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A:Twelve months warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
