Cnc Aluminum or Steel Mold Milling Machine for Sale in Dubai

FOB Price

USD $20,000 - $29,000 / Unit

1 Unit(Min.Order)

Supply Ability 300 Unit / Units per Month
Port Qingdao Port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	HUNK/OEM	Place of Origin:	Shandong, China	Model Number:	VMC850L
Type:	Vertical	Certification:	ISO CE SGS	After-sales Service Provided:	Engineers available to service machinery overseas
Warranty:	13 Months	Weight:	5500KG	Dimension(LWH):	2.62.22.55
Voltage:	Customized	Condition:	New	Power(W):	7.5Kw

Product Description

Technical Parameter

Item	Unit	VMC350	VMC460	VMC600	VMC850
Table size	mm	690*230	800*300	800*360	1000*500
Load capacity	kg	150	200	350	500
T slot		3-16-63	3-14*80	3-14*115	5-18*90
X axis travel	mm	350	460	600	800
Y axis travel	mm	260	320	400	500
Z axis travel	mm	350	460	500	500
Distance from spindle center to table	mm	90-440	90-550	100-600	150-650
Distance from spindle center to column slideway	mm	294	395	430	550
Tool shank		BT30	BT30/BT40	BT40	BT40
Spindle speed	rpm	10000	10000	10000	8000
Spindle motor Power	kw	2.2/3.7	3.7	5.5	7.5
Max Length of tool	mm	120	200	350	250
Max weight of tool	kg	3	6	8	8
X/Y axis rapid moving speed	mm/min	20000	20000	20000	48000
Z axis rapid moving speed	mm/min	20000	20000	20000	48000
Position accuracy	mm	0.02	0.02	0.015	0.008
Reposition accuracy	mm	0.01/300	0.007	0.0075	0.002
Dimension	mm	152013001800	185018001900	220021002200	270024002600
Weight	kg	1200	1900	2600	5500

Product Description

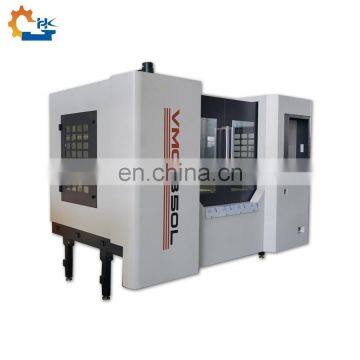

Cnc Aluminum or Steel Mold Milling Machine for Sale in Dubai VMC850

Product Application

1. It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts.
2. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process .
3. It is suitable for many varieties, medium and small batch production.
4. It can finish the processing of complex, high precision parts .
5. It can be matched the four rotary shaft , in order to meet the requirements of special parts.

Vertical machining center feature:

This VMC is suitable for the mechanical and mold making. And it can adapt to the processing requirement from rough machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.

Vertical CNC machining center configuration :

High quality resin sand
Japan NSK bearing;
Taiwan spindle;
Germany R+W coupling
Taiwan ball screw and locking nut;
Automatic lubrication system;
Taiwan pressure cylinder;

Chip conveyor are optional.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	Depends on the different machine model
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
