Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer

Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer thumbnail-1
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer thumbnail-2
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer thumbnail-3
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer thumbnail-4
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer thumbnail-5
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer thumbnail-6
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer thumbnail-7
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer photo-1
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer photo-2
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer photo-3
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer photo-4
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer photo-5
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer photo-6
Mitsubishi Cnc Controller Milling Machine With Automatic Tool Changer photo-7
US$ 20,000 - 29,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
HUNK/OEM
Place of Origin:
Shandong, China
Model Number:
VMC850L
Contact Supplier Request Quote Chat Now
Turn Mill CNC Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUNK/OEM
Place of Origin Shandong, China
Model Number VMC850L
Type Vertical
Certification ISO CE SGS
After-sales Service Provided Engineers available to service machinery overseas
Warranty 13 Months
Weight 5500KG
Dimension(L*W*H) 2.6*2.2*2.55
Voltage Customized
Condition New
Power(W) 7.5Kw
Company Information

Mitsubishi Cnc Controller Milling Machine with Automatic Tool Changer


                                Shandong Hunk Precision Machinery Co.,Ltd


The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Detailed Images

Main Configuration

1) Taiwan Hiwin screw and PMI linear guidway or roller type guideway
2) OKADA/AIMACH tool magazine
3) FANUC / SIEMENS / GSK / MITSUBISHI /SYNTEC for options
4) Taiwan 4 axis Bar type or bridge type and 5 axis configuration for choosing
5) Full covered protection and Thri-color alarming light
6) CTS coolant from spindle
7) KENTURN/POSA/ROYAL spindle
8) High quality casting frame
9) 12 months warranty and perfect consult service and after-sale service
10) Low cost machine from factory directly

FANUC / SIEMENS / GSK / MITSUBISHI /SYNTEC                      KENTURN/POSA/ROYAL spindle

 for options

Taiwan Hiwin Ball Screw

Taiwan or German Brand Linear Guideway, Hard box rial is optional

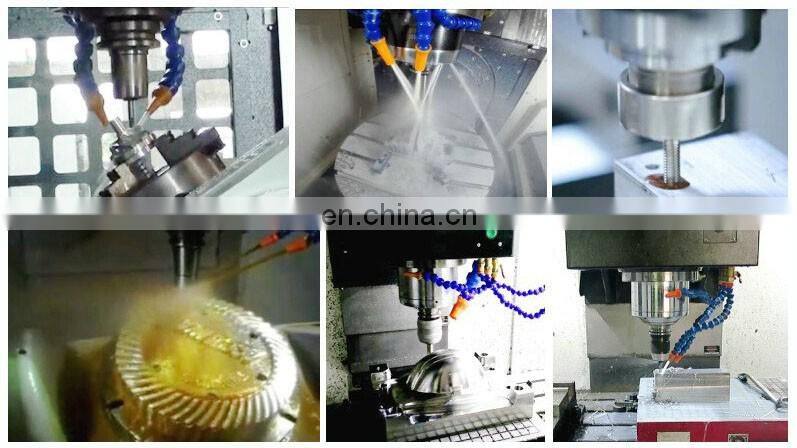

VMC cnc machining center processing photos:

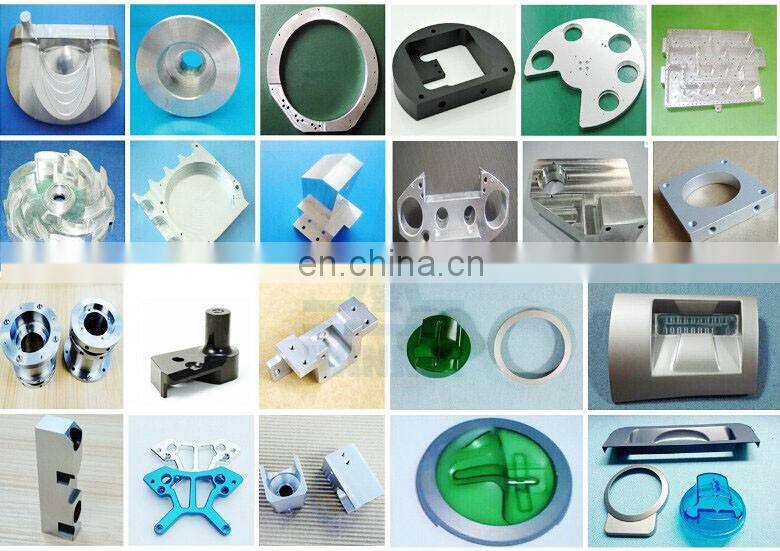

Workpiece Samples:

Technical Parameter
Item
Unit
VMC350
VMC460
VMC600
VMC850
Table size
mm
690*230
800*300
800*360
1000*500
Load capacity
kg
150
200
350
500
T slot

3-16-63
3-14*80
3-14*115
5-18*90
X axis travel
mm
350
460
600
800
Y axis travel
mm
260
320
400
500
Z axis travel
mm
350
460
500
500
Distance from spindle center to table
mm
90-440
90-550
100-600
150-650
Distance from       spindle center to     column slideway
mm
294
395
430
550
Tool shank
BT30
BT30/BT40
BT40
BT40
Spindle speed
rpm
10000
10000
10000
8000
Spindle motor       Power
kw
2.2/3.7
3.7
5.5
7.5
Max Length of        tool
mm
120
200
350
250
Max weight of        tool
kg
3
6
8
8
X/Y axis rapid       moving speed
mm/min
20000
20000
20000
48000
Z axis rapid          moving speed
mm/min
20000
20000
20000
48000
Position accuracy
mm
0.02
0.02
0.015
0.008
Reposition             accuracy
mm
0.01/300
0.007
0.0075
0.002
Dimension
mm
1520*1300*1800
1850*1800*1900
2200*2100*2200
2700*2400*2600
Weight
kg
1200
1900
2600
5500
Certifications

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.


“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
Depends on the different machine model



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
