Hot Sale and Low Price China Cnc Machines Milling Machining Center VMC850

Product Application

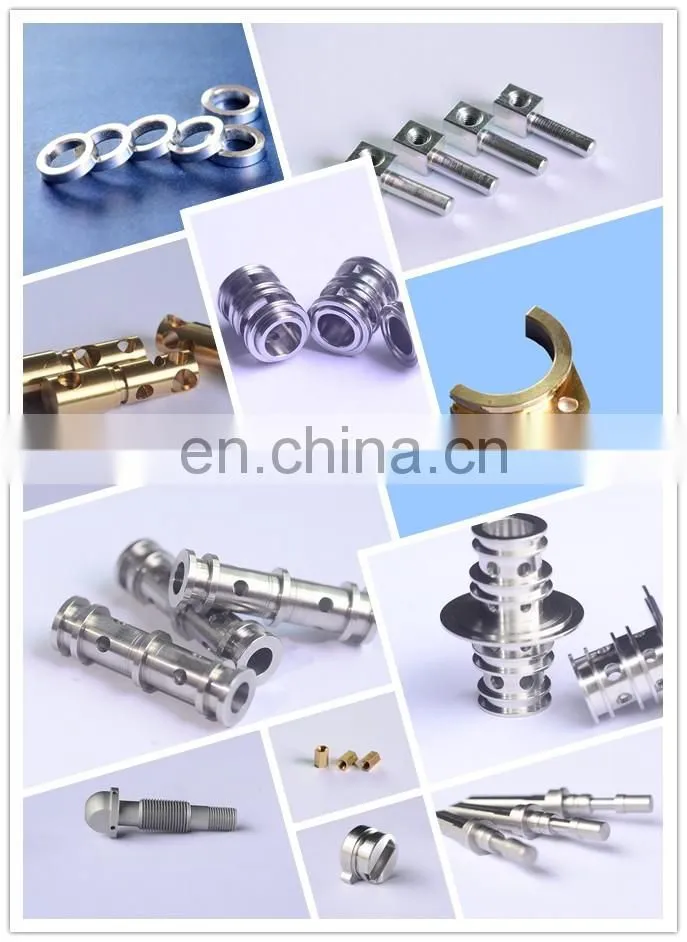

1. It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts.

2. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process .

3. It is suitable for many varieties, medium and small batch production.

4. It can finish the processing of complex, high precision parts .

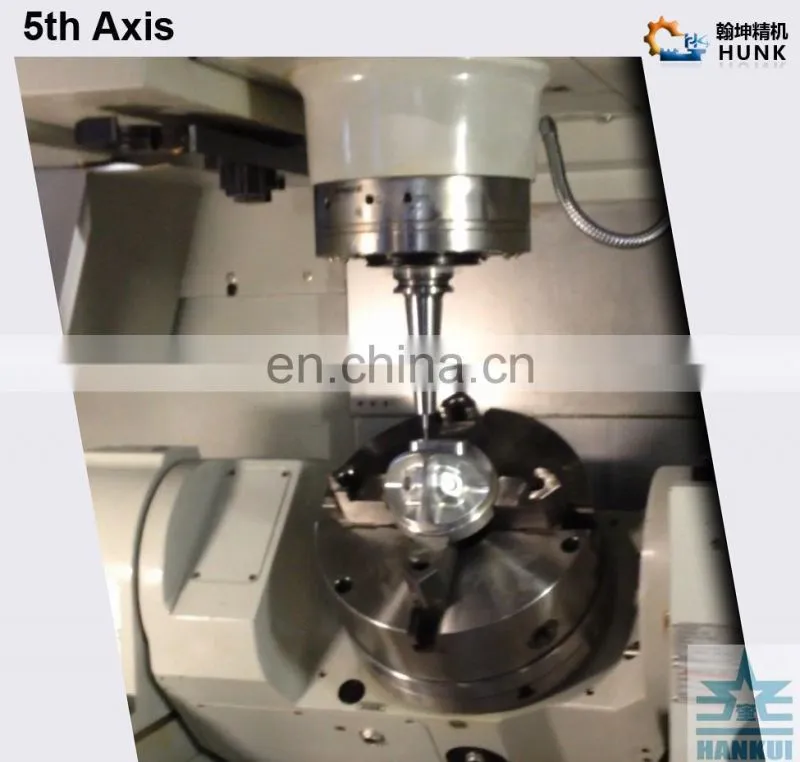

5. It can be matched the four rotary shaft , in order to meet the requirements of special parts.

Main Features

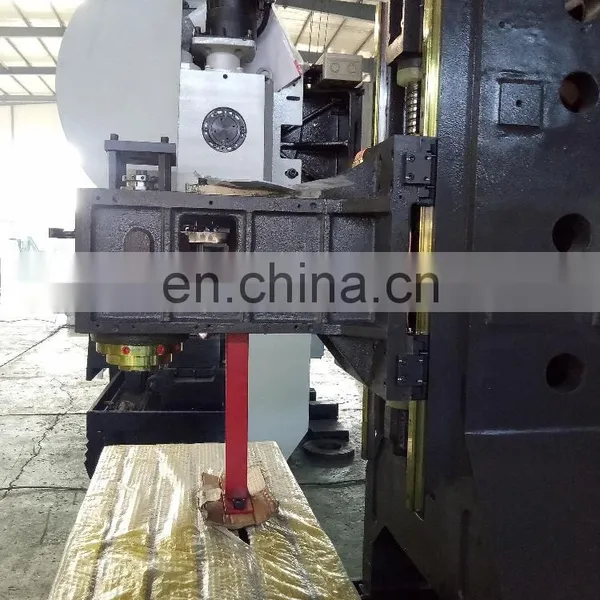

⑴ Base, sliding block, working bench, vertical column, spindle box and other main basic parts adopt HT250 cast iron.

⑵The guide rail of X, Z, Y axis are plastic rectangular guide, fast speed, eliminate intermittent creep, high rigidity, low friction, low noise, low temperature rise.

⑶ Z axis matched with counterweight to keep balance, which ensure the spindle box running smoothly and stable.

⑷The feed of X, Y, Z direction adopts the inner loop preloading large-lead ball screw with double nut so it is of high feed speed.

⑸The spindle unit is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial.

⑹Guide rail and ball screw of X, Y, Z direction are all use protection device to ensure that the screw and the guide is clean and accurate.

⑺The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.

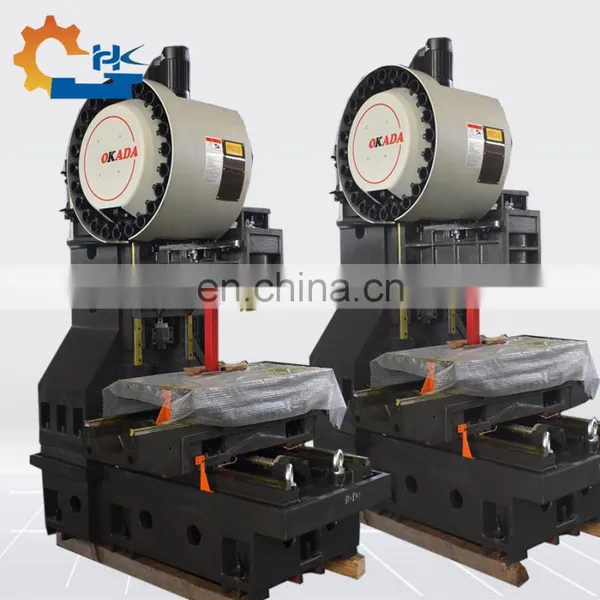

Tool Magazine


The vmc machine matched with 12/16/20/24 tools, umbrella type tool magazine or disc drum type tool magazine, with Taiwan famous brand.

Taiwan Spindle

Taiwan Hiwin Ballscrew & Guideway

Taiwan HIWIN company's heavy load linear ball guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on.

Schneider electric parts

Safety, reliability, long service life.
