VMC 1060 Cnc Machining Center With Automatic Tool Changer

VMC 1060 Cnc Machining Center With Automatic Tool Changer thumbnail-1
VMC 1060 Cnc Machining Center With Automatic Tool Changer thumbnail-2
VMC 1060 Cnc Machining Center With Automatic Tool Changer thumbnail-3
VMC 1060 Cnc Machining Center With Automatic Tool Changer thumbnail-4
VMC 1060 Cnc Machining Center With Automatic Tool Changer thumbnail-5
VMC 1060 Cnc Machining Center With Automatic Tool Changer thumbnail-6

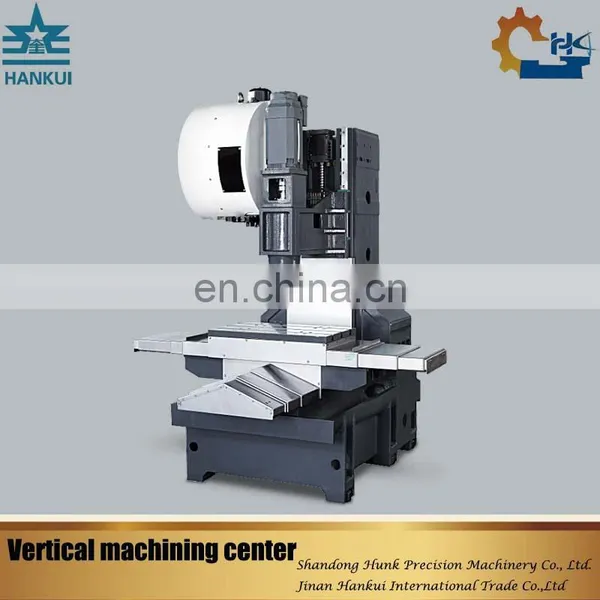

VMC 1060 Cnc Machining Center With Automatic Tool Changer photo-1

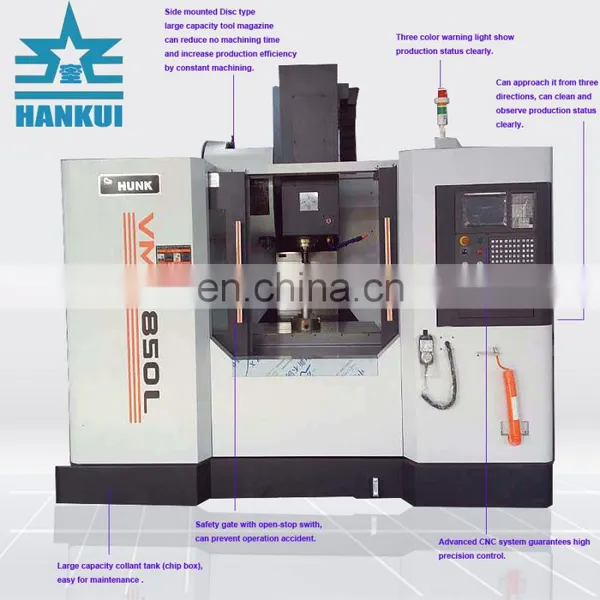

VMC 1060 Cnc Machining Center With Automatic Tool Changer photo-2
VMC 1060 Cnc Machining Center With Automatic Tool Changer photo-3
VMC 1060 Cnc Machining Center With Automatic Tool Changer photo-4
VMC 1060 Cnc Machining Center With Automatic Tool Changer photo-5
VMC 1060 Cnc Machining Center With Automatic Tool Changer photo-6
US$ 40,000 - 55,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
HUNK/OEM
Place of Origin:
Shandong, China
Model Number:
VMC1060L
Contact Supplier Request Quote Chat Now
Turn Mill CNC Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUNK/OEM
Place of Origin Shandong, China
Model Number VMC1060L
Type Vertical
Certification ISO CE SGS
After-sales Service Provided Engineers available to service machinery overseas
Warranty 13 Months
Weight 6500KG
Dimension(L*W*H) 3*2.5*2.9
Voltage Customized
Condition New
Power(W) 11Kw
Product Description

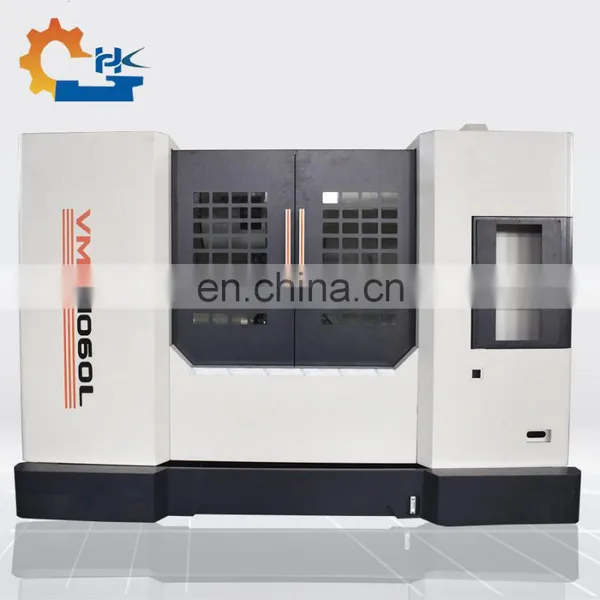

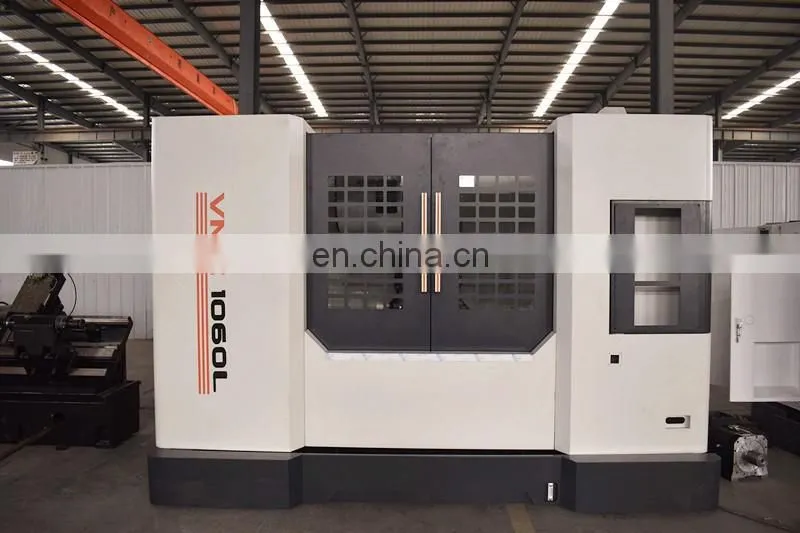

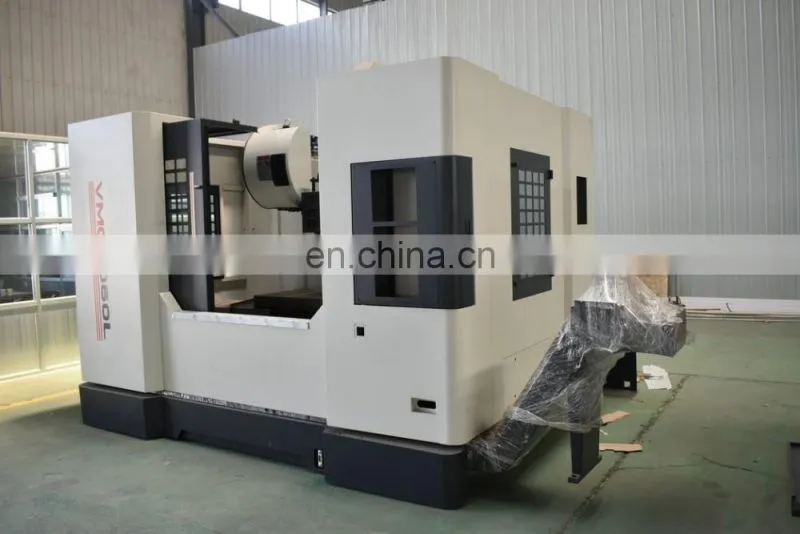

VMC 1060 Cnc Machining Center with Automatic Tool Changer


CNC milling machine VMC1060 is suitable for machining, mold manufacturing and many other fields.



CNC machining center VMC1060 with high precision and high efficiency features, can be adapted the requirements from the rough processing to finish processing, to complete the milling, drilling, boring and other processes.


CNC Machining center VMC1060 widely used in aerospace, military, molds, automobiles, Internal combustion engines, textile machinery, chemicals, petroleum, electronics and other industries machining.

Main Features

⑴ Base, sliding block, working bench, vertical column, spindle box and other main basic parts adopt HT250 cast iron.

⑵The guide rail of X, Z, Y axis are plastic rectangular guide, fast speed, eliminate intermittent creep, high rigidity, low friction, low noise, low temperature rise.

⑶ Z axis matched with counterweight to keep balance, which ensure the spindle box running smoothly and stable.

⑷The feed of X, Y, Z direction adopts the inner loop preloading large-lead ball screw with double nut so it is of high feed speed.

⑸The spindle unit is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial.

⑹Guide rail and ball screw of X, Y, Z direction are all use protection device to ensure that the screw and the guide is clean and accurate.

⑺The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.

Product Application

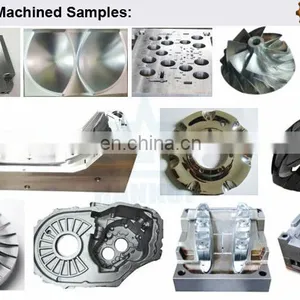

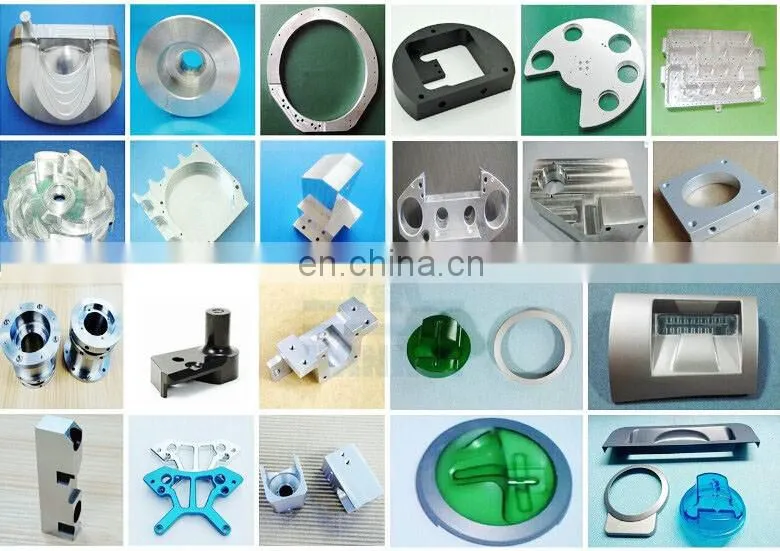

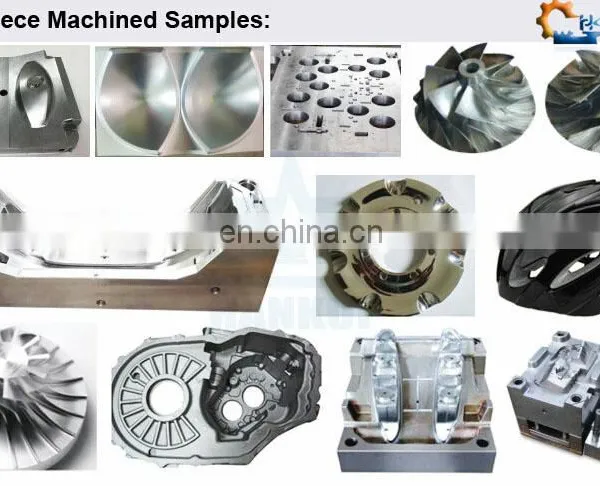

1. It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts.

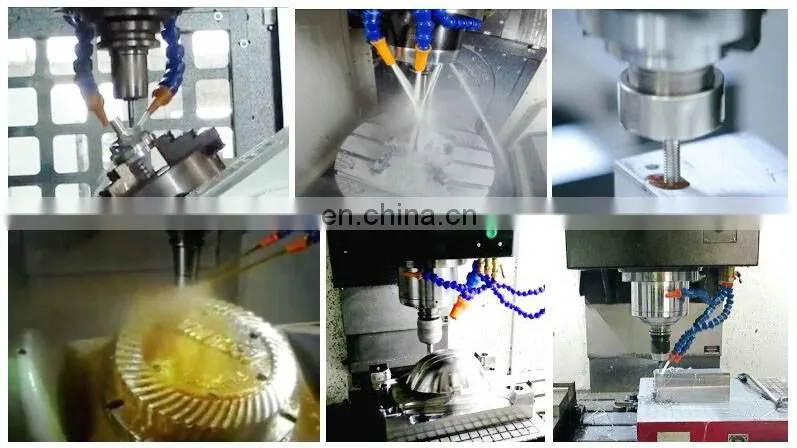

2. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process .

3. It is suitable for many varieties, medium and small batch production.

4. It can finish the processing of complex, high precision parts .

5. It can be matched the four rotary shaft , in order to meet the requirements of special parts.

Detailed Images

Tool Magazine


The vmc machine matched with 12/16/20/24 tools, umbrella type tool magazine or disc drum type tool magazine, with Taiwan famous brand.

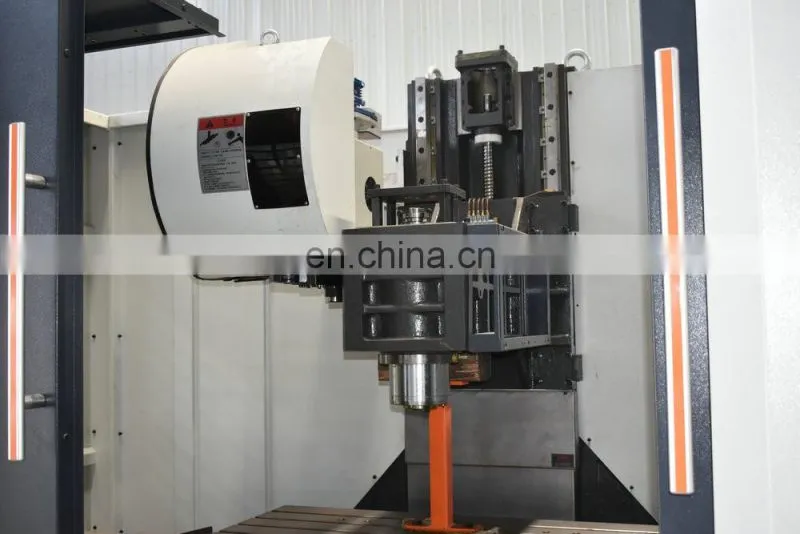

Taiwan Spindle


The spindle unit of the machine tool is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial.

Taiwan Hiwin Ballscrew & Guideway


Taiwan HIWIN company's heavy load linear ball guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on.


Schneider electric parts


Safety, reliability, long service life.

Technical parameter
Item
Unit
VMC1060L
VMC1160L
VMC1270L
VMC1380L
VMC1580L
Table size
mm
1200*600
1200*600
1360*700
1400*800
1700*800
Load capacity
kg
800
800
800
1000
1500
T slot
5-18*90
5-18*100
5-18*122
5-18*140
5-22*135
X axis travel
mm
1000
1100
1200
1300
1500
Y axis travel
mm
600
600
700
800
800
Z axis travel
mm
600
600
600
700
700
Distance from spindle center to table
mm
120-720
120-720
87-687
15-850
13-830
Distance from spindle center to columnslide way
mm
650
650
785
855
810
Tool shank
BT40
BT40
BT40/BT50
BT40-BT50
BT50-155
Spindle speed
RPM
8000
8000
6000/8000
6000/8000
6000/8000
Spindle motor power
KW
11
11
11-15
11/15
11-15
MAX.diameter of tool
mm
80/150
120
120
120
120
MAX,length of tool
mm
300
200
200
200
400
MAX.weight of tool
kg
8
8
8
8
15
X/Y-axis rapid moving speed
mm
36000
36000
24000
30000
16000
Z axis rapid moving speed
mm
36000
36000
18000
30000
20000
Feed rate
mm/min
1-10000
1-10000
20-6000
1-10000
20-5000
Positioning  accuracy
mm
0.01
0.01
0.01
0.01
0.012
Repeated positioning accuracy
mm
0.003
0.005
0.005
0.005
0.006
Out dimension
mm
3000*2500*2900
3200*2500*3200
3300*2800*3200
3400*3100*3610
4500*3200*3600
Weight
kg
6500
6800
8000
12000
13000
Certifications

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.


“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Related Products

VMC850 cnc vertical machining center

91.8% Response Rate

Slant bed cnc lathe

91.8% Response Rate

Flat Bed CNC Lathe

91.8% Response Rate

Packing & Delivery


1. The delivery time depends on different models with different configurations, please contact us to confirm it is in stock or not.

2. All the cnc milling machines will adopt export wooden case to pack.
And put on the plastic cover to wrap around machine parts to enhance corrosion prevention.

3. Steel wire will be used to tighten and strengthen the packages, and extra strengthen with wire ropes, bandages, wedges ect. to avoid packages leaning or moving in container during transportation.

4. FCL or LCL shipping are ok.
