China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L

China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L thumbnail-1
China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L thumbnail-2
China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L thumbnail-3
China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L thumbnail-4
China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L thumbnail-5
China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L thumbnail-6
China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L thumbnail-7
China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L photo-1
China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L photo-2

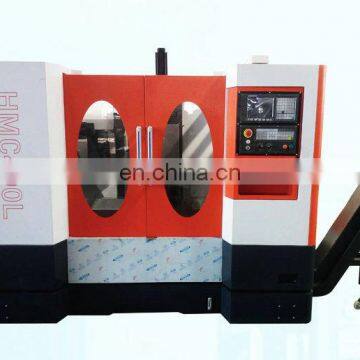

China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L photo-3

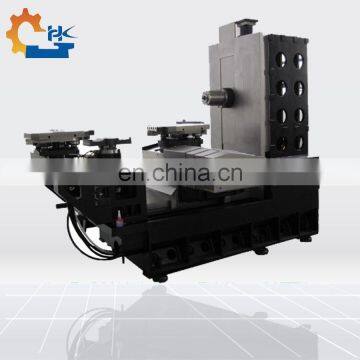

China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L photo-4

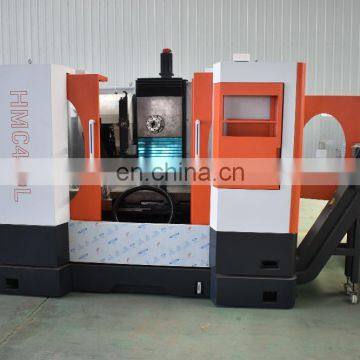

China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L photo-5
China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L photo-6

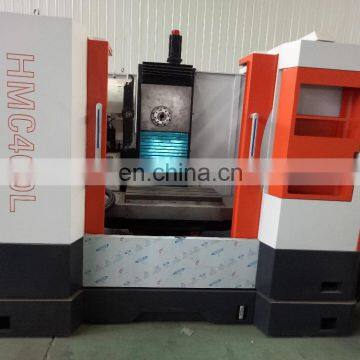

China Cnc Horizontal Milling Machine Table Center With Taiwan Linear Way HMC400L photo-7
US$ 55,500 - 56,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Hunk/OEM
Place of Origin:
Shandong, China
Model Number:
H40
Contact Supplier Request Quote Chat Now
Turn Mill CNC Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hunk/OEM
Place of Origin Shandong, China
Model Number H40
Type Horizontal
Certification ISO9001 CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 13 Months
Weight 4500kg
Dimension(L*W*H) 2600x2250x2400
Voltage Customer's Requirement
Condition New
Power(W) 5.5kw
Product Description

China Cnc Horizontal Milling Machine Table Center with Taiwan Linear Way HMC400L


Product Application:

1. The whole lathe is rigidity, and is convenient and flexible for operation.

2. It can process horizontal milling, drilling, expanding, boring, tapping and so on.

3. It is widely used, especially suitable for processing all kinds of box type parts which are complicated shape.

4. And it is more suitable for the batch processing of the workshop's production of enterprise.

SPECIFICATIONS for CNC Horizontal Machining Center HMC400L
Item
Specification
Unit
HMC400L
Worktable
Worktable Size
mm
500x500
Max. Load Capacity
kg
400
Travel
X-axis travel
mm
650
Y-axis travel
mm
500
Z-axis travel
mm
500

Spindle(Taiwan)
Distance from Spindle Center to Worktable Surface
mm
100~650
Distance from Spindle Nose to Worktable Center
mm
90~590
Spindle Max. Speed
rpm
8000
Tool Shank
BT40
Tool Magazine
Tool magazine
T
24
Ball Screw(Taiwan)
X/Y/Z axis ball screw(dia *lead)
40x12
Rapid Speed
X/Y/Z Rapid Speed
m/min
30
B axis
r/min
10
Positioning Accuracy
X/Y/Z Positioning Accuracy
mm
0.01
B axis
10
Re-positioning Accuracy
X/Y/Z Re-Positioning Accuracy
mm
0.008
B axis
5
Machine Weight & Size
Machine N.w
kg
4500
Dimension
mm
2600x2250x2400

Main Features

1)High rigidity, and long time precision of retention

2)The whole lathe bed, column, workbench, wagen, spindle box and other big parts are all of high quality resin sand molding and high strength cast iron, which make the precision of lathe with high rigidity and long term stability. The interior of lathe is decorated with the triangular stiffener, which can make the lathe bed more stable, so that can make the precision of lathe with high rigidity and stability for a long time

3)The heavy duty roller guide which made in Taiwan has strong rigidity, and good dynamic performance. The imported screw which has large diameter is cooperated with the international advantage lead screw auxiliary support system . It is of compact structure, smooth movement, and high accuracy. So the machine driven system is of high rigidity and high stability.

4)The whole lathe bed which is optimization designed, one-piece inverted, and T type structure has the good rigidity, perfect dynamic characteristics. It is suitable for the heavy cutting, and also has high precision of stability and excellent vibration absorbing ability.

5)The high-performance spindle which made in Taiwan, adopts the lubrication to lubricate, it can make the spindle bearings get constant and reliable lubrication. It is not only environmentally friendly, but also free maintenance, and has the excellent performance.

6)The feed unit adopts the large diameter double nut ball screw, in applying preloaded on both ends, so it can eliminate the precision loss of thermal elongation

Certifications

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.


“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.

Our Company
Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company. We are located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales.

It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
