CNC Milling Machine For Alloy Wheel With Spindle Frame

CNC Milling Machine For Alloy Wheel With Spindle Frame thumbnail-1
CNC Milling Machine For Alloy Wheel With Spindle Frame thumbnail-2
CNC Milling Machine For Alloy Wheel With Spindle Frame thumbnail-3
CNC Milling Machine For Alloy Wheel With Spindle Frame thumbnail-4
CNC Milling Machine For Alloy Wheel With Spindle Frame thumbnail-5
CNC Milling Machine For Alloy Wheel With Spindle Frame thumbnail-6
CNC Milling Machine For Alloy Wheel With Spindle Frame photo-1
CNC Milling Machine For Alloy Wheel With Spindle Frame photo-2

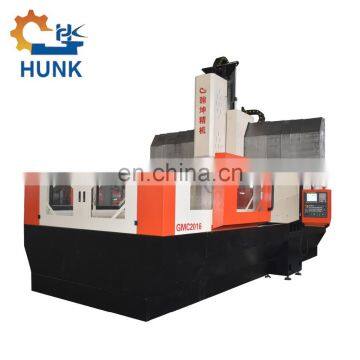

CNC Milling Machine For Alloy Wheel With Spindle Frame photo-3
CNC Milling Machine For Alloy Wheel With Spindle Frame photo-4

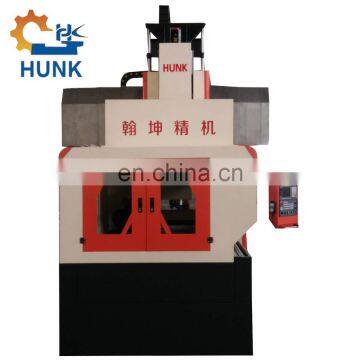

CNC Milling Machine For Alloy Wheel With Spindle Frame photo-5

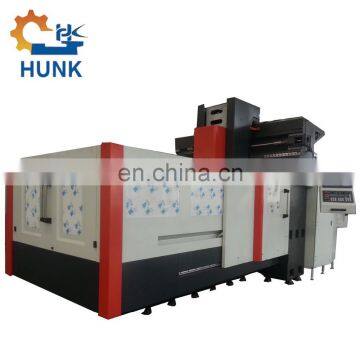

CNC Milling Machine For Alloy Wheel With Spindle Frame photo-6
US$ 126,700 - 256,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HUNK
Place of Origin:
Shandong, China
Model Number:
GMC
Contact Supplier Request Quote Chat Now
Turn Mill CNC Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUNK
Place of Origin Shandong, China
Model Number GMC
Type Gantry
Certification ISO9001 CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 10T-28T
Dimension(L*W*H) Based on detailed models
Voltage 380V 50HZ /220V 60 HZ /etc
Condition New
Power(W) 11/15/20 KW
Product Description

Product Application

Mold,Metal parts accessories processing and related parts machining

Technical parameter
Item
Unit
GMC1090G
GMC1210
GMC1513
GMC2016
GMC2518
GMC3022
Table size
mm
900*1000
1200*900
1500*1000
2000*1300
2500*1600
3000*2000
T slot
4-22-100
4-22-150
5-22-150
7-22-150
8-22-150
9-22-180
Max. Load
kg
1000
2000
3000
4000
5000
6000
X axis travel
mm
900
1200
1500
2000
2500
3000
Y axis travel
mm
1000
1000
1200
1600
1800
2200
Z axis travel
mm
650
800
800
800
1000
1000
Distance from spindle nose to table
mm
50-650
50-850
50-850
50-970(200/250/300)
250-1250
250-1250
Distance between two column
mm
1100
1100
1300
1650
1800
2200
Spindle speed
r/min
15000
6000
6000
6000
6000
6000
Spindle tapper
Hvct(Electric Spindle),BT30
BT40/BT50
BT50
BT50
BT50
BT50
Spindle motor power
KW
5.5
11
15
18.5
22
22
X/Y-axis rapid travel speed
m/min
30
20
20
20
20
20
Z axis rapid moving speed
m/min
20
15
15
15
15
15
Cutting feed
mm/min
5-15000
5-8000
5-8000
5-8000
5-8000
5-8000
Guide way
X/Y/Z linear guide way
X/Y/Z Positioning  accuracy
mm
0.015
0.022
0.022
0.022
0.022
0.022
X/Y/Z Re-positioning accuracy
mm
0.010
0.012
0.012
0.012
0.012
0.012
Tool magazine
16
24
24
24
24
24
Max. diameter/length
mm
φ30/80
φ200/350
φ200/350
φ250/400
φ300/500
φ300/500
Tool max. weight
kg
8
15
15
15
15
15
Machine N.w
t
8
13
16
22
26
30
L*W*H
mm
2500*2300*2500
4500*2600*3600
4500*3000*3700
5500*3500
6500*4000
7500*4500
Our Company-1

Shandong Hunk Precision Machinery Co.,Ltd
   Shandong Hunk Precision Machinery Co.,Ltd, is a CNC machine tools factory, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees.The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

Our certification

We are the Vice President of Shandong International Business Union

Our certification including CE, IQNET, SGS, ISO

Our insurance

   All the machine have 13 month insurance. In warranty period , if the machine appear quality problem of non human , the seller will sent the engineer to the buyer’s country . The seller afford the plane ticket and the buyer provide food , lodging and the translator.

Packing & Delivery
Our Service

Pre-sale service

Factory view

Professional suggestions

Free consult

After-sale service

Technology support

Engineer overseas direction

All life service gurrantee
