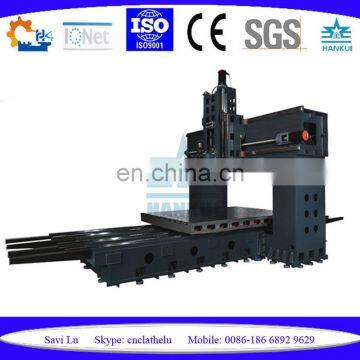

Taiwan Spindle VMC Fanuc Cnc Milling Machine Centre Price List GMC1513 photo-3

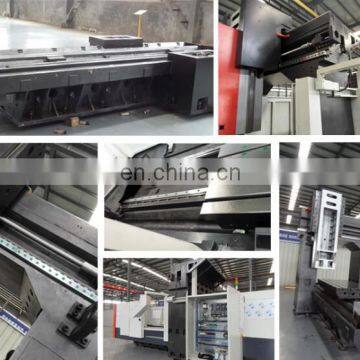

Taiwan Spindle VMC Fanuc Cnc Milling Machine Centre Price List GMC1513 photo-4

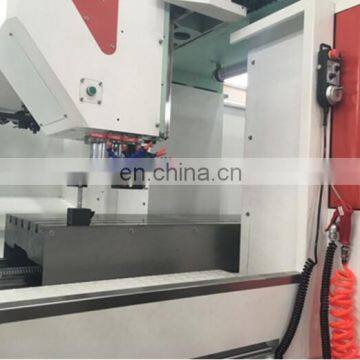

Taiwan Spindle VMC Fanuc Cnc Milling Machine Centre Price List GMC1513 photo-5

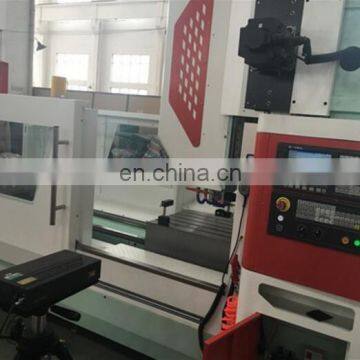

Taiwan Spindle VMC Fanuc Cnc Milling Machine Centre Price List GMC1513 photo-6

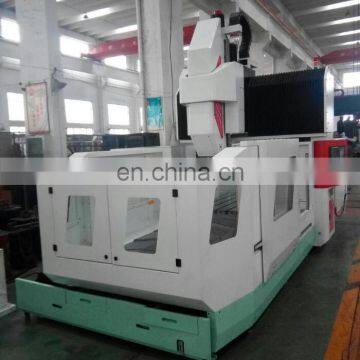

Taiwan Spindle VMC Fanuc Cnc Milling Machine Centre Price List GMC1513 photo-7
US$ 86,000 - 96,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
HUNK/OEM
Place of Origin:
Shandong, China
Model Number:
GMC1513
Contact Supplier Request Quote Chat Now
Turn Mill CNC Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUNK/OEM
Place of Origin Shandong, China
Model Number GMC1513
Type Gantry
Certification ISO CE SGS
After-sales Service Provided Engineers available to service machinery overseas
Warranty 13 Months
Weight 16ton
Dimension(L*W*H) 4500*3000*3700
Voltage Customer's Requirement
Condition New
Power(W) 15kw
Product Description

Taiwan Spindle VMC Fanuc Cnc Milling Machine Centre Price List GMC1513

1. The gantry machining lathe is a kind of gantry frame type machining center with fixed beam and removable workbench.

2. On the basics of strong rigidity and good stability of traditional gantry, it absorbs the advanced design concept.

3. By using the methods of finite element to analyze mechanics, and distribute the rebar and mass reasonably, it can make the whole lathe’s rigidity strong and make static precision and dynamic performance stable and reliable.

4. It is of the advanced level among similar lathe, and it is a kind of advanced equipment with high efficiency, high precision and high reliability.

5. The structure and technology of lathe is maturity, it’s quality is stable, and it can process the milling, drilling, boring, reaming and tapping of parts precisely and efficiently.

6. It can also realize clamping parts all at once, and can finish the parts processing of top, forward, backward, left, and right side, which especially adapt to the processing of parts, mould, and complex surface.

7. It is widely used in general machinery, aviation, aerospace, automotive, nuclear industry, energy, mould, locomotive, heavy duty machine, engineering machinery, ships, machine tools, electronics, printing, textile and other manufacturing industries.

Technical parameter
Item
Unit
GMC1090G
GMC1210
GMC1513
GMC2016
GMC2518
GMC3022
Table size
mm
900*1000
1200*900
1500*1000
2000*1300
2500*1600
3000*2000
T slot
4-22-100
4-22-150
5-22-150
7-22-150
8-22-150
9-22-180
Max. Load
kg
1000
2000
3000
4000
5000
6000
X axis travel
mm
900
1200
1500
2000
2500
3000
Y axis travel
mm
1000
1000
1200
1600
1800
2200
Z axis travel
mm
650
800
800
800
1000
1000
Distance from spindle nose to table
mm
50-650
50-850
50-850
50-970(200/250/300)
250-1250
250-1250
Distance between two column
mm
1100
1100
1300
1650
1800
2200
Spindle speed
r/min
15000
6000
6000
6000
6000
6000
Spindle tapper
Hvct(Electric Spindle),BT30
BT40/BT50
BT50
BT50
BT50
BT50
Spindle motor power
KW
5.5
11
15
18.5
22
22
X/Y-axis rapid travel speed
m/min
30
20
20
20
20
20
Z axis rapid moving speed
m/min
20
15
15
15
15
15
Cutting feed
mm/min
5-15000
5-8000
5-8000
5-8000
5-8000
5-8000
Guide way
X/Y/Z linear guide way
X/Y/Z Positioning  accuracy
mm
0.015
0.022
0.022
0.022
0.022
0.022
X/Y/Z Re-positioning accuracy
mm
0.010
0.012
0.012
0.012
0.012
0.012
Tool magazine
16
24
24
24
24
24
Max. diameter/length
mm
φ30/80
φ200/350
φ200/350
φ250/400
φ300/500
φ300/500
Tool max. weight
kg
8
15
15
15
15
15
Machine N.w
t
8
13
16
22
26
30
L*W*H
mm
2500*2300*2500
4500*2600*3600
4500*3000*3700
5500*3500
6500*4000
7500*4500
Related Products

VMC850 cnc vertical machining center

91.8% Response Rate

Slant bed cnc lathe

91.8% Response Rate

Flat Bed CNC Lathe

91.8% Response Rate

Our Company
Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company.

We are located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales.

It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters.

We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Certifications

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.


“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
