TPX6216-4 floor type horizontal boring machine/horizontal milling machine for sale
- 100 Set / Sets per Month
- Dalian Chian
- T/T Credit Card
- TPX6216-2 floor type horizontal boring machine/horizontal borer for sale
- TPX6216E dro horizontal boring machine/horizontal borer
- TPX6216E/1 floor type horizontal boring machine
- TPX6216E/2 dro horizontal boring machine
- TPX6216E/3 floor type boring milling machine
- TPX6216E/4 horizontal boring milling machine
Product Details
Brand Name: | LFM | Place of Origin: | Liaoning, China | Model Number: | TPX6216-4 floor type horizontal boring machine |
Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 80 tons |
Dimension(L*W*H): | 10500x8820x6500mm | Production Capacity: | 100% | Voltage: | Customer's Requirement |
Condition: | New | Power(W): | 30kW | CNC or Not: | Normal |
Product Description

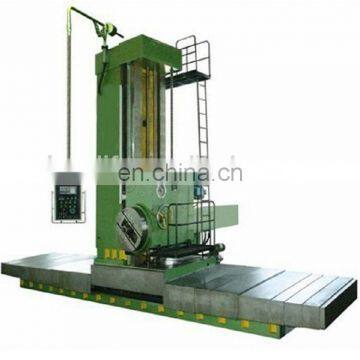

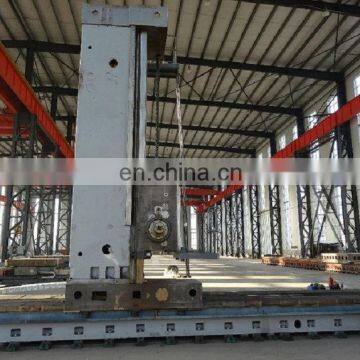

TPX6216-4 floor type horizontal boring milling machine
TPX6216 floor-type horizontal boring machine can be adapted to machine casting, steel, and nonferrous word- places. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
Spindle is stepless speed, 4 steps speed-change by mechanical shift, 2 steps feed by mechanical shift, box ways and facing head is balanced reducing type.
Specifications | Unit | Parameter |
Spindle bore diameter |
| Φ160 |
Spindle taper |
| Metric 80# |
Spindle speed (stepless) | r/min | 1.8~500 |
Range of spindle speed | mm/min | 0.45~1500 |
Travel of spindle (Z - axis travel) | mm | 1200 |
Between spindle center and table surface | mm | Max.2600 Min.600 |
Max. spindle axial thrust | N | 39200 |
Max, spindle torque | Nm | 4900 |
Travel of headstock (Y - axis travel) | mm | 3000 |
Feed range (stepless) | mm/min | 5~1500 |
Travel of front column(X - axis travel) | mm | 6000 |
Maximum loading capacity | t/m2 | 15 |
Power of main motor | kW | 30 |
Feed motor power | kW | 7.5 |
Overall dimensions (LxWxH) | mm | 10500x8820x6500 |
Weight of machine | t | 80 |
S.N | Name | Q’ty | Note |
1 | Cushion Block | 26 pcs |
|
2 | ...... | ||
3 | ...... | ||
4 | ...... | ||
5 | Tube for installing balancing hammer | 1 pc |
|
6 | Direction key | 1 pc |
|
7 | Instruction Manual (Mechanical) | 1 pc |
|
8 | Instruction Manual (Electrical) | 1 |
|
9 | Certificate of inspection | 1 |
|
10 | Packing List | 1 |
|
11 | Catalogue of spare parts | 1 |
|
Pls send inquiry to me for optioanl accessories and other further information about such floor type horizontal boring machine.
Payment Term:
1. 30% down payment, 70% by T/T before shipment;
2. 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
1. 1 Set;
2. ≥2 sets, there will be much discounts.
Warranty:
1. Normally, 12 months for parts as of delivery of the machines;
Shipment:
1. For machine itself, by sea or train(inland countries).
2. For documents, by international express. eg DHL, TNT or EMS.
