Help CenterRotary Kiln for Metallurgical Limestone and Heavy Industry
Related Products
-
Cement Quick Lime Ceramic Sand Production Plant Use Ceramic Sand KilnNegotiableMOQ: 1 Set -
High Efficient Wet or Dry Process Cement Rotary Kiln for Cement PlantNegotiableMOQ: 1 Set
-
4x60m Rotary Kiln Used in Cement/clinker Production LineNegotiableMOQ: 1 Set
-
TBM Company Light Expended Clay Aggregate (LECA) Production LineUS$ 1300 - 5000MOQ: 1 Set
-
Small Rotary Kiln for Calcined DolomiteUS$ 15000 - 67000MOQ: 1 Set

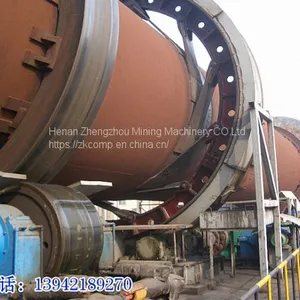

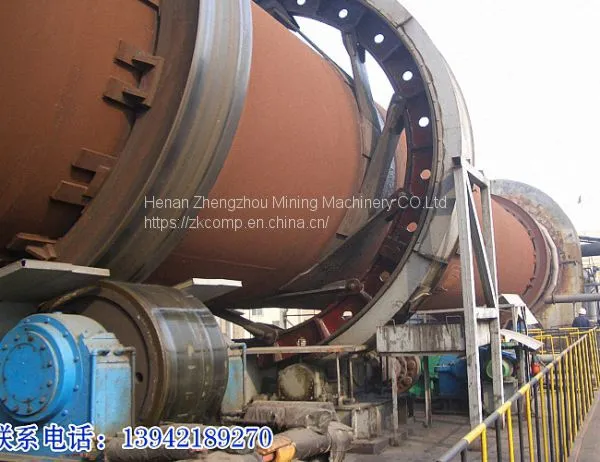

The rotary kiln is central equipment for cement clinkering system in the new large dry processing cement production, which can be used with unit-or-twin-stream preheater, calcining combustor. 90%-95% of the raw material which has been pre-calcined feeds into the slow rotating, inclining installed rotary kiln from the rear. Under the composite effect of circumferential tilting and axial movement, the material slowly flows through the whole drum, the fuel (coal dust, oil or natural gas) sprays from kiln head into high temperature zone for burning, which produces the required heat for physical and chemical reaction of combination and crystallization of material inside the kiln. Under the function of rear blower, the burning gas stream and material counter flow the whole kiln, completing heat exchange and physical/chemical reaction. The clinkered cement is discharge to the cooler.
Main feature
1) The kiln body is made of high-quality killed carbon steel or alloy steel plate and welded;
2) The supporting type and rollers is of ZG35CrMo and 42CrMo steel;
3) The sliding bearing is of non-scraping liner one with large clearance;
4) The driving device adopts hard-toothed reducer, flexible sheet coupling, driven by DC motor;
5) Hydraulic thrust roll is used;
6) The kiln head and rear seal is of pneumatic or scaled type;
7) With slow speed drive.
