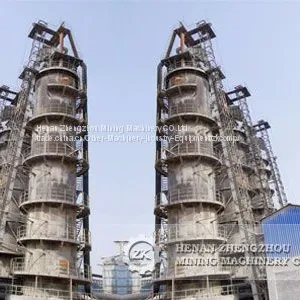

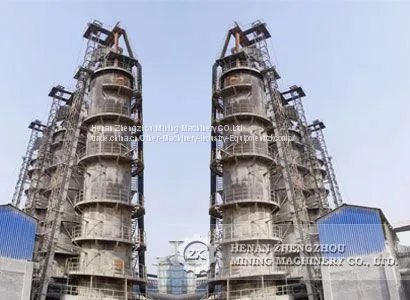

Help CenterNew Generation Vertical Limestone Kiln for Steel Plant
Related Products
-
Vertical Rotary Cooler for GypsumUS$ 13600 - 89000MOQ: 1 Set -
600tpd Active Lime Production Line EquipmentUS$ 13600 - 89000MOQ: 1 Set
-
Rotary Kiln for Calcine Lime, Mg, BauxiteUS$ 13600 - 89000MOQ: 1 Set
-
Quick Lime Production Line With Best PriceUS$ 13600 - 89000MOQ: 1 Set
-
Clinker Cement Kiln for SaleUS$ 1600 - 36000MOQ: 1 Set
Vertical Kiln is building material equipment, is the main equipment for sintering cement clinker in cement production plant, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.Lime Vertical Shaft Kiln is used in the most important equipment in lime production line.
| Lime Kiln Basic Parameter | ||||||
| Number | Parameter | Units | 400T | 300T | 200T | 100T |
| 1 | Inner diameter | Meter | 5.3 | 5.3 | 4.8 | 3.6 |
| 2 | Outer diameter | Meter | 8 | 8 | 7.2 | 6 |
| 3 | Effective height | Meter | 34.5 | 30 | 30 | 24 |
| 4 | Kiln total height | Meter | 42.8 | 38.3 | 39.8 | 32.3 |
| 5 | Blower | KW | 130 | 110 | 75 | 55 |
| 6 | Total Power | KW | 283.5 | 260.5 | 206.5 | 186.5 |
| 7 | Efficient Power | KW | 150 | 130 | 120 | 90 |
Technical Economic Indicators
Number |
Item |
Technical Parameter |
01 |
Kiln Total Height |
36-46M (According To The Output) |
02 |
Kiln Effective Height |
20-30M (According To The Output) |
03 |
Kiln Outer Diameter |
6-8M (According ToThe Output) |
04 |
Kiln Inner Diameter |
4-6M (According To The Output) |
05 |
Area |
2000-3000m2 |
06 |
Output Capacity |
100-280 tons |
07 |
Kiln Volume |
450m³ |
08 |
Limestone Particle Size |
40-80mm |
09 |
Limestone Calcine Temperature |
1050-1150°C |
10 |
Lime Discharging Temperature |
40-80°C |
11 |
Lime Calcine Cycle |
Circulating |
12 |
Availability Of Lime |
280-320ml |
13 |
Calcium Oxide Contents |
80-95% |
14 |
Defective Lime Rate |
|
15 |
Control System |
PLC Control |
16 |
Monitor System |
24 Hours Monitor |
17 |
Desulphurization Rate |
95% |
18 |
Environmental standard |
National Secondary Standard |
19 |
Lime Discharging Type |
All Sides Discharge |
20 |
Power |
120-140KW |
21 |
Construction Period |
100-120 Working Days |
