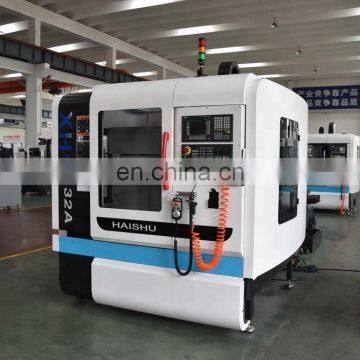

Vertical Machining Center XH7132A designed and manufactured by HAISHU Machinery is the 3 axis CNC machining center. Our CNC vertical machining center XH7132A is equipped with famous brand rectangular guide ways and high accuracy ball screw, the design spindle speed range is 40~6000rpm, the rapid feed speed is up to 24m/min. The totally enclosed protection device is adopted which assures the safety of worker and lustration of environment. Our vertical CNC machining center XH7132A is the ideal equipment for such industries as machinery, electron, instrument, instrument, mould and automobile etc.
Vertical Machining Center XH7132A Specifications
| No | Item | Unit | Specifications |
|---|---|---|---|
| 1 | Table travel(X,Y,Z) | mm | 620×350×500 |
| 2 | Table size | mm | 920×320 |
| 3 | Number/Width/Distance of T-slot | mm | 3-14-85 |
| 4 | Distance from spindle nose to table surface | mm | 100~600 |
| 5 | Distance from spindle center to column guideway | mm | 420 |
| 6 | Taper of spindle | m/min | BT40 |
| 7 | Spindle speed range | r/m | 40-6000rpm |
| 8 | Spindle motor power | kw | Servo 5.5 |
| 9 | Rapid feed speed(X,Y,Z) | m/min | 24/24/18 |
| 10 | Feed speed (X,Y,Z) | mm/min | 2.5~6000 |
| 11 | Tool magazine capability | 16 | |
| 12 | Max. size of tool | mm | φ120×200 |
| 13 | Max. Weight of tool | kg | 8 |
| 14 | Positioning accuracy | mm | ±0.005 JIS |
| 15 | Repeat positioning accuracy | mm | ±0.003 JIS |
| 16 | Overall dimension | mm | 2020×1970×2160 |
| 17 | Machine weight | kg | 3200 |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
standard exported wooden case
