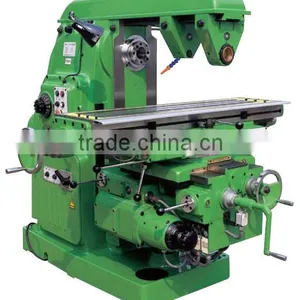

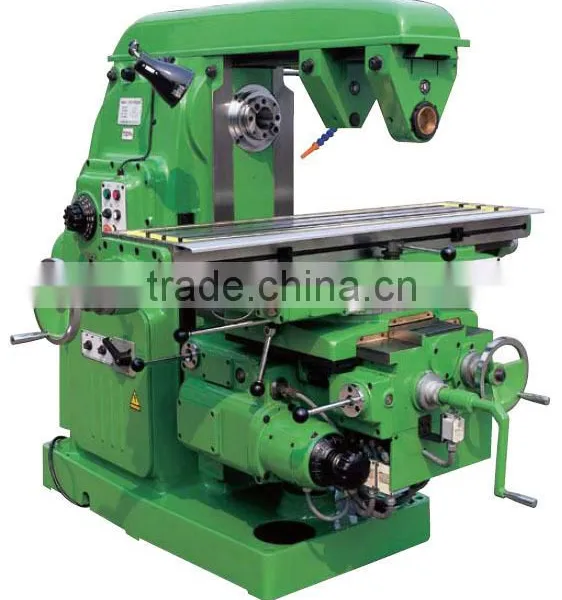

X6132 Milling Machine Universal Functions
US$ 15,000 - 85,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HAISHU
Place of Origin:
Shandong, China
Model Number:
X6132
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Milling Lathe Machine XH7132US$ 15,000 - 18,000MOQ: 1 Unit -
XK7132A Small CNC Milling Machine/mini Cnc Milling Machine/cnc Milling Machine 5 AxisUS$ 15,000 - 18,000MOQ: 1 Unit
-
China High Precision Cnc Milling Machines Specifications Price VM850US$ 30,000 - 200,000MOQ: 1 Set
-
VM850 China Large Cnc Milling Machine Specification With Low Price High QualityUS$ 30,000 - 200,000MOQ: 1 Set
-
Cnc Mini Milling Machine Tools Low Cost Cnc Milling Machine XK7125US$ 15,000 - 18,000MOQ: 1 Unit
Brand Name
HAISHU
Place of Origin
Shandong, China
Model Number
X6132
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
x6132 milling machine universal functions
Universal knee-type milling machine
NO. |
Item |
Units |
Specifications |
1 |
Table size |
mm |
1320×320 |
2 |
Number/Width/Distance of T-slot |
mm |
3-18-70 |
3 |
Max. load of table |
kg |
500 |
4 |
Longitudinal travel (manual/auto) |
mm |
700/680 |
5 |
Transverse travel (manual/auto) |
mm |
255/240 |
6 |
Vertical travel (manual/auto) |
mm |
320/300 |
7 |
Cutting feed speed |
mm/min |
X,Y: 23.5-1180, Z: 8-394 |
8 |
Rapid feed speed |
mm/min |
X: 2300, Y: 2300, Z: 770 |
9 |
Spindle speed range |
rpm |
30-1500 |
10 |
Spindle speed step |
steps |
18 |
11 |
Distance from spindle axis to table surface |
mm |
30/350 |
12 |
Spindle motor power |
kw |
7.5 |
13 |
Overall dimension |
mm |
2294×1770×1665 |
14 |
Machine weight |
kg |
2650 |
