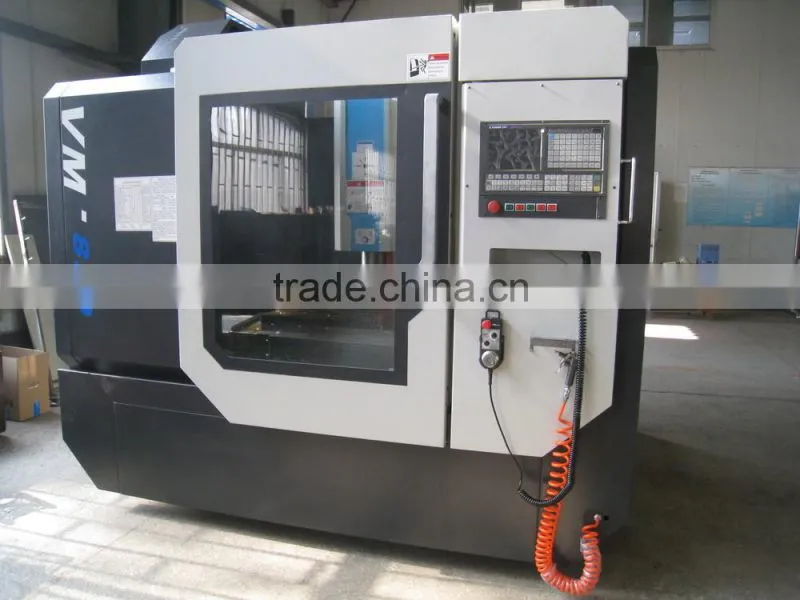

China High Precision cnc milling machines specifications Price VM850
- 90 Set / Sets per Month
- Qingdao
- T/T Credit Card
- VM850 china large cnc milling machine specification with low price high quality
- cnc mini milling machine tools low cost cnc milling machine XK7125
- cnc milling machine price low cost ,china cnc milling machine XK7125
- cnc milling machine for metal low cost cnc milling machine XK7125
- VM850 hot sale precision vertical china cnc milling machine
- VM850 linear guide rail siemens 4 axis cnc milling machine
Product Details
Brand Name: | HaiShu | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Packaging Details
standard exported package,Fumigation-free packing
Product Description
China High Precision cnc milling machines specifications Price VM850
Product Description
1. Specifications
VM850
Specifications | Units | VM850 |
Table travel (X,Y,Z) | mm | 800×500×500 |
Table size | mm | 1000*500 |
Number/Width/Distance of T-slot | mm | 5-18-100 |
Max. load of table | kg | 500 |
Distance from spindle nose to table surface | mm | 150-650 |
Distance from spindle axis to column guideway | mm | 560 |
Rapid feed speed | m/min | 18/16/16 |
Feed speed | mm/min | 2-4000 |
Taper of spindle |
| BT40 |
Spindle speed range | rpm | 40-6000 |
Spindle motor power | kW | AC servo 7.5 |
Positioning accuracy | mm | ±0.02 |
Repeat positioning accuracy | mm | ±0.01 |
Overall dimension | mm | 2450×2200×2300 |
Machine weight | kg | 4650 |
Standard configurations:
GSK/KND2000M/HUAZHONG 22M Siemens 808D controller system
bearing:NSK 8000rpm speed
strong current:Schneider
RS232 communication interface
Large flow cooling pump
Hardened rail
Ball screw: Taiwan's precision ball screw.
protection: full outer stainless steel inner defense and protection.
Optional:
FANUC 0i mateMD or Siemens 828D.
Geneva Type tool changer mechanical arm tool changers
Forth axis
Auto chip conveyor
3.machine’s working condition and others
Voltage:380V±10% 50Hz±1%
Temperature:-10 ~ 40°C humidity:≤80% air pressure:0.6Mpa
Machine lubricating oil: summer 32# winter 40#
Taian Haishu Machinery CO.,LTD
welcome to our company----------Taian Haishu Machinery CO.,LTD in China
Company Profile
All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
