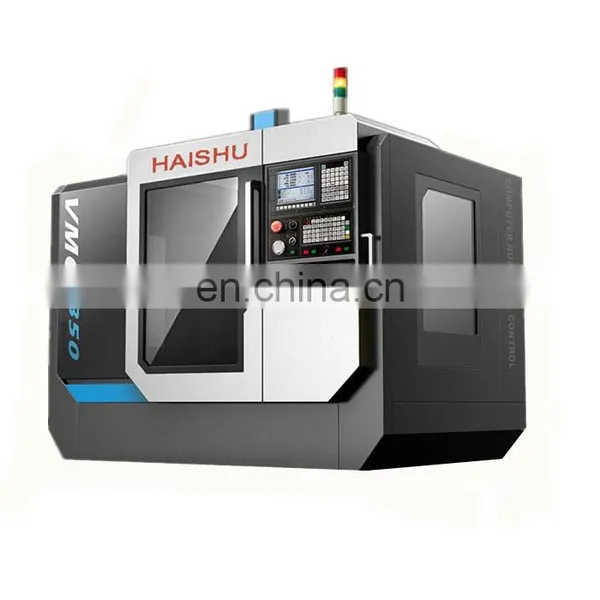

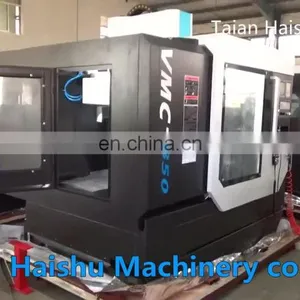

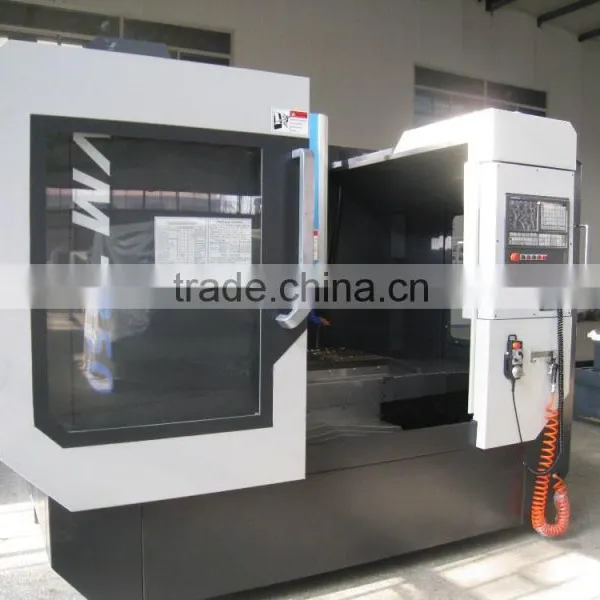

VMC850 high precision vertical types cnc milling lathe machine centre
1. Specifications
VM850
Specifications | Units | VM850 |
Table travel (X,Y,Z) | mm | 800×500×500 |
Table size | mm | 1000*500 |
Number/Width/Distance of T-slot | mm | 5-18-100 |
Max. load of table | kg | 500 |
Distance from spindle nose to table surface | mm | 150-650 |
Distance from spindle axis to column guideway | mm | 560 |
Rapid feed speed | m/min | 18/16/16 |
Feed speed | mm/min | 2-4000 |
Taper of spindle |
| BT40 |
Spindle speed range | rpm | 40-6000 |
Spindle motor power | kW | AC servo 7.5 |
Positioning accuracy | mm | ±0.02 |
Repeat positioning accuracy | mm | ±0.01 |
Overall dimension | mm | 2450×2200×2300 |
Machine weight | kg | 4650 |
Standard configurations:

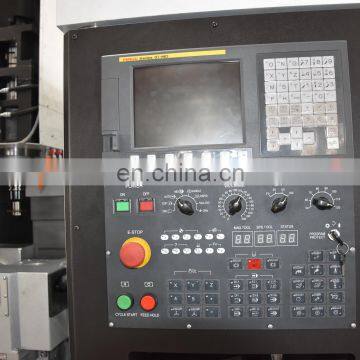

GSK/KND2000M/HUAZHONG 22M Siemens 808D controller system
bearing:NSK 8000rpm speed
strong current:Schneider
RS232 communication interface
Large flow cooling pump
Hardened rail
Ball screw: Taiwan's precision ball screw.
protection: full outer stainless steel inner defense and protection.
Optional:

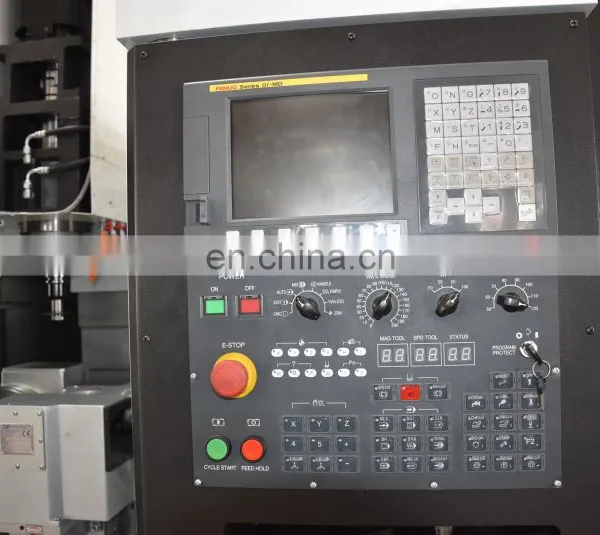

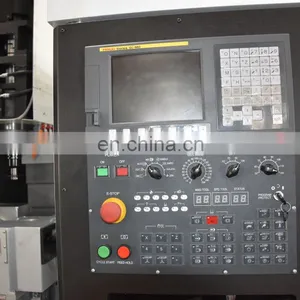

FANUC 0i mateMD or Siemens 828D.
Geneva Type tool changer mechanical arm tool changers

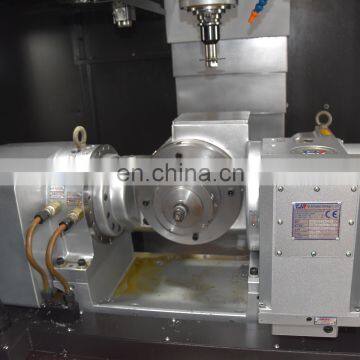

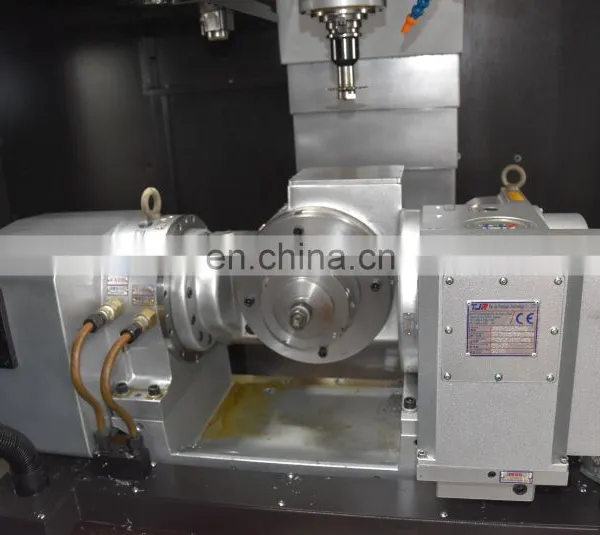

Forth axis
Auto chip conveyor
3.machine’s working condition and others
Voltage:380V±10% 50Hz±1%
Temperature:-10 ~ 40°C humidity:≤80% air pressure:0.6Mpa
Machine lubricating oil: summer 32# winter 40#
Taian Haishu Machinery CO.,LTD
welcome to our company----------Taian Haishu Machinery CO.,LTD in China
